Haltech Elite 2500 + Toyota 2JZ IGN-1A Terminated Harness Kit
Brand: Haltech
Part Number: HT-151355
Description:
ECU OVERVIEW Elite 2500 is a two-connector, stand-alone ECU ideal for popular late model performance and racing applications.
FREE Haltech IAT sensor kit included with every Haltech ECU purchased from Stealth Ride.
Suits
- VVT-i and non VVT-i engines. Manual transmission only.
What's in the Box

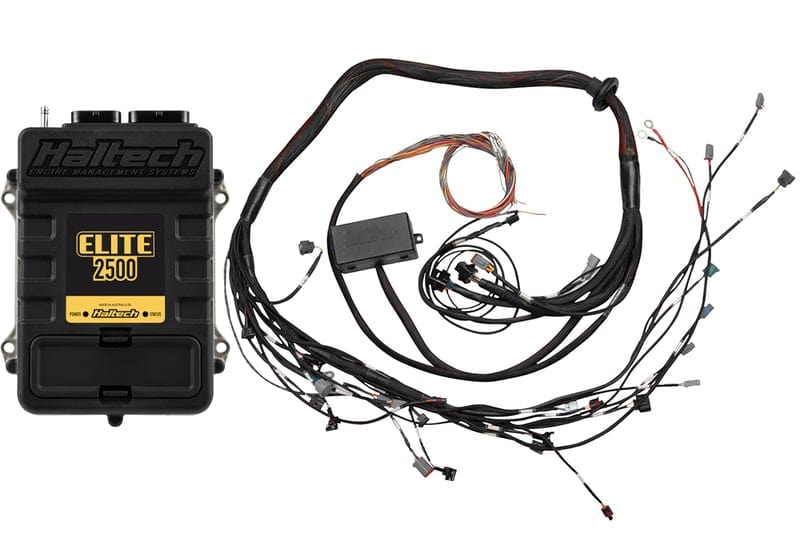

- Elite 2500 ECU with DBW and Race Functions. engine harness with fuse block, firewall grommet, pre-wired high output IGN-1A inductive coil (with built-in ignitor) ignition harness, USB programming cable.
Specifications
-
Analog Voltage Inputs (AVI): 10
-
Differential Engine Position Inputs: 2 (Trigger and Home)
-
Digital Pulsed Inputs (DPI): 0
-
Synchronized Pulsed Inputs (SPI): 4
-
Knock Sensor Inputs: 2
-
On-board Wideband Controller: NO
-
Injection: 8 (peak and hold)
-
Ignition: 8
-
Ignition Switch Input: 1
-
Engine Control Relay output: 1
-
Total Digital Pulsed Outputs (DPO): 5
-
Half Bridge Outputs (HBO): 4 Stepper 2 DBW
-
On-Board PDM: NO
-
25A High Current Outputs (HCO): 0
-
CAN Bus Networks: 2
-
MAP sensor: Internal (4 BAR)
-
Inertia / G-Sensor: NO
-
USB 2.0: USB-B
-
Low Power Up via Cable: NO
-
Wi-Fi: NO
-
Compatible with Haltech Connect App: NO
-
Anti-Lag/Rotational Idle: YES
-
Boost Control: 4D Closed Loop
-
Closed Loop O2 Control: Dual
-
CO2 Control: YES
-
Drive-By-Wire Throttle: Single
-
Engine Protection: Multi-Level
-
Flat Shift Support: Advanced
-
Flex Fuel: YES
-
Intake Air Bleed Control: YES
-
Knock Control: Dual
-
Launch Control: YES
-
Long Term Learning: Up to 4D
-
Nitrous Control Stages: Up to 6
-
Race Timer: YES
-
Rolling Anti-Lag: YES
-
Shock Travel & Ride Height: YES
-
Torque Management (Driveshaft and Engine RPM Targeting): NO
-
Traction Control: YES
-
Trans Brake: YES
-
Tuning Table Resolution: 32x32x8 4D
-
Variable Cam Control: Up to 4
-
Onboard storage: 8MB
Notes
If your engine is fitted with the factory electronic ETCS-i throttle body it will require a "Throttle Convert Kit" or conversion to a cable operated mechanical throttle body. IGN-1A coils are NOT included. Please order 6 x HT-020114 if required.
