Haltech Elite 2500 + Toyota LandCruiser 80 Series Plug'n'Play Adaptor Harness Kit (HT-151389)

Haltech Elite 2500 + Toyota LandCruiser 80 Series Plug'n'Play Adaptor Harness Kit
Brand: Haltech
Part Number: HT-151389
Description:

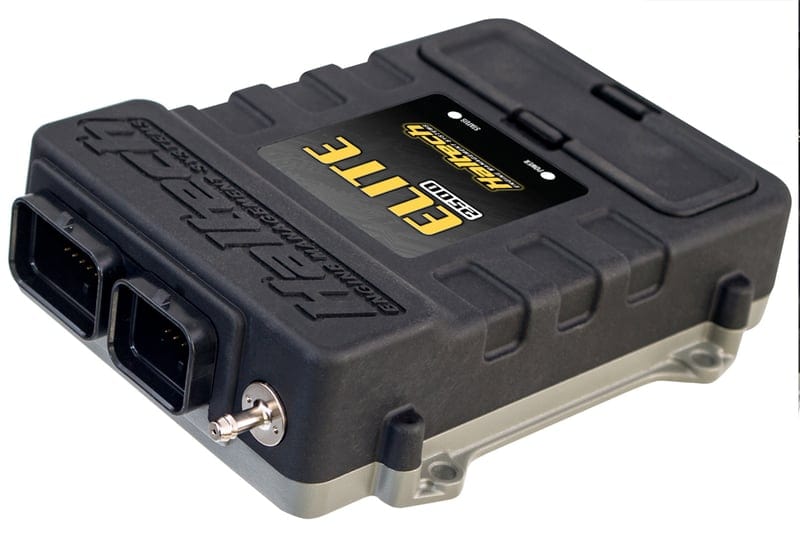

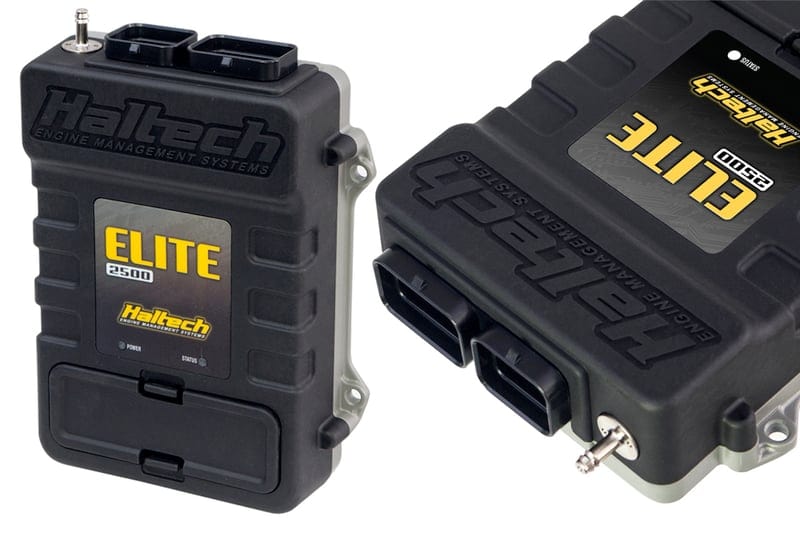

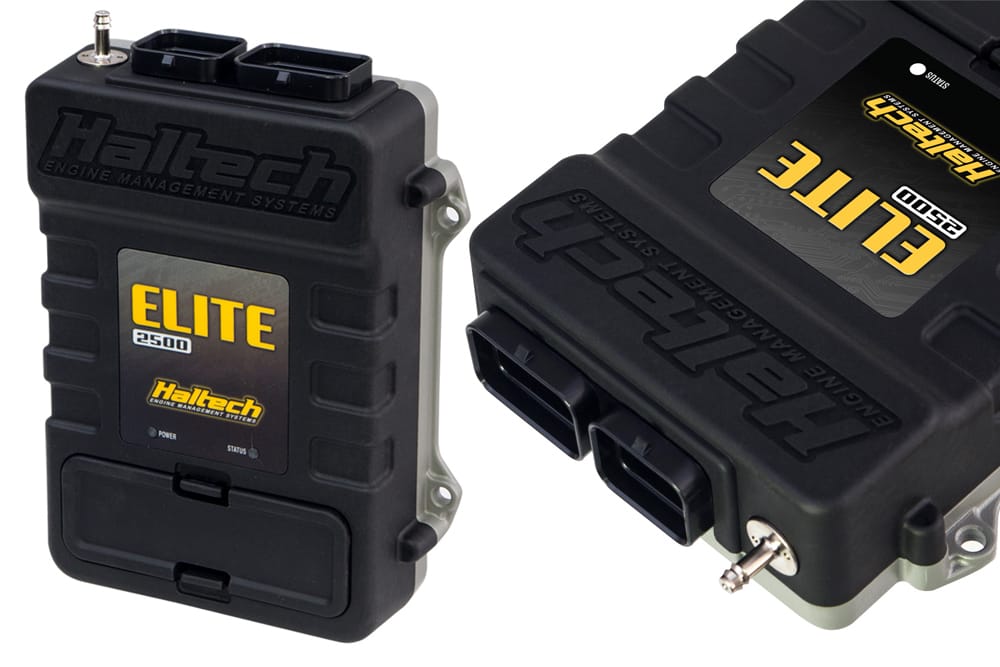

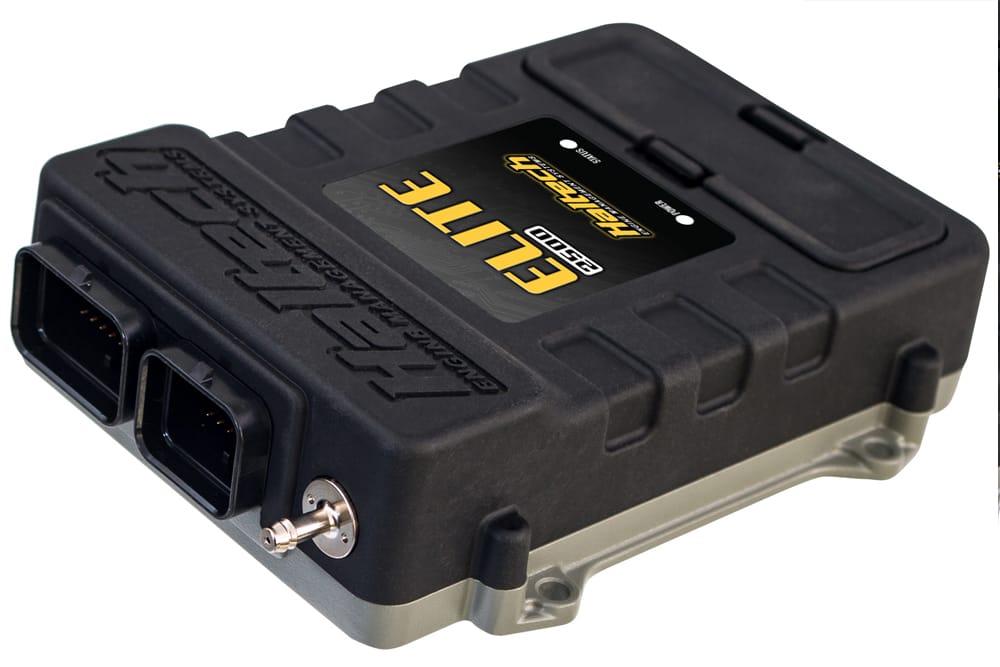

ECU OVERVIEW Elite 2500 is a two-connector, stand-alone ECU ideal for popular late model performance and racing applications.

FREE Haltech IAT sensor kit included with every Haltech ECU purchased from Stealth Ride.

Suits

• MY95-97 Toyota LandCruiser 80 Series with 1FZ-FE and manual transmission only. Supports sub tank transfer system. (European models - please confirm your ECU pin out with Haltech before ordering)

What's in the Box

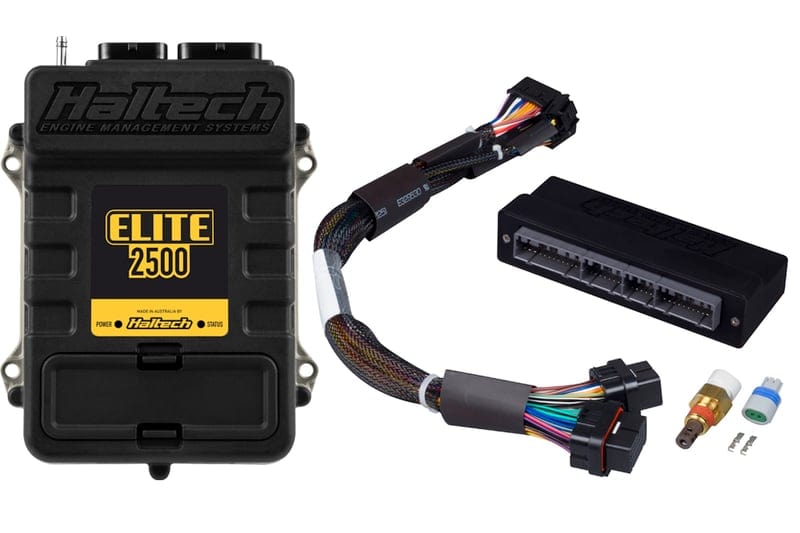

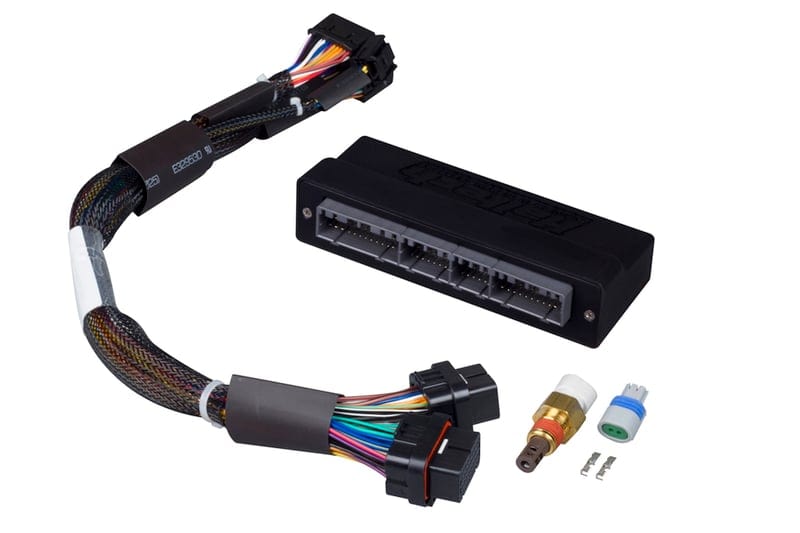

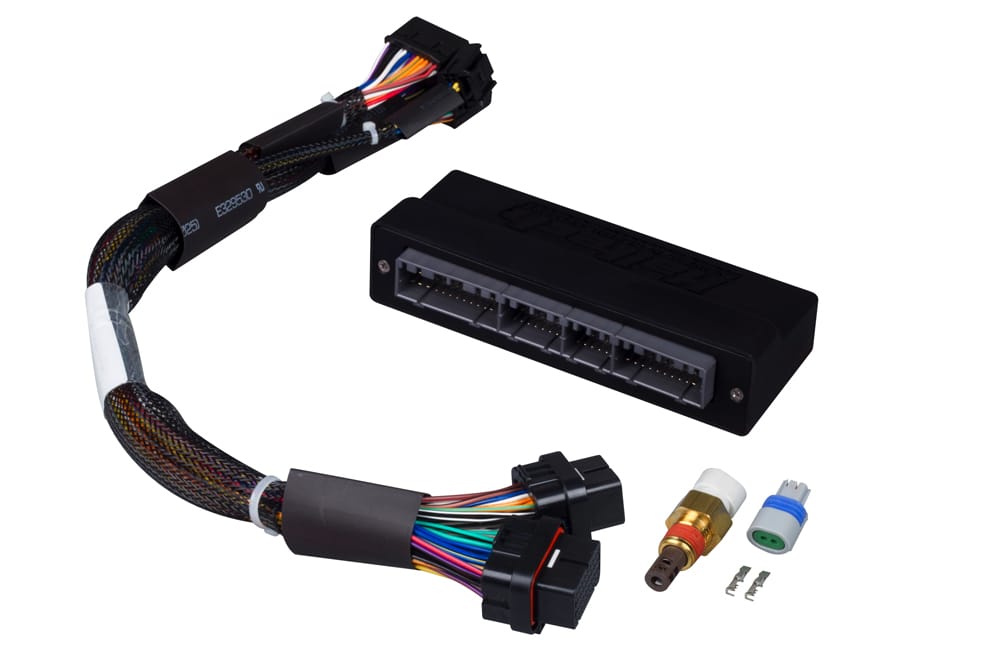

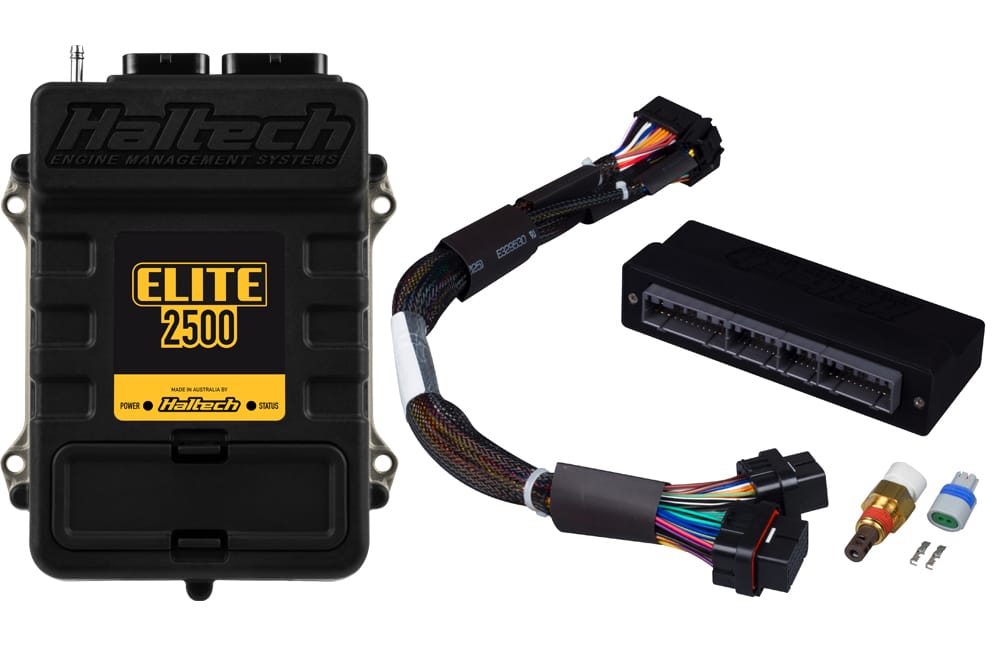

• Elite 2500 ECU with DBW and Race Functions, Plug'n'Play Adaptor Harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin TYCO plug and pins, USB programming cable.

Specifications

• Analog Voltage Inputs (AVI): 10
• Differential Engine Position Inputs: 2 (Trigger and Home)
• Digital Pulsed Inputs (DPI): 0
• Synchronized Pulsed Inputs (SPI): 4
• Knock Sensor Inputs: 2
• On-board Wideband Controller: NO
• Injection: 8 (peak and hold)
• Ignition: 8
• Ignition Switch Input: 1
• Engine Control Relay output: 1
• Total Digital Pulsed Outputs (DPO): 5
• Half Bridge Outputs (HBO): 4 Stepper 2 DBW
• On-Board PDM: NO
• 25A High Current Outputs (HCO): 0
• CAN Bus Networks: 2
• MAP sensor: Internal (4 BAR)
• Inertia / G-Sensor: NO
• USB 2.0: USB-B
• Low Power Up via Cable: NO
• Wi-Fi: NO
• Compatible with Haltech Connect App: NO
• Anti-Lag/Rotational Idle: YES
• Boost Control: 4D Closed Loop
• Closed Loop O2 Control: Dual
• CO2 Control: YES
• Drive-By-Wire Throttle: Single
• Engine Protection: Multi-Level
• Flat Shift Support: Advanced
• Flex Fuel: YES
• Intake Air Bleed Control: YES
• Knock Control: Dual
• Launch Control: YES
• Long Term Learning: Up to 4D
• Nitrous Control Stages: Up to 6
• Race Timer: YES
• Rolling Anti-Lag: YES
• Shock Travel & Ride Height: YES
• Torque Management (Driveshaft and Engine RPM Targeting): NO
• Traction Control: YES
• Trans Brake: YES
• Tuning Table Resolution: 32x32x8 4D
• Variable Cam Control: Up to 4
• Onboard storage: 8MB

Notes

Spare ignition outputs can be used (via custom wiring) to convert from distributor to direct fire ignition system (6 individual coils).
