Haltech Elite 750 + Mazda Miata (MX-5) NB Plug'n'Play Adaptor Harness Kit
Brand: Haltech
Part Number: HT-150621
Description:
Genuine Haltech Elite 750 + Mazda Miata (MX-5) NB Plug'n'Play Adaptor Harness Kit, part number HT-150621.
FREE Haltech IAT sensor kit included with every Haltech ECU purchased from Stealth Ride.
Suits
- Mazda Miata (MX-5) 1.8L VCT NB8B (01-04), 1.8L Factory Turbo SE (Aus), Mazdaspeed NB8C (04-05 USA) with 3-plug 3-row factory ECU. Manual transmission only.
What's in the Box

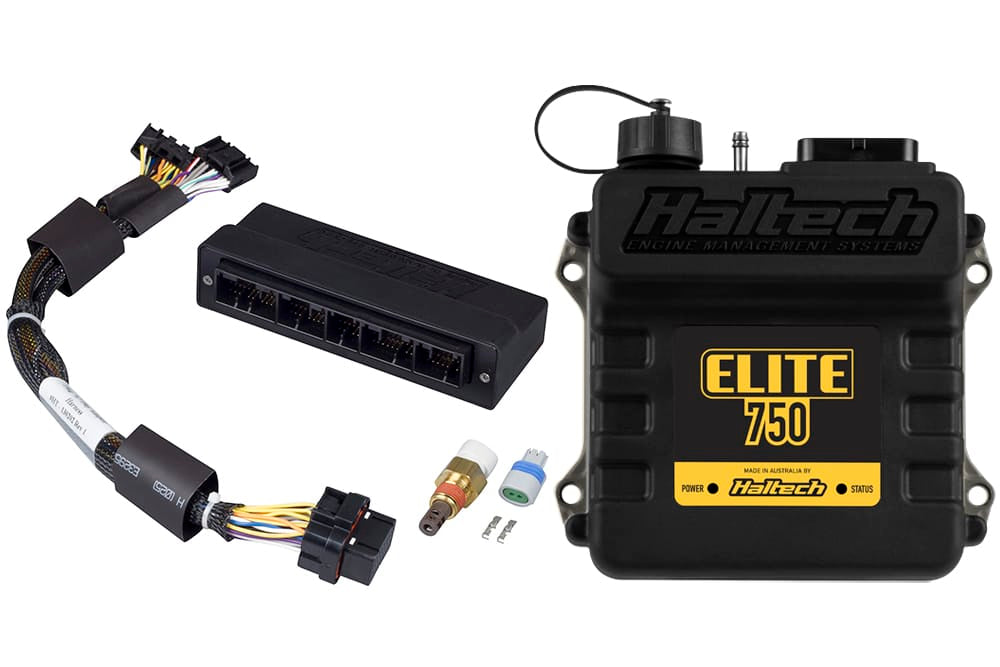

- Elite 750 ECU, Plug'n'Play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin TYCO plug and pins. Waterproof USB cap, USB programming cable.
Specifications
-
Analog Voltage Inputs (AVI): 2
-
Differential Engine Position Inputs: 2 (Trigger and Home)
-
Digital Pulsed Inputs (DPI): 2
-
Synchronized Pulsed Inputs (SPI): 0
-
Knock Sensor Inputs: 0
-
On-board Wideband Controller: NO
-
Injection: 6 (peak and hold)
-
Ignition: 6
-
Ignition Switch Input: 1
-
Engine Control Relay output: 0
-
Total Digital Pulsed Outputs (DPO): 5
-
Half Bridge Outputs (HBO): 0
-
On-Board PDM: NO
-
25A High Current Outputs (HCO): 0
-
CAN Bus Networks: 1
-
MAP sensor: Internal (4 BAR)
-
Inertia / G-Sensor: NO
-
USB 2.0: USB-B
-
Low Power Up via Cable: NO
-
Wi-Fi: NO
-
Compatible with Haltech Connect App: NO
-
Anti-Lag/Rotational Idle: NO
-
Boost Control: 3D Closed Loop
-
Closed Loop O2 Control: Dual
-
CO2 Control: NO
-
Drive-By-Wire Throttle: NO
-
Engine Protection: Single Level
-
Flat Shift Support: Basic
-
Flex Fuel: YES
-
Intake Air Bleed Control: NO
-
Knock Control: NO
-
Launch Control: YES
-
Long Term Learning: Up to 3D
-
Nitrous Control Stages: 1
-
Race Timer: NO
-
Rolling Anti-Lag: NO
-
Shock Travel & Ride Height: NO
-
Torque Management (Driveshaft and Engine RPM Targeting): NO
-
Traction Control: NO
-
Trans Brake: NO
-
Tuning Table Resolution: 32×32 3D
-
Variable Cam Control: Single
-
Onboard storage: 2MB
