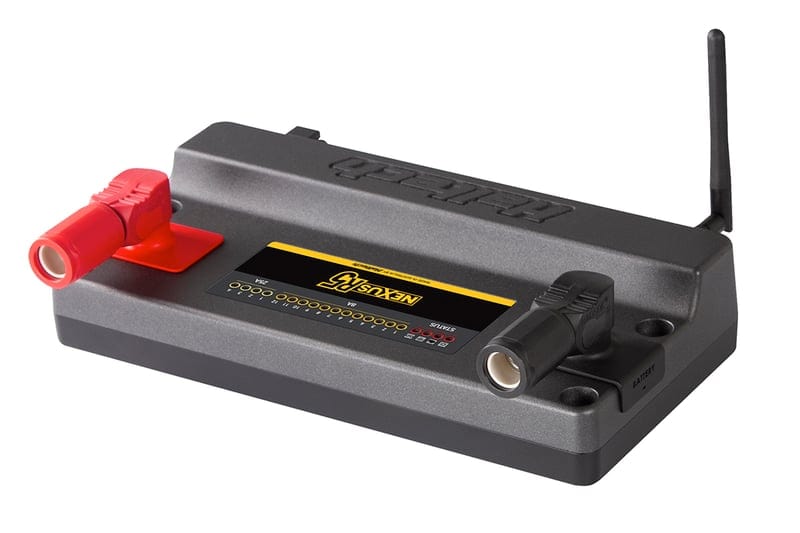

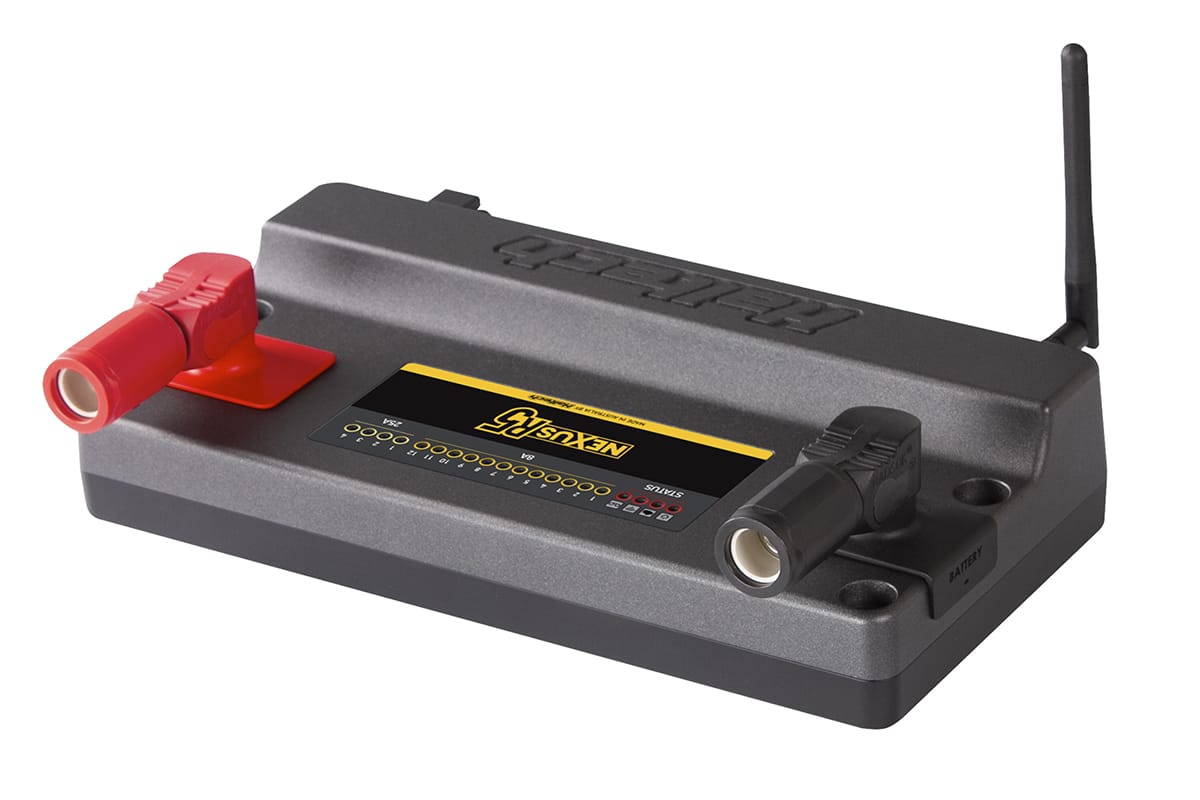

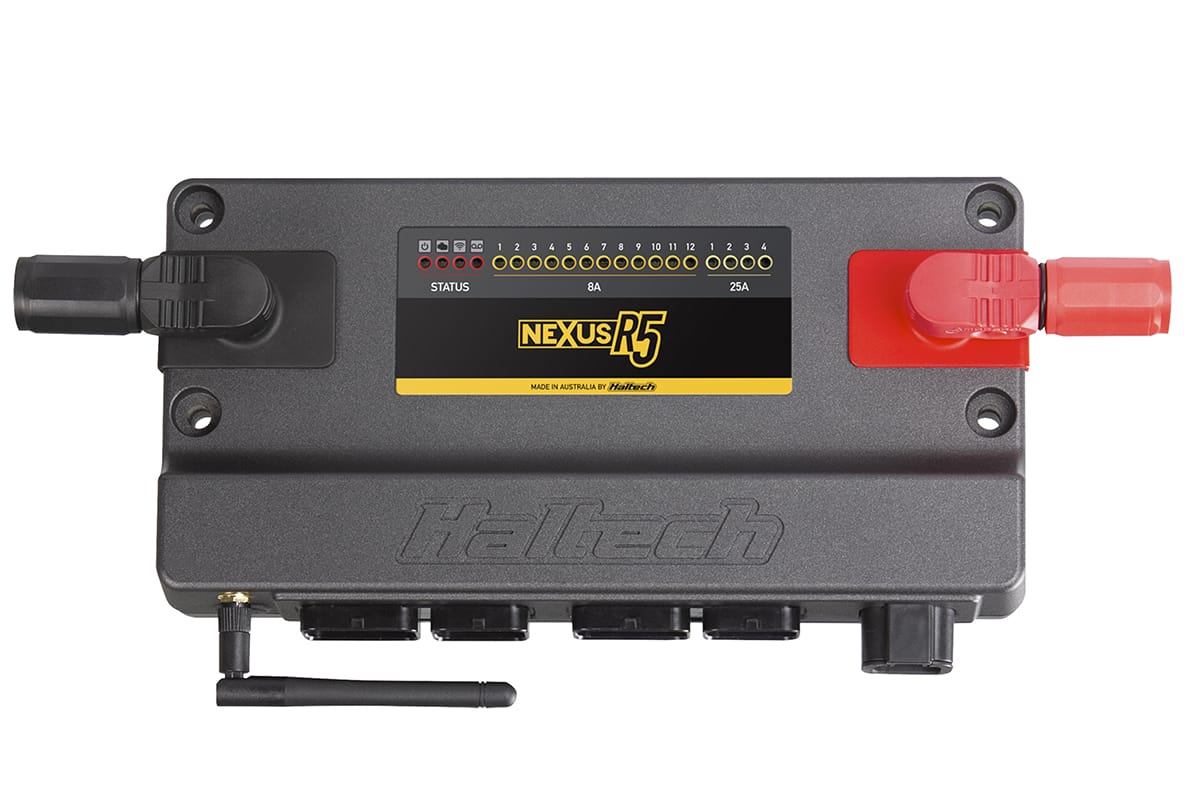

Haltech NEXUS R5 + Universal Wire-in Harness Kit
Length: 2.5m (8')
Brand: Haltech
Part Number: HT-195200
Description:
Genuine Haltech NEXUS R5 + Universal Wire-in Harness Kit, part number HT-195200.
FREE Haltech IAT sensor kit included with every Haltech ECU purchased from Stealth Ride.
Suits
- Racing application where advanced race features, data logging and power management control is required.

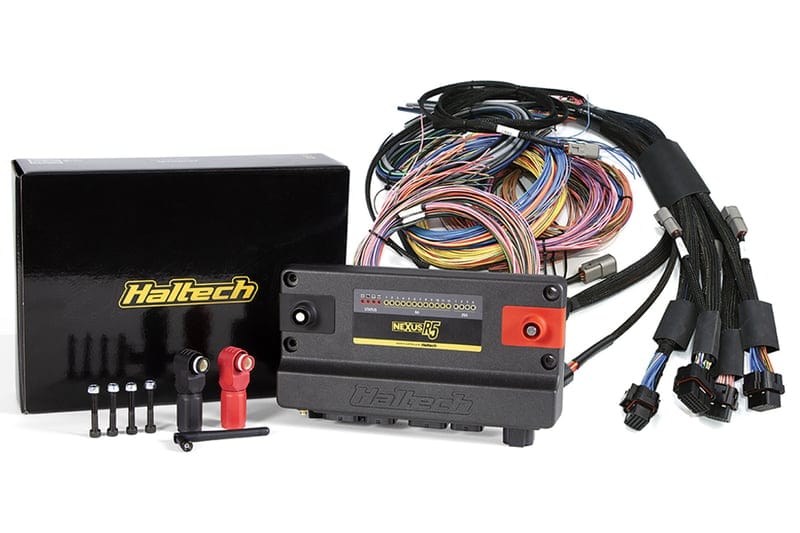

What's in the Box

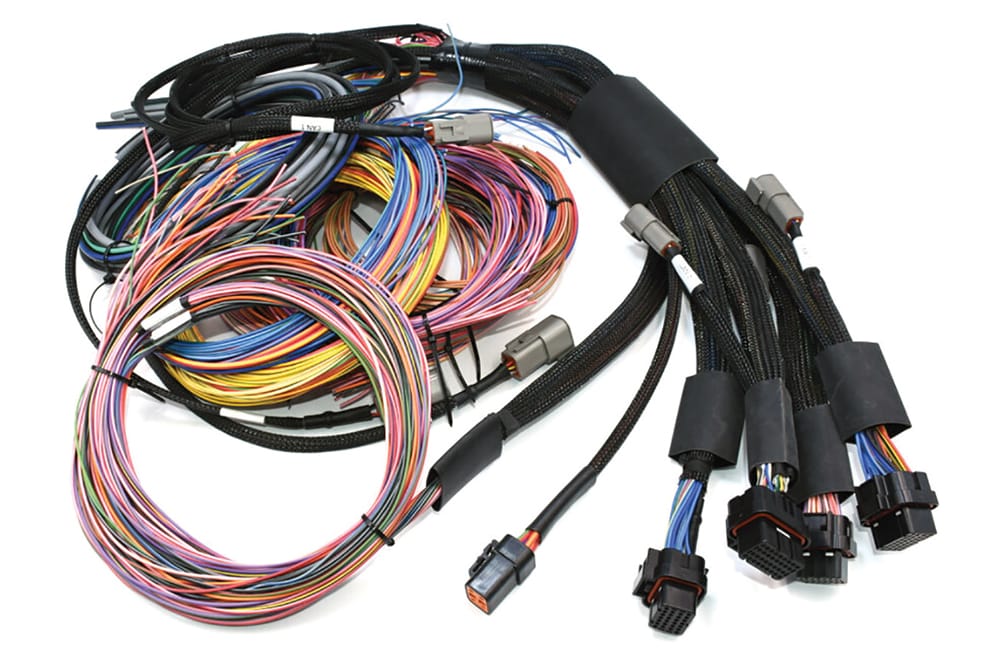

- NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4. NEXUS R5 universal engine wiring harness, fire wall grommet 2.5in (63.5mm).
Specifications
-
Analog Voltage Inputs (AVI): 23
-
Differential Engine Position Inputs: 2 (Trigger and Home)
-
Digital Pulsed Inputs (DPI): 0
-
Synchronized Pulsed Inputs (SPI): 10
-
Knock Sensor Inputs: 2
-
On-board Wideband Controller: 2 x NTK/LSU 4.9
-
Injection: 18 (peak and hold)
-
Ignition: 12
-
Ignition Switch Input: 1
-
Engine Control Relay output: 0
-
Total Digital Pulsed Outputs (DPO): 8
-
Half Bridge Outputs (HBO): 4 8A
-
On-Board PDM: YES
-
25A High Current Outputs (HCO): 4
-
CAN Bus Networks: 3
-
MAP sensor: External
-
Inertia / G-Sensor: YES
-
USB 2.0: USB-C
-
Low Power Up via Cable: YES
-
Wi-Fi: YES
-
Compatible with Haltech Connect App: YES
-
Anti-Lag/Rotational Idle: YES
-
Boost Control: 4D Closed Loop
-
Closed Loop O2 Control: Dual
-
CO2 Control: YES
-
Drive-By-Wire Throttle: Dual
-
Engine Protection: Multi-Level
-
Flat Shift Support: Advanced
-
Flex Fuel: YES
-
Intake Air Bleed Control: YES
-
Knock Control: Dual
-
Launch Control: YES
-
Long Term Learning: Up to 4D
-
Nitrous Control Stages: Up to 6
-
Race Timer: YES
-
Rolling Anti-Lag: YES
-
Shock Travel & Ride Height: YES
-
Torque Management (Driveshaft and Engine RPM Targeting): YES
-
Traction Control: YES
-
Trans Brake: YES
-
Tuning Table Resolution: 32x32x8 4D
-
Variable Cam Control: Up to 4
-
Onboard storage: 512MB
