Description

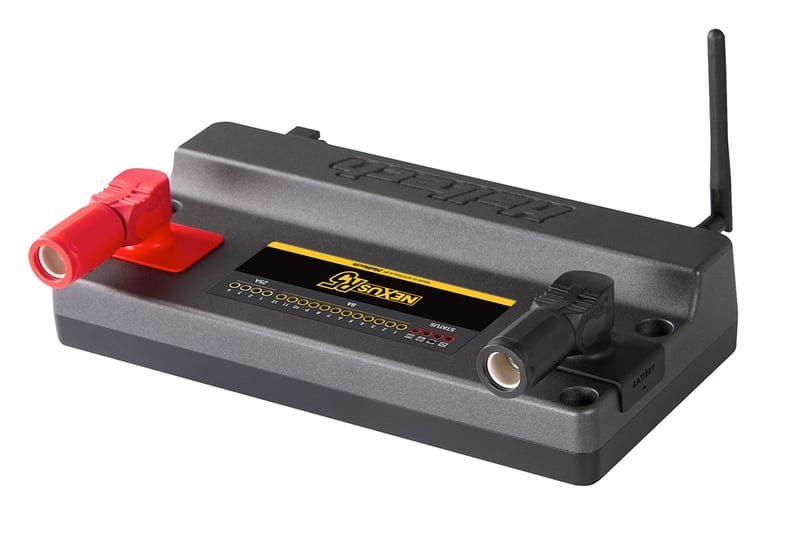

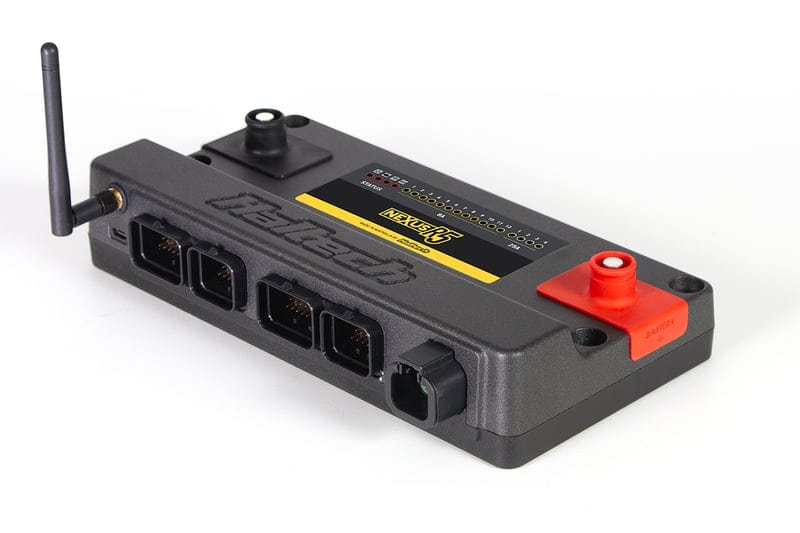

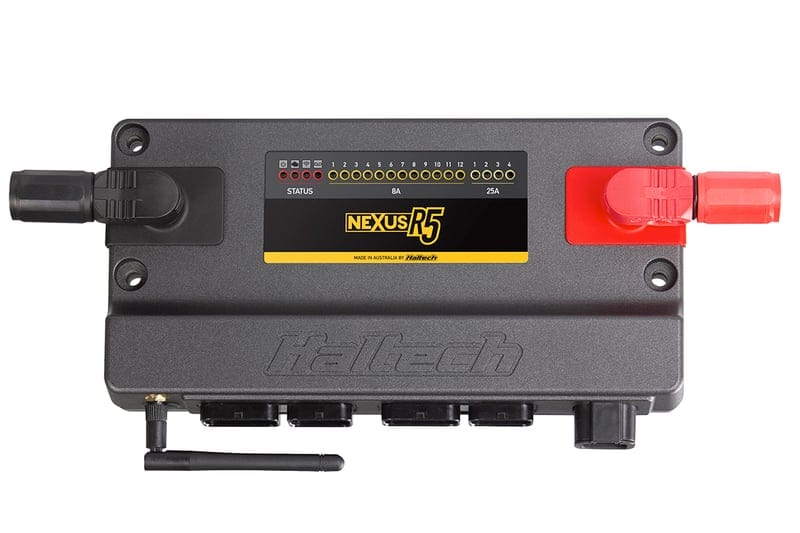

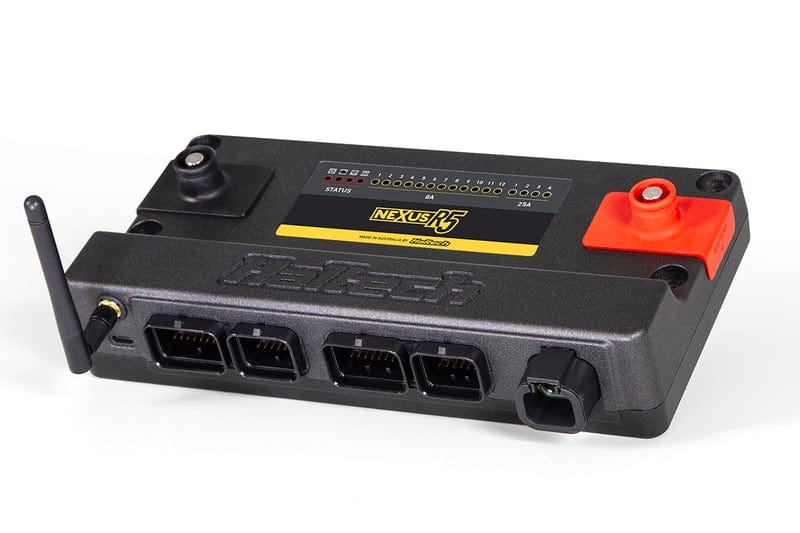

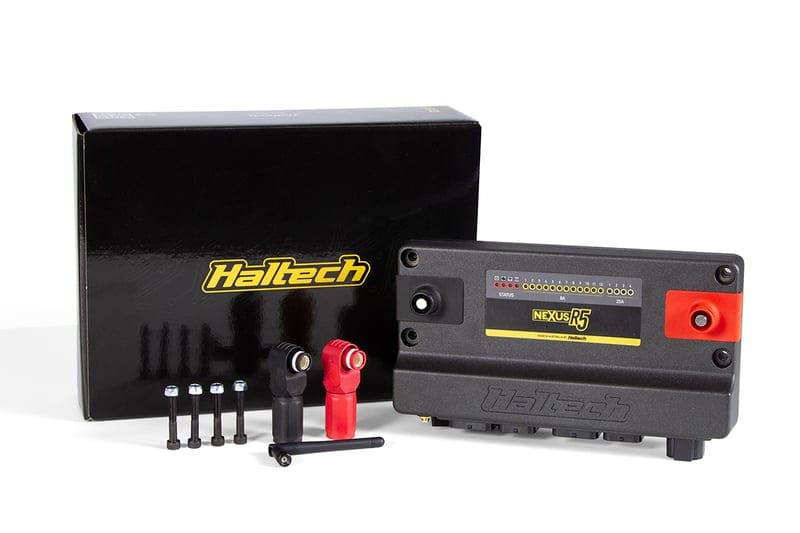

Outputs: Up to 18 injector and 12 ignition Suits: Engines with up to 12 cylinders or up to 6 rotors. Racing applications where advanced race features, data logging and power management control is required. Includes: Nexus R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap.
VCU OVERVIEW Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit). 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump) 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc) 18 x peak/hold injector drivers (can be used as low side drive outputs) 12 x low current ignition outputs (can be used as low side drive outputs) 8 x low side drive outputs, PWM capable (DPOs) 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs 2 x onboard wideband controllers, supporting NTK and LSU4.9 3 x CAN ports with switchable termination
VCU FEATURES Controlled via NSP (Nexus Software Programmer) Long Term Learning Stepper Motor Control 4D Closed Loop Boost Control Closed Loop CO2 Control Rotational Idle Launch Control Traction Control Anti-Lag Dual Knock Control Trans Brake Control Race Timer Multi Stage Fuel Injection Multi-level Engine Protection 6 Stage Nitrous Control 4-sensor variable cam control Intake Air Bleed Control Flat Shift Control Shock Travel & Ride Height Control Advanced Torque Management On-board Wi-Fi AUTOMATIC TRANSMISSION CONTROL Ford AODE/4R70W GM 4L60E GM 4L80E Toyota A340E Lenco Liberty
