Haltech Nexus S2 Plug 'n' Play Adapter Harness Kit - Nissan Silvia S15
Brand: Haltech
Part Number: HT-212317
Description:
Genuine Haltech Nexus S2 Plug 'n' Play Adapter Harness Kit - Nissan Silvia S15, part number HT-212317.
FREE Haltech IAT sensor kit included with every Haltech ECU purchased from Stealth Ride.
Suits
- Plug 'n' Play replacement of the factory ECU for Nissan 200SX/Silvia S15 (Australian Delivered and JDM) 200SX/Silvia S14A S2 "KOUKI" 180SX S13 Rev 3 "Type X" 1996 onwards Pulsar N15 and N14 SSS and GTI-R Micra K11 (CG13DE) Manual transmissions only.
What's in the Box

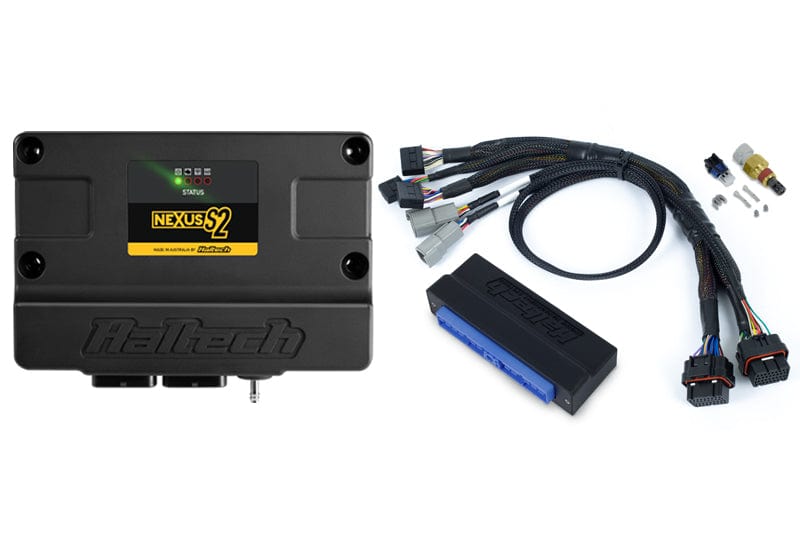

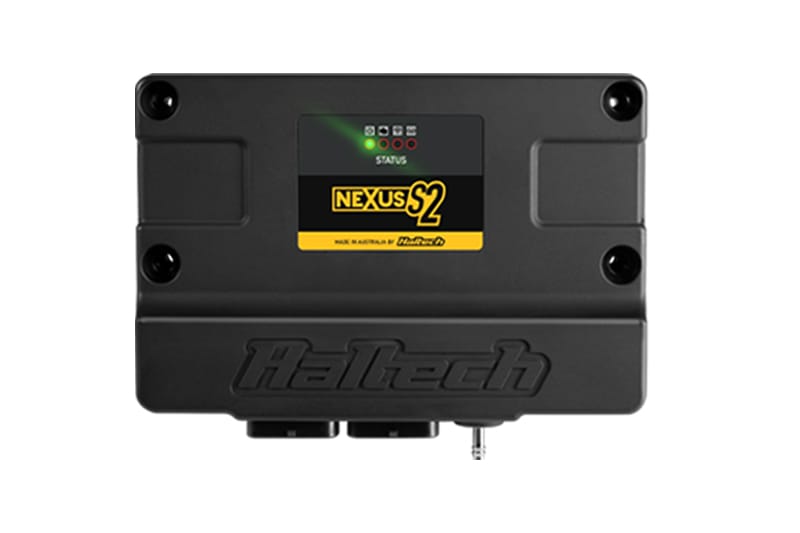

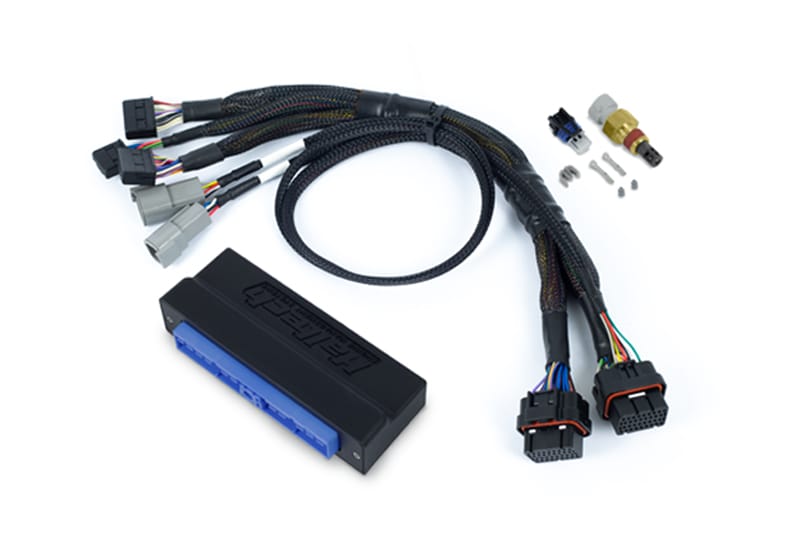

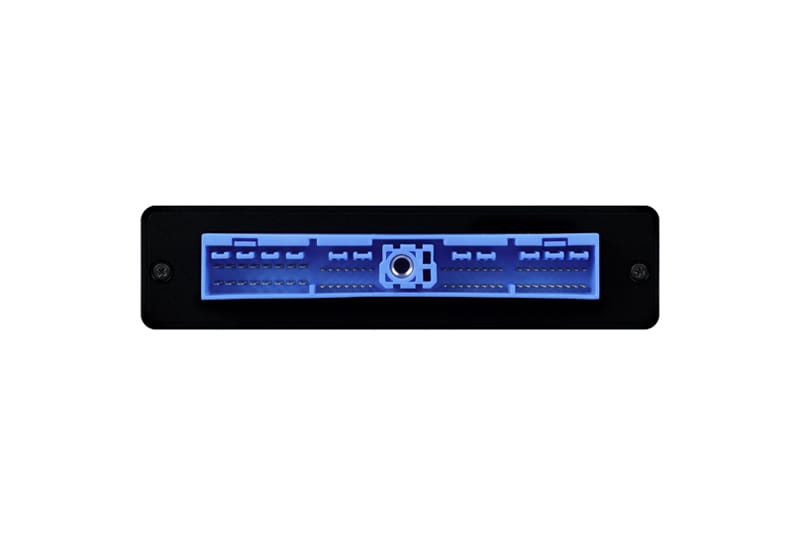

- Nexus S2 ECU, Injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.
Specifications
-
Analog Voltage Inputs (AVI): 11
-
Differential Engine Position Inputs: 2 (Trigger and Home)
-
Digital Pulsed Inputs (DPI): 0
-
Synchronized Pulsed Inputs (SPI): 6
-
Knock Sensor Inputs: 2
-
On-board Wideband Controller: 1 x NTK/LSU 4.9
-
Injection: 4 (peak and hold)
-
Ignition: 4
-
Ignition Switch Input: 1
-
Engine Control Relay output: 1
-
Total Digital Pulsed Outputs (DPO): 6
-
Half Bridge Outputs (HBO): 4 8A
-
On-Board PDM: NO
-
25A High Current Outputs (HCO): 0
-
CAN Bus Networks: 2
-
MAP sensor: Internal (4 BAR)
-
Inertia / G-Sensor: NO
-
USB 2.0: USB-C
-
Low Power Up via Cable: YES
-
Wi-Fi: YES
-
Compatible with Haltech Connect App: YES
-
Anti-Lag/Rotational Idle: YES
-
Boost Control: 4D Closed Loop
-
Closed Loop O2 Control: Dual
-
CO2 Control: YES
-
Drive-By-Wire Throttle: Dual
-
Engine Protection: Multi-Level
-
Flat Shift Support: Advanced
-
Flex Fuel: YES
-
Intake Air Bleed Control: YES
-
Knock Control: Dual
-
Launch Control: YES
-
Long Term Learning: Up to 4D
-
Nitrous Control Stages: Up to 6
-
Race Timer: YES
-
Rolling Anti-Lag: YES
-
Shock Travel & Ride Height: YES
-
Torque Management (Driveshaft and Engine RPM Targeting): YES
-
Traction Control: YES
-
Trans Brake: YES
-
Tuning Table Resolution: 32x32x8 4D
-
Variable Cam Control: Up to 4
-
Onboard storage: 128MB
Notes
Manual transmission only. Using a Nexus S2 instead of a Nexus S3 will reduce some of the car's factory functionality. Refer to the quick start guide for details.
