Haltech Engine Management Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Subaru WRX MY06-10 (HT-213311) SR

Roll over image to zoom in Click on image to zoom

Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Subaru WRX MY06-10 (HT-213311)

Name: Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Subaru WRX MY06-10 (HT-213311)
Brand: Haltech
SKU: HT 213311
Price: 4409.00 NZD
Availability: InStock
Rating: 5 (34 reviews)

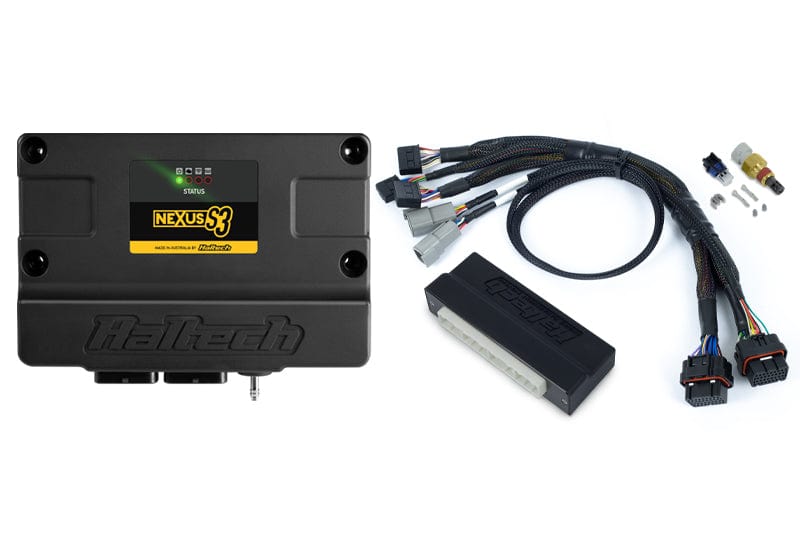

Includes: Nexus S3 ECU, injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Suits: Plug 'n' Play replacement of the factory ECU for Subaru WRX MY06-10 (Australian Domestic Market only). STI MY06-07 2.5 Litre with DENSO ECU (Australian Domestic Market only).

HaltechSKU: HT 213311 Manufacturer's SKU: HT-213311

FREE IAT SENSOR KIT

WHEN YOU PURCHASE ANY HALTECH ECU COMPUTER FROM STEALTH RIDE

Price:

$4,409.00 NZD

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Subaru WRX MY06-10
Brand: Haltech
Part Number: HT-213311
Description:

Genuine Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Subaru WRX MY06-10, part number HT-213311.

FREE Haltech IAT sensor kit included with every Haltech ECU purchased from Stealth Ride.

Suits

Plug 'n' Play replacement of the factory ECU for Subaru WRX MY06-10 (Australian Domestic Market only). STI MY06-07 2.5 Litre with DENSO ECU (Australian Domestic Market only).

What's in the Box

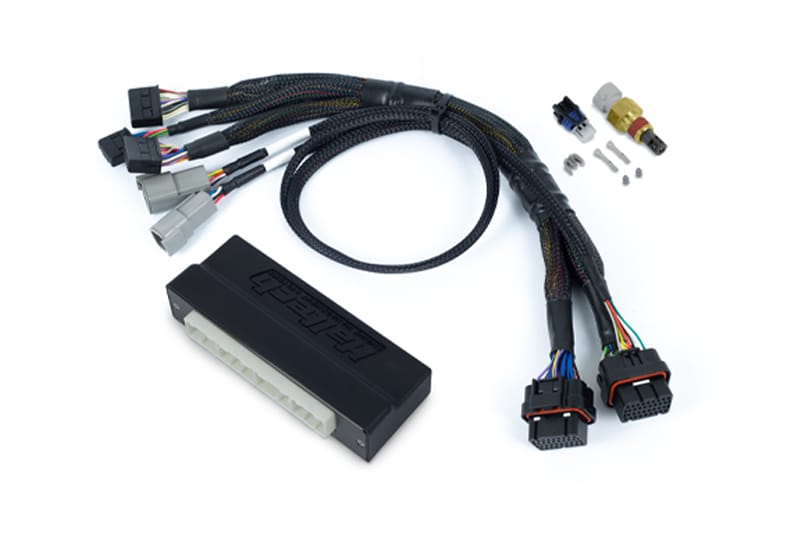

Nexus S3 ECU, injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Specifications

Analog Voltage Inputs (AVI): 11
Differential Engine Position Inputs: 2 (Trigger and Home)
Digital Pulsed Inputs (DPI): 0
Synchronized Pulsed Inputs (SPI): 6
Knock Sensor Inputs: 2
On-board Wideband Controller: 1 x NTK/LSU 4.9
Injection: 8 (peak and hold)
Ignition: 8
Ignition Switch Input: 1
Engine Control Relay output: 1
Total Digital Pulsed Outputs (DPO): 6
Half Bridge Outputs (HBO): 4 8A
On-Board PDM: NO
25A High Current Outputs (HCO): 0
CAN Bus Networks: 2
MAP sensor: Internal (4 BAR)
Inertia / G-Sensor: NO
USB 2.0: USB-C
Low Power Up via Cable: YES
Wi-Fi: YES
Compatible with Haltech Connect App: YES
Anti-Lag/Rotational Idle: YES
Boost Control: 4D Closed Loop
Closed Loop O2 Control: Dual
CO2 Control: YES
Drive-By-Wire Throttle: Dual
Engine Protection: Multi-Level
Flat Shift Support: Advanced
Flex Fuel: YES
Intake Air Bleed Control: YES
Knock Control: Dual
Launch Control: YES
Long Term Learning: Up to 4D
Nitrous Control Stages: Up to 6
Race Timer: YES
Rolling Anti-Lag: YES
Shock Travel & Ride Height: YES
Torque Management (Driveshaft and Engine RPM Targeting): YES
Traction Control: YES
Trans Brake: YES
Tuning Table Resolution: 32x32x8 4D
Variable Cam Control: Up to 4
Onboard storage: 128MB

Notes

Not compatible with the Hitachi ECU.
