Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Toyota Chaser & Soarer
Brand: Haltech
Part Number: HT-213313
Description:
Genuine Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Toyota Chaser & Soarer, part number HT-213313.
FREE Haltech IAT sensor kit included with every Haltech ECU purchased from Stealth Ride.
Suits
- Plug 'n' Play replacement of the factory ECU for Toyota Mark II/Cresta/Chaser JZX100 1JZ-GTE VVT-I (JDM) Soarer (MY96-01) JZZ30 1JZ-GTE VVT-I (JDM) Manual transmissions only.

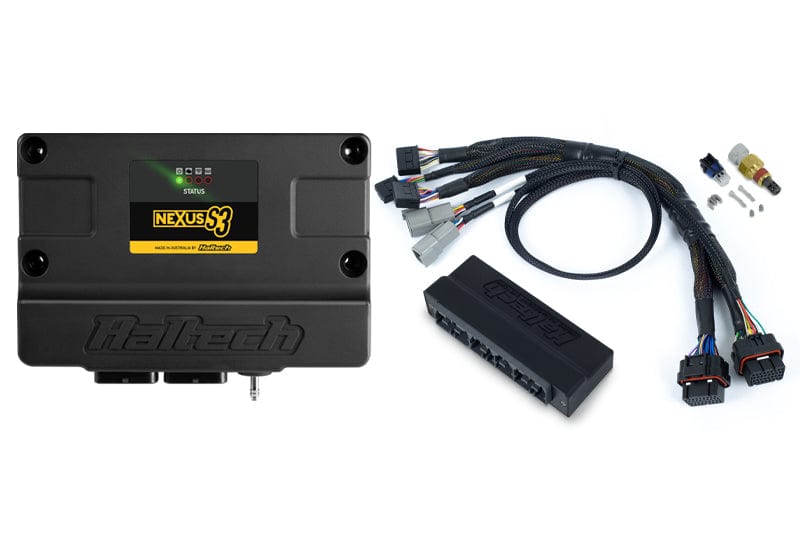

What's in the Box

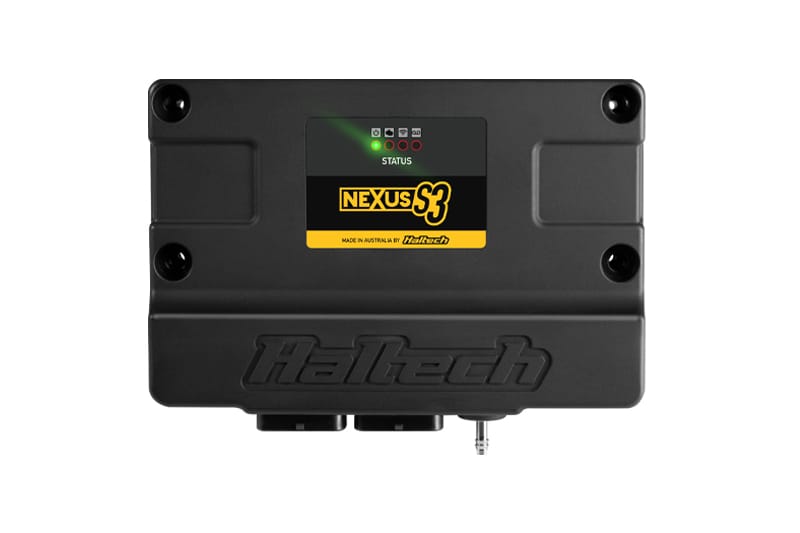

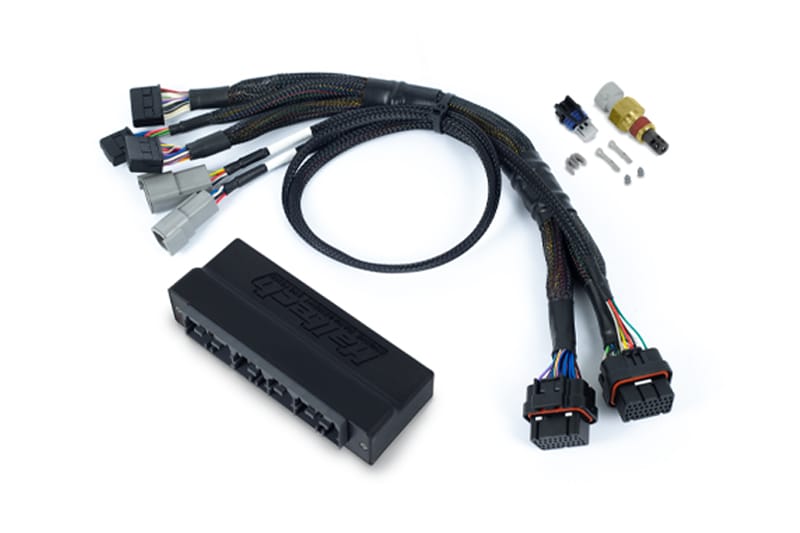

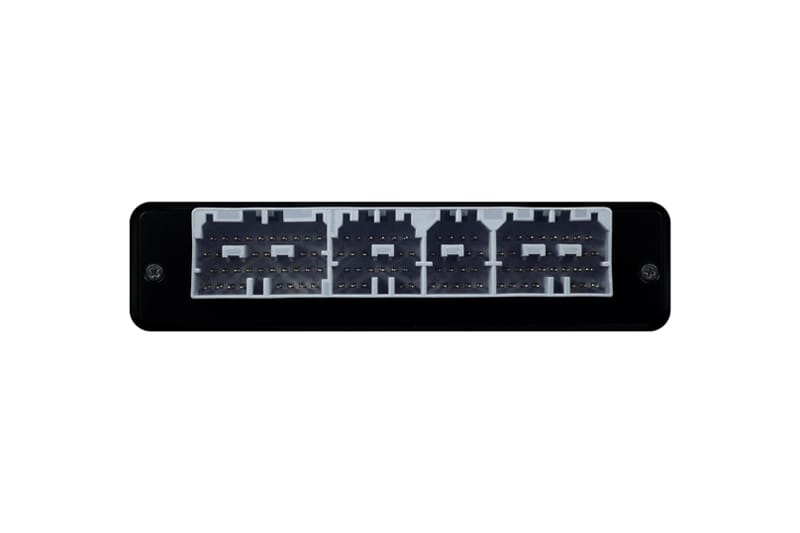

- Nexus S3 ECU, injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.
Specifications
-
Analog Voltage Inputs (AVI): 11
-
Differential Engine Position Inputs: 2 (Trigger and Home)
-
Digital Pulsed Inputs (DPI): 0
-
Synchronized Pulsed Inputs (SPI): 6
-
Knock Sensor Inputs: 2
-
On-board Wideband Controller: 1 x NTK/LSU 4.9
-
Injection: 8 (peak and hold)
-
Ignition: 8
-
Ignition Switch Input: 1
-
Engine Control Relay output: 1
-
Total Digital Pulsed Outputs (DPO): 6
-
Half Bridge Outputs (HBO): 4 8A
-
On-Board PDM: NO
-
25A High Current Outputs (HCO): 0
-
CAN Bus Networks: 2
-
MAP sensor: Internal (4 BAR)
-
Inertia / G-Sensor: NO
-
USB 2.0: USB-C
-
Low Power Up via Cable: YES
-
Wi-Fi: YES
-
Compatible with Haltech Connect App: YES
-
Anti-Lag/Rotational Idle: YES
-
Boost Control: 4D Closed Loop
-
Closed Loop O2 Control: Dual
-
CO2 Control: YES
-
Drive-By-Wire Throttle: Dual
-
Engine Protection: Multi-Level
-
Flat Shift Support: Advanced
-
Flex Fuel: YES
-
Intake Air Bleed Control: YES
-
Knock Control: Dual
-
Launch Control: YES
-
Long Term Learning: Up to 4D
-
Nitrous Control Stages: Up to 6
-
Race Timer: YES
-
Rolling Anti-Lag: YES
-
Shock Travel & Ride Height: YES
-
Torque Management (Driveshaft and Engine RPM Targeting): YES
-
Traction Control: YES
-
Trans Brake: YES
-
Tuning Table Resolution: 32x32x8 4D
-
Variable Cam Control: Up to 4
-
Onboard storage: 128MB
Notes
Installation of this Haltech product will prevent the factory TRC and ETCS systems from operating. Warning lights will illuminate on the dash cluster to indicate these systems are disabled. Removal of the TRC and ETCS warning bulbs from the dash cluster is recommended.
