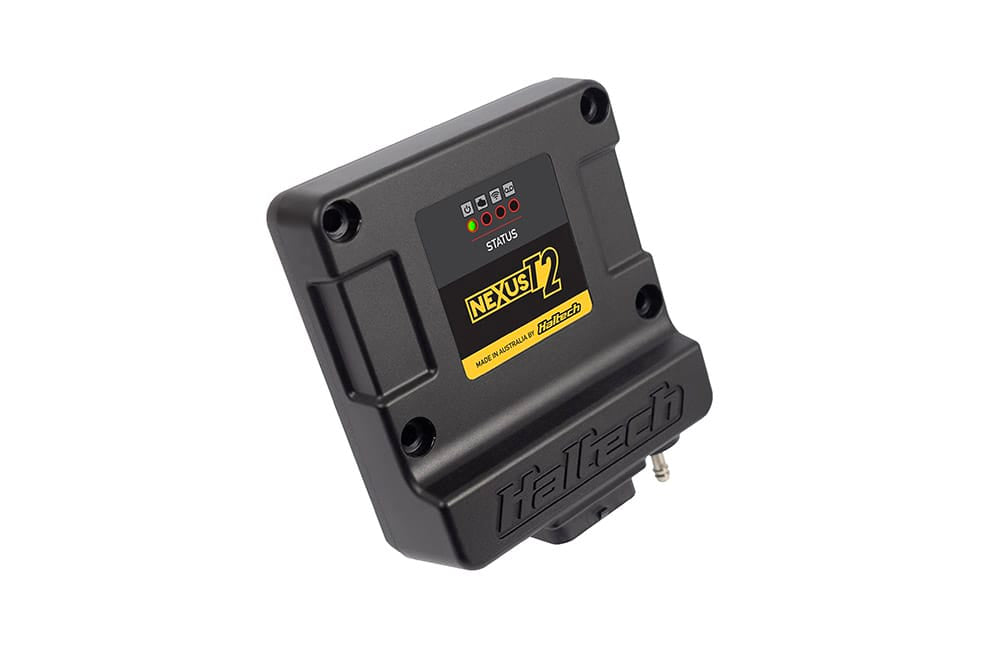

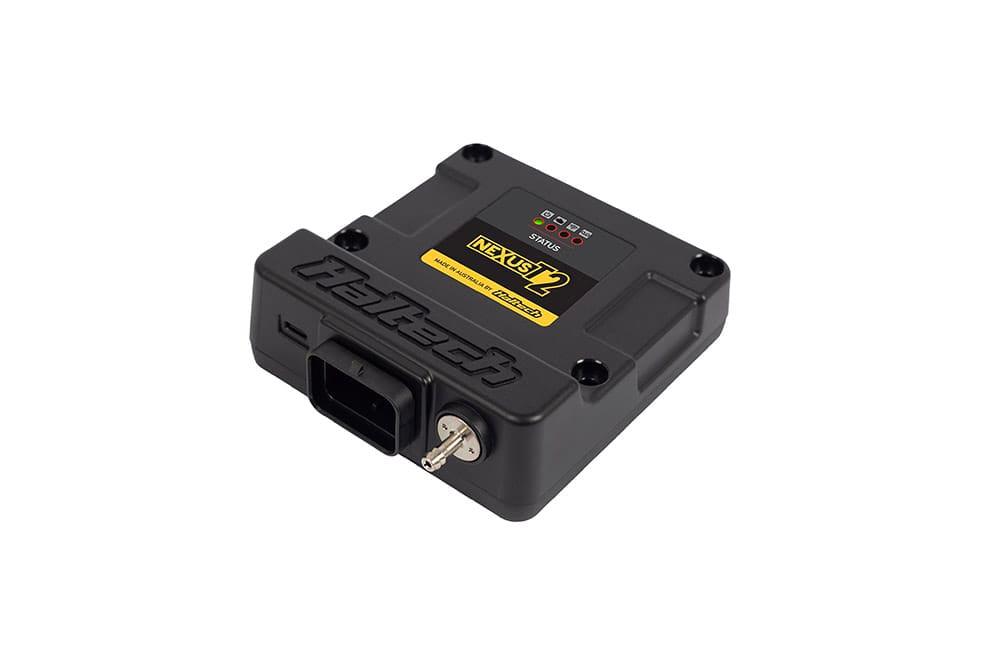

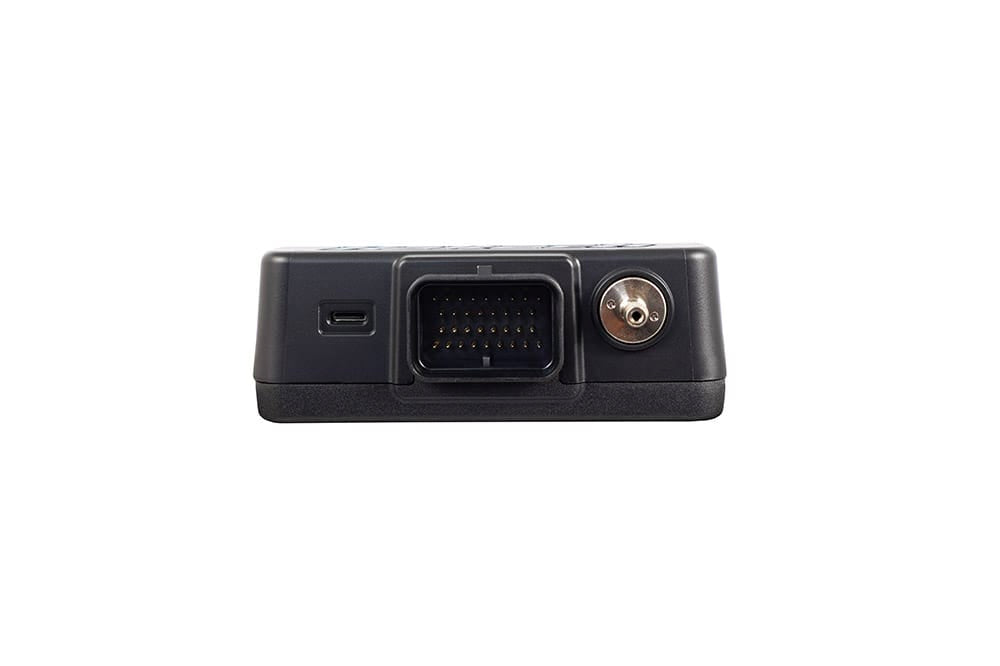

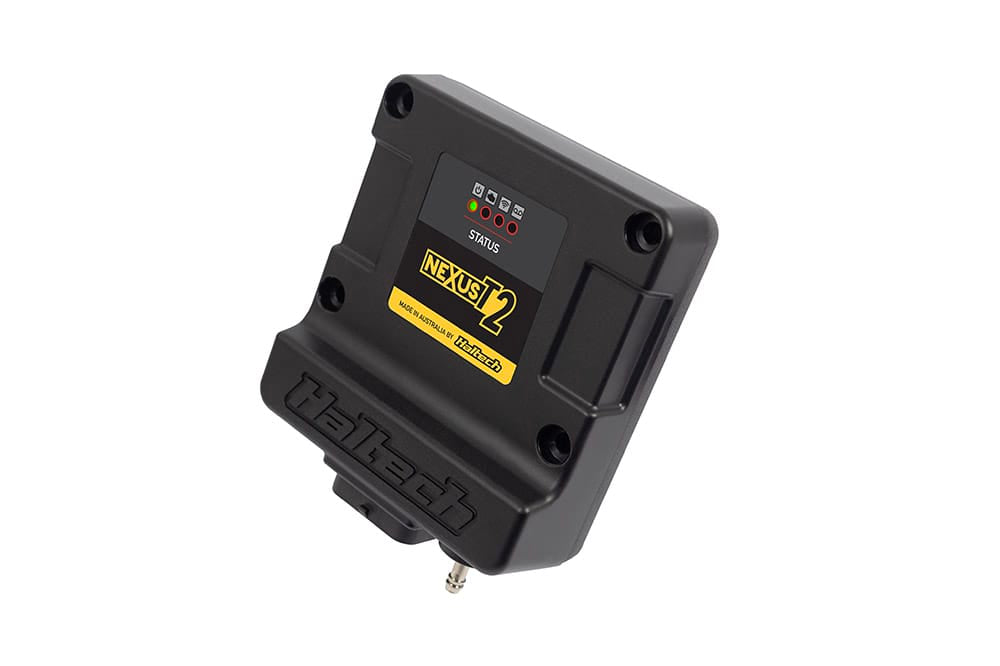

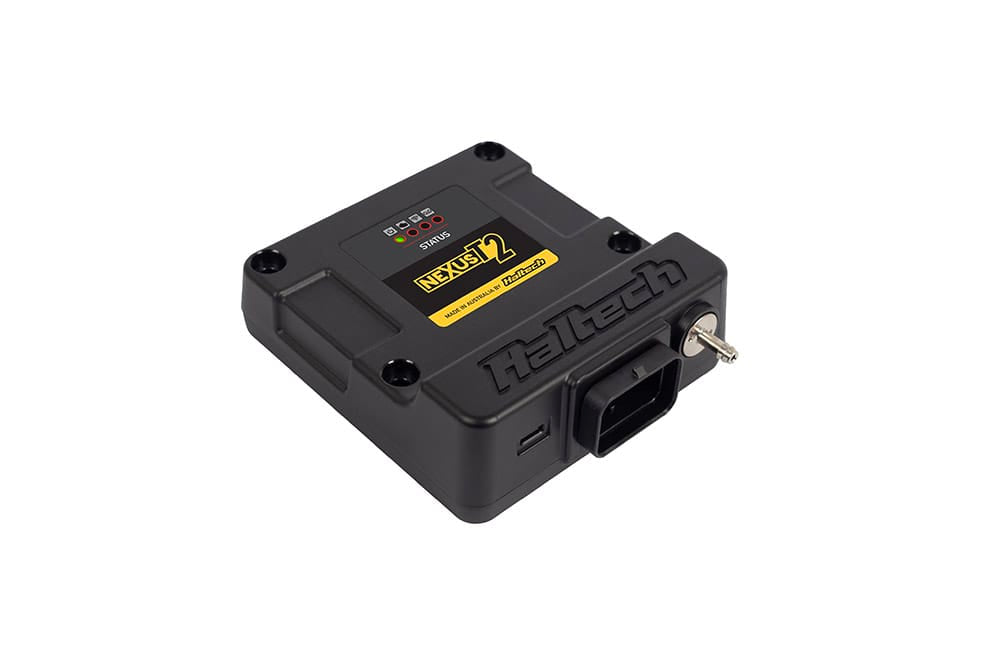

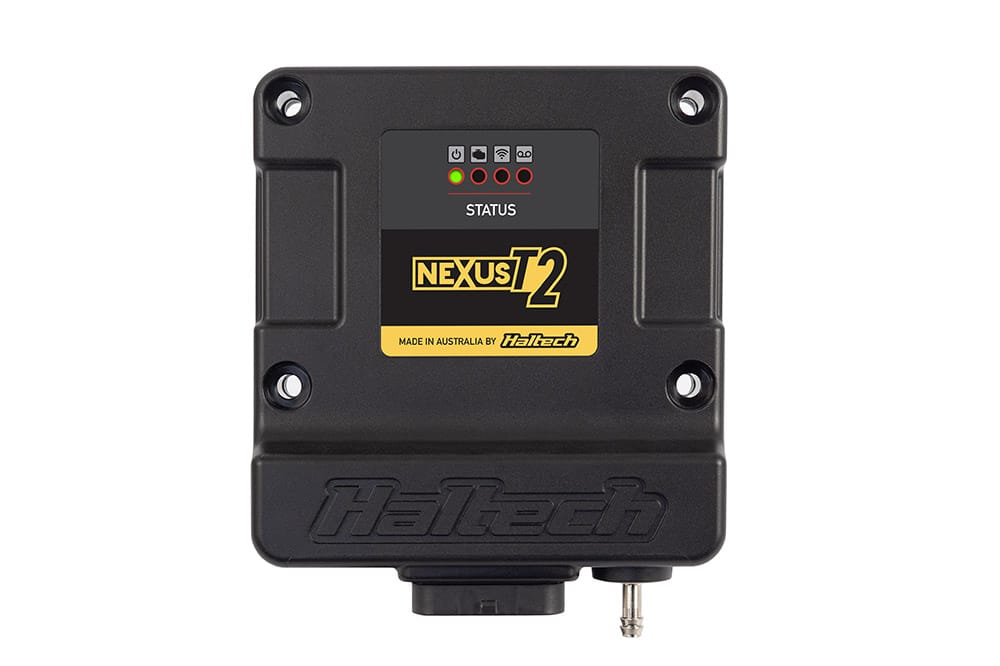

Haltech Nexus T2 ECU
Brand: Haltech
Part Number: HT-211000
Description:
Genuine Haltech Nexus T2 ECU, part number HT-211000.
FREE Haltech IAT sensor kit included with every Haltech ECU purchased from Stealth Ride.
Suits
- Universal 1-6 cylinder or 3 rotor applications.
What's in the Box
- Nexus T2 ECU, USB-C Cable, USB-C Dust Cap, Mounting Bolt Set, Haltech Fabric Keytag, Quick Start Guide, Wiring Diagram (Universal).
Specifications
-
Outputs: Up to 6 injector and 6 ignition.
-
25A High Current Outputs (HCO): 0
-
4 Channel Oscilloscope: 50kSa/s per channel, 2ms/Div limit
-
Analog Voltage Inputs (AVI): 5
-
Anti-Lag/Rotational Idle: YES
-
Auxiliary AX25+ Output (25A) (user definable): 0
-
Boost Control: 4D Closed Loop
-
CAN / Transmission Power Supply (8A): 0
-
CAN Bus Networks: 1
-
Closed Loop O2 Control: Dual
-
CO2 Control: YES
-
Compatible with Haltech Connect App: YES
-
Data Logging: Laptop + Onboard
-
Differential Engine Position Inputs: 2 (Trigger and Home)
-
Digital Pulsed Inputs (DPI): 0
-
Drive-By-Wire Throttle: NO
-
Enclosure (Not including connector protrusion): 111 x 131 x 40 mm (4.4 x 5.2 x 1.6 in)
-
Engine Control Relay output: 0
-
Engine Protection: Multi Level
-
Flat Shift Support: Advanced
-
Flex Fuel: YES
-
Half Bridge Outputs (HBO): 0
-
High Speed USB 2.0 (USB-C interface) 480 Mbit/s connection: 1
-
Ignition: 6
-
Ignition Switch Input: 0
-
Inertia / G-Sensor: NO
-
Injection: 6 (peak and hold)
-
Intake Air Bleed Control: YES
-
Knock Control: Single
-
Knock Sensor Inputs: 1 (Shared with SPI2)
-
Launch Control: YES
-
Logging Location: Onboard or PC logging
-
Long Term Learning: Up to 4D
-
Low Power Mode (USB): 4 to 5.5V
-
Low Power Up via Cable: YES
-
MAP sensor: Internal (4 BAR)
-
Max Channels per Log: 300
-
Max Sampling Frequency: 1kHz
-
Nitrous Control Stages: up to 6
-
No output static current draw: < 1A
-
Onboard MAP sensor (4 bar): YES
-
On-Board PDM: NO
-
On-board Wideband: 0
-
On-board Wideband Controller: NO
-
On-board Wideband Controller (Bosch LSU 4.9 sensor only): NO
-
Operating Temperature (ambient): -40°C to 85°C (-40 to 185°F)
-
Overall (Including connector protrusion): TBC
-
Power Supply (across power terminals): 8 to 22V
-
Power up over USB: Datalogging, settings and firmware upgrade available (IO disabled)
-
Race Timer: YES
-
Rolling Anti-Lag: YES
-
Shock Travel & Ride Height: YES
-
Static current draw from USB port: < 500mA
-
Synchronised Pulsed Inputs (user definable): 2 (SPI2 shared with knock input)
-
Tachometer Output: YES
-
Total Digital Pulsed Outputs (DPO): 5
-
Traction Control: YES
-
Trans Brake: YES
-
Transmission / Vehicle Speed Sensor Inputs: 32x32x8 4D
-
USB 2.0: USB-C
-
Variable Cam Control: Up to 2
-
Weight: 0.39kg
-
Wi-Fi: YES
Notes
Haltech's entry-level, single connector ECU. Successor to the Elite 750. Ideal for basic 6 cylinder or 3 rotor engine applications and basic EFI conversions.
