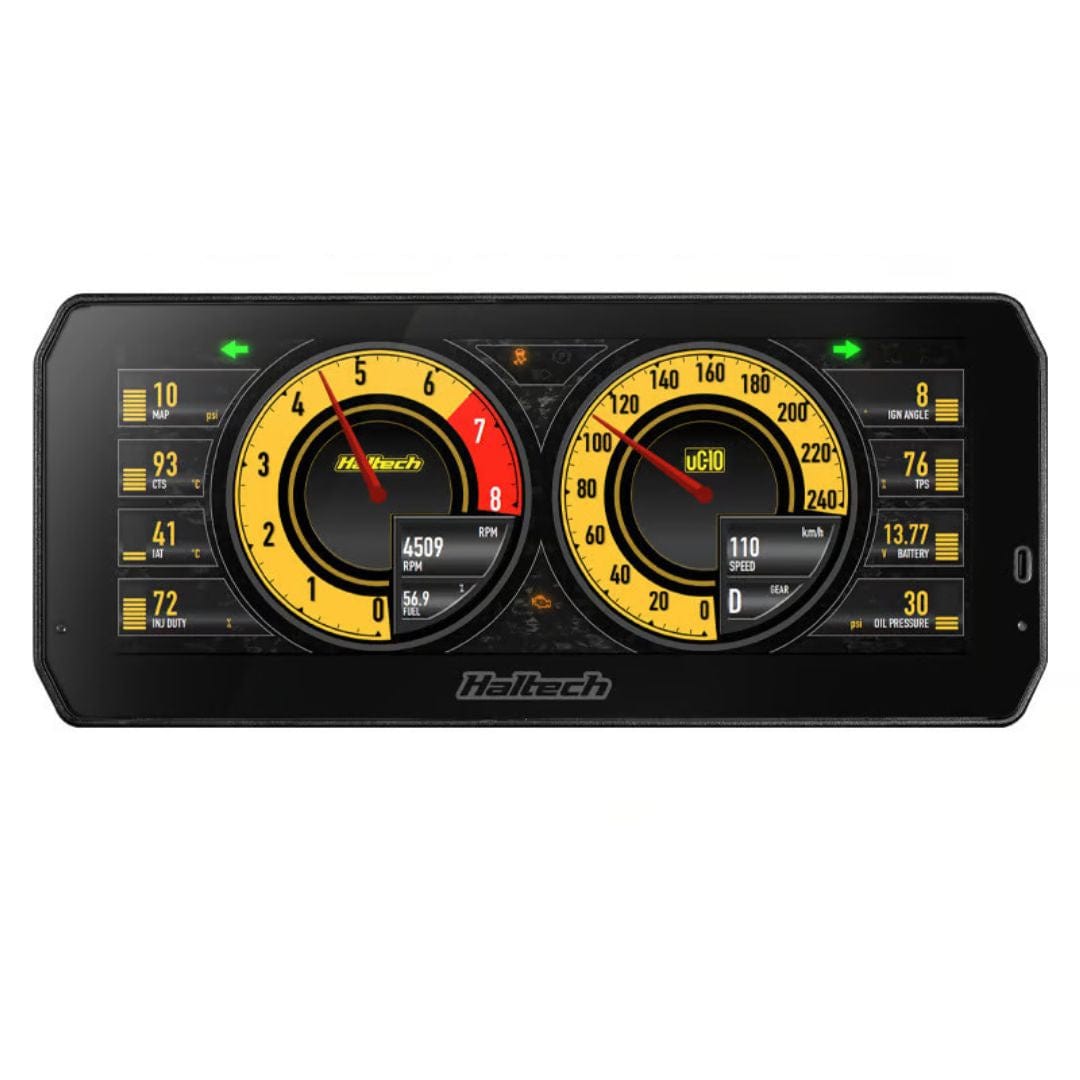

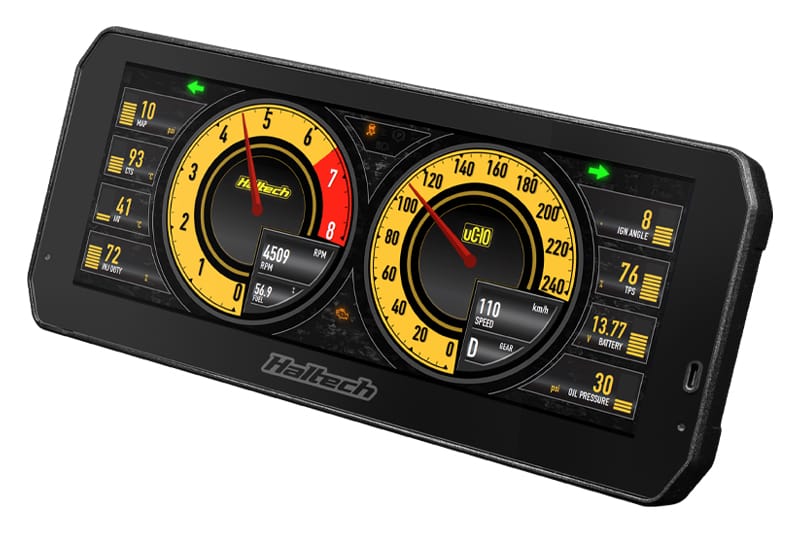

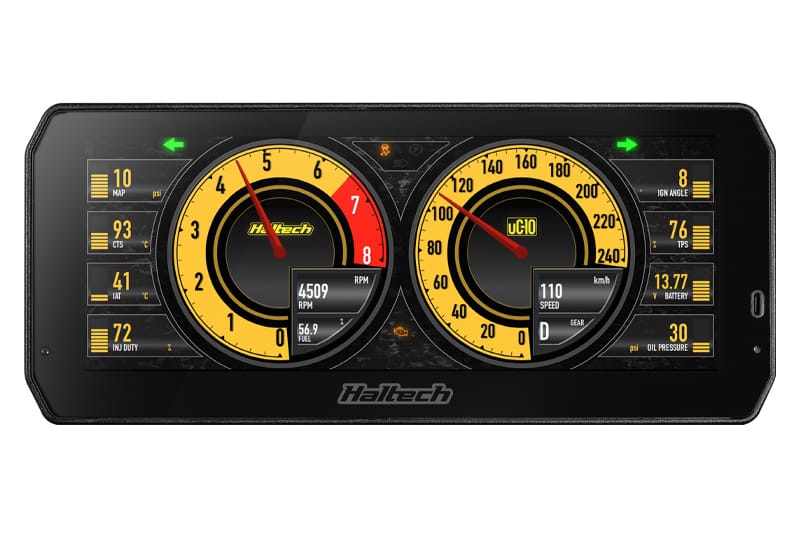

Haltech uC-10 Digital Dash
Size: 10in
Brand: Haltech
Part Number: HT-068000
Description:
DASH OVERVIEW Take full control of your vehicle's data with the Haltech uC-10 Display Dash.
Suits
- All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following generic aftermarket ECU protocols: Hondata, Link G4, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

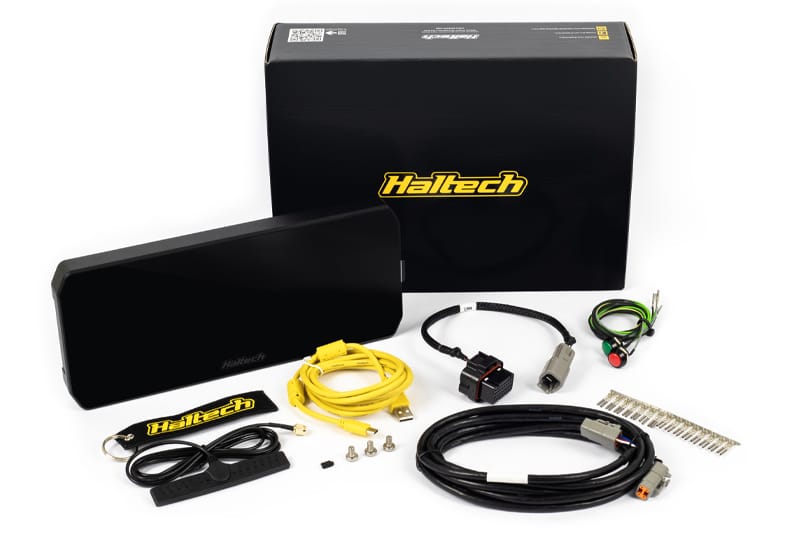

What's in the Box
- 1 x Haltech uC-10 Digital Dash, 1 x 34P connector - same as HT-131001, 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in), 1 x USB-C cable, 3 x M5 x 8mm mounting screws, 2 x Momentary switches, pre-terminated 800mm 22AWG Cable, 1 x Glass Mount Wi-Fi antenna (Wi-Fi 2.4GHz), 1 x Haltech fabric keytag, Quick Start Guide, Haltech stickers.
Specifications
-
Universal: Yes
-
Display Size: 10-inch, optically bonded overlay
-
Resolution: 1280x480
-
Viewing Angle: 70° Minimum (vertical and horizontal)
-
Luminance: 600+ lumens (dimmable)
-
Dimensions: 291.2mm x 126.0mm x 26.0mm (excluding rear connectors)
-
Signal type: Composite Video (CVBS)
-
Supported formats: NTSC 720 x 480 / PAL 720 x 576
-
Image manipulation: Mirror and rotation 0/90/180/270°
-
Dedicated power output: 12V / 500mA
-
CAN: Haltech, OBD-II, or supported third party ECU
-
USB: USB-A (laptop) to USB-C (dash) connection
-
Wi-Fi: Yes (2.4 GHz)
-
Operating Voltage: 6.5V to 20.0V
-
Ambient Temperature: -10°C (14°F) to +80°C (176°F)
-
Onboard Datalogging: 512MB
-
Odometer: 6 digits
-
IP Rating: IP64 (Dust-tight and protected against water splashes)
-
Shift Lights: 14 RGB
-

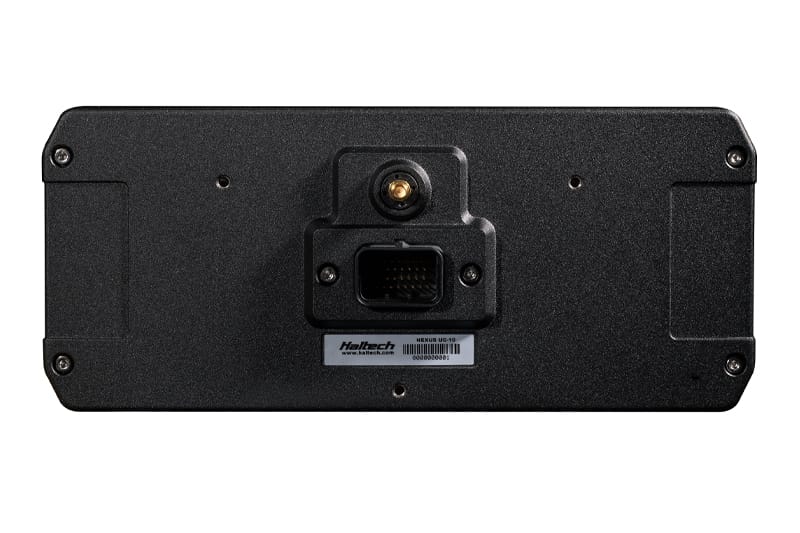

Connectors: 34 Pin AMP Superseal (Type 2 keyway) Female RP-SMA (Wi-Fi Antenna connection)
-
Inputs and Outputs: 10 x Analog voltage inputs (AVIs)
-

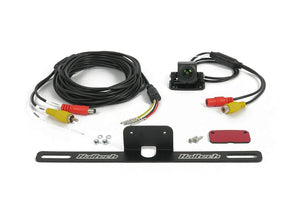

Camera Input: Signal type: Composite Video (CVBS)
-
Communications: CAN (Haltech, OBD-II, or supported third party ECU)
