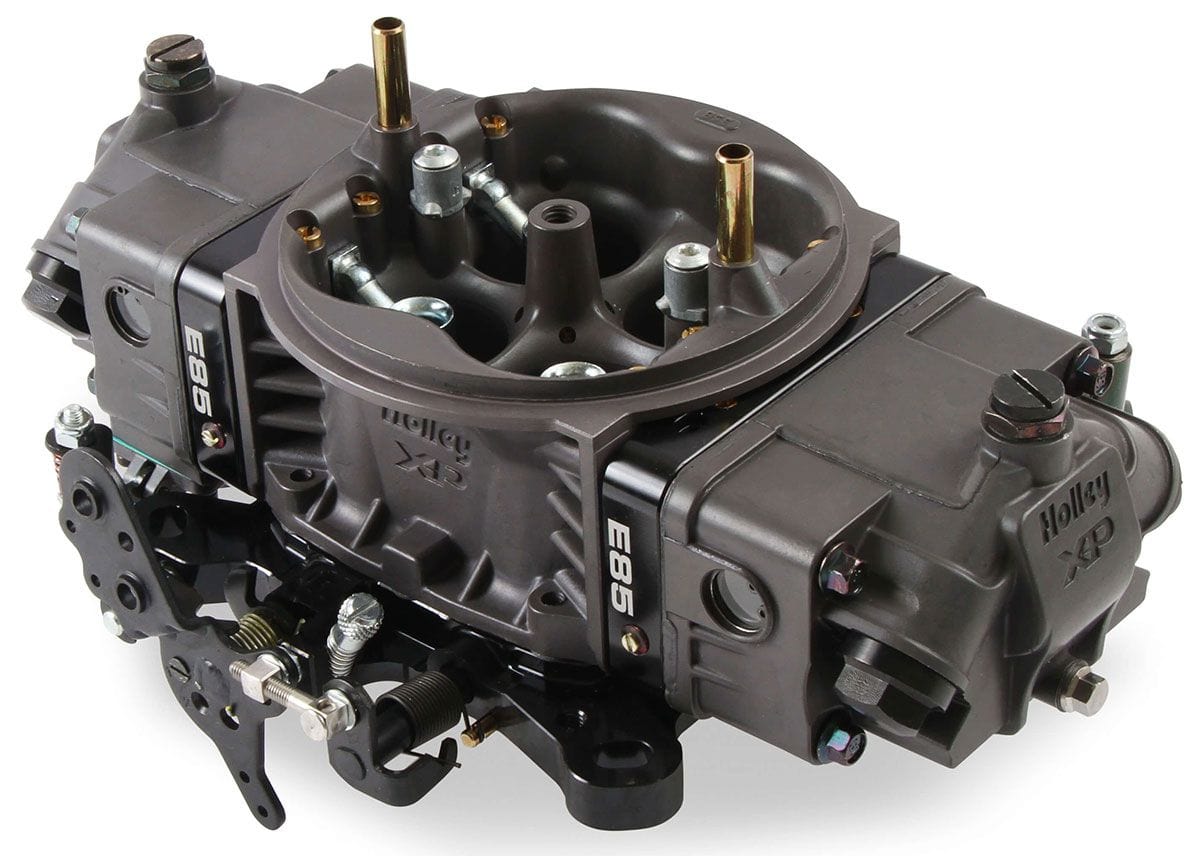

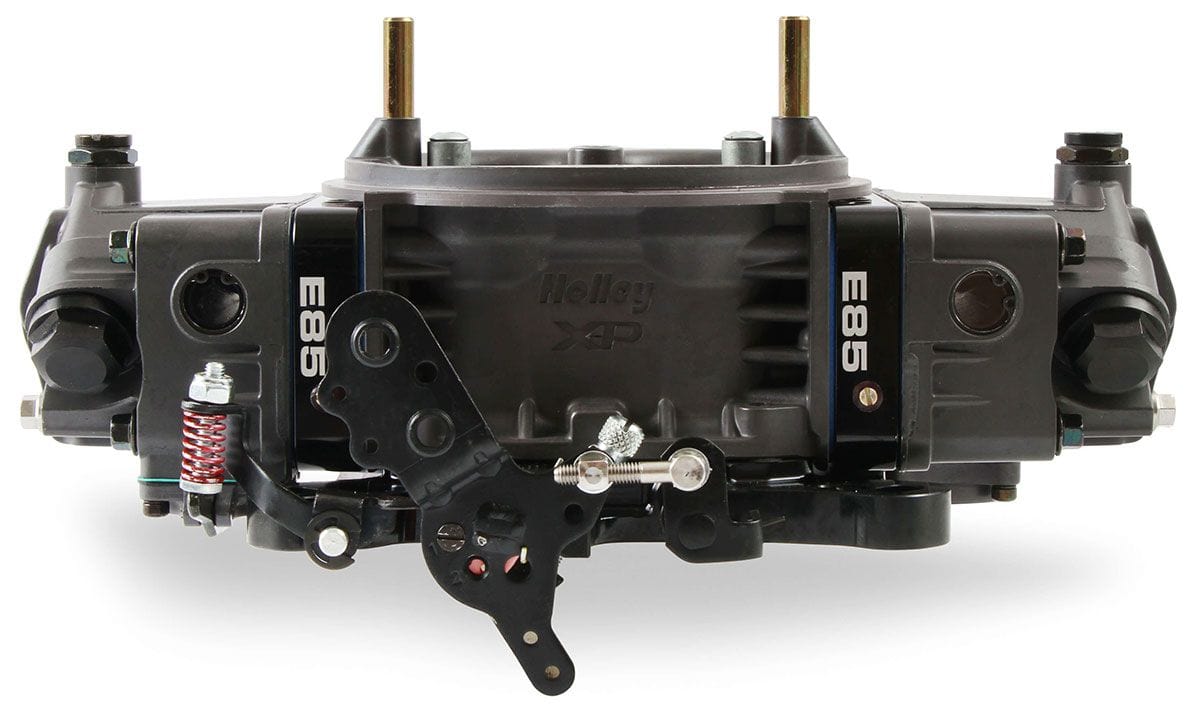

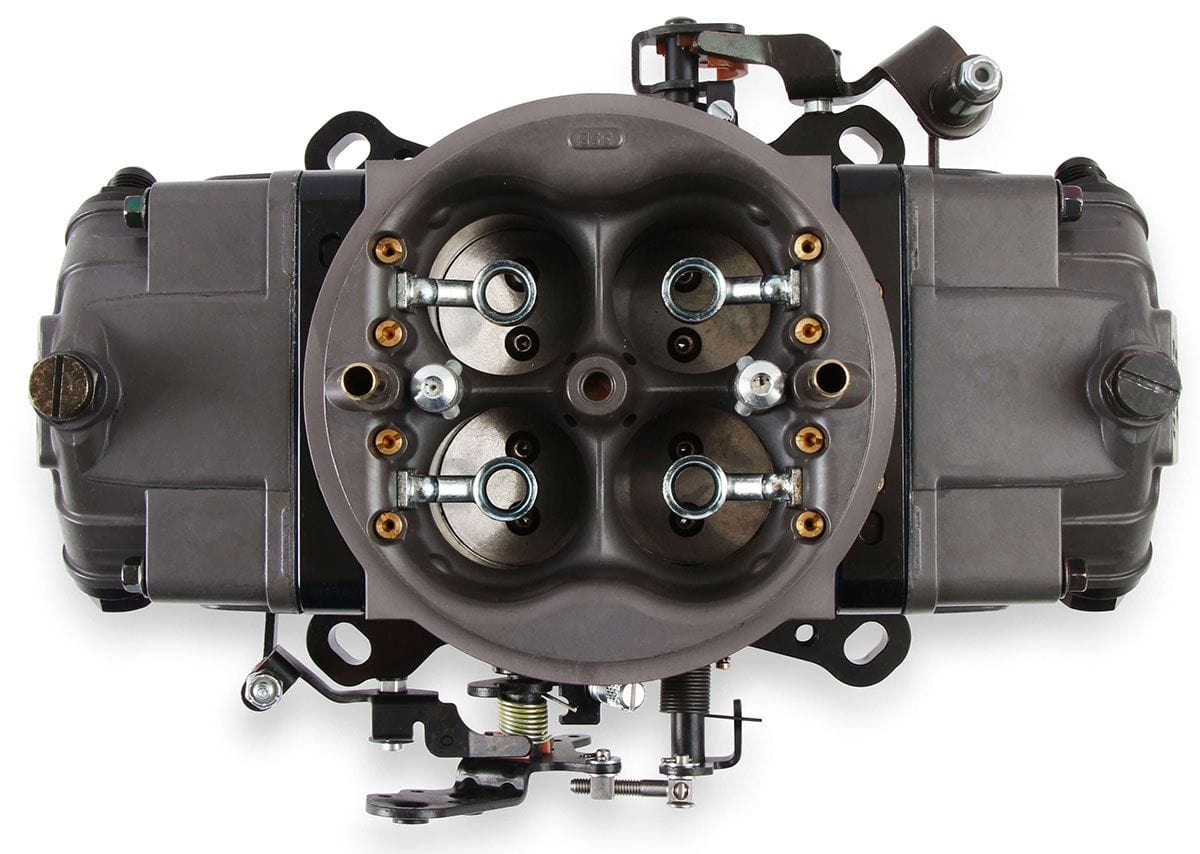

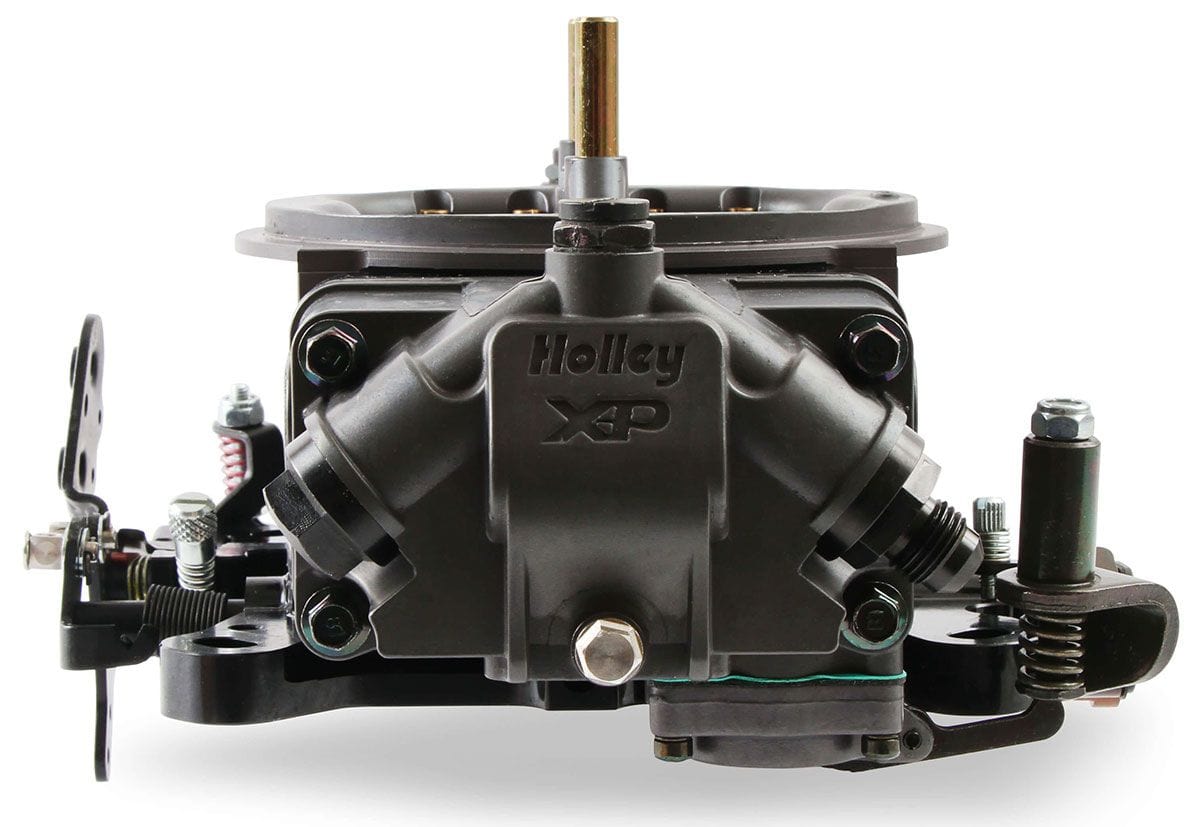

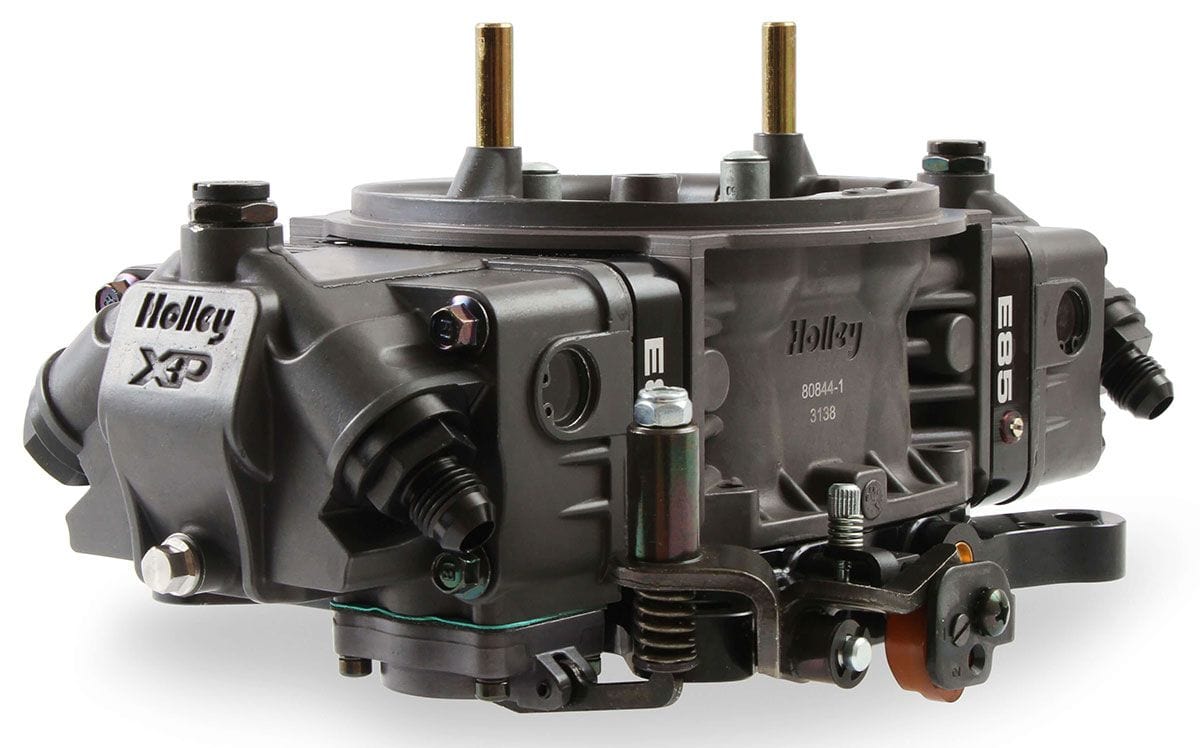

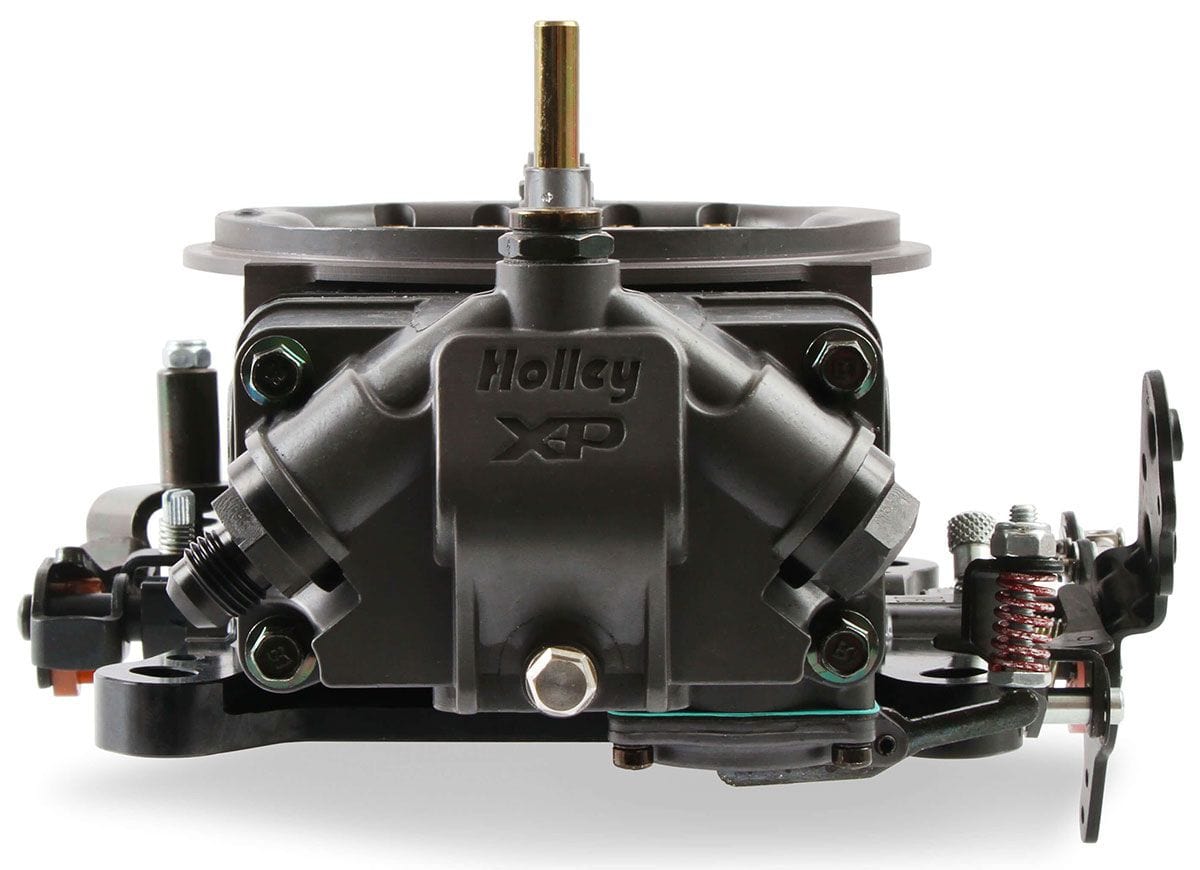

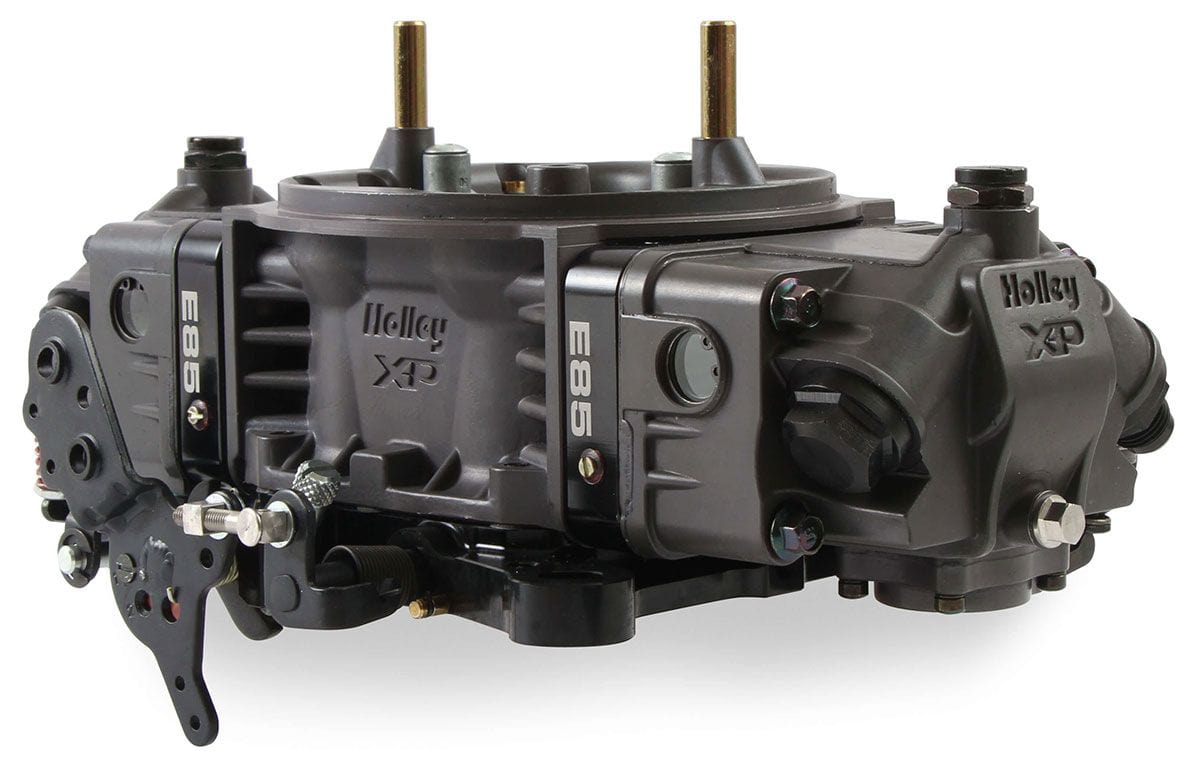

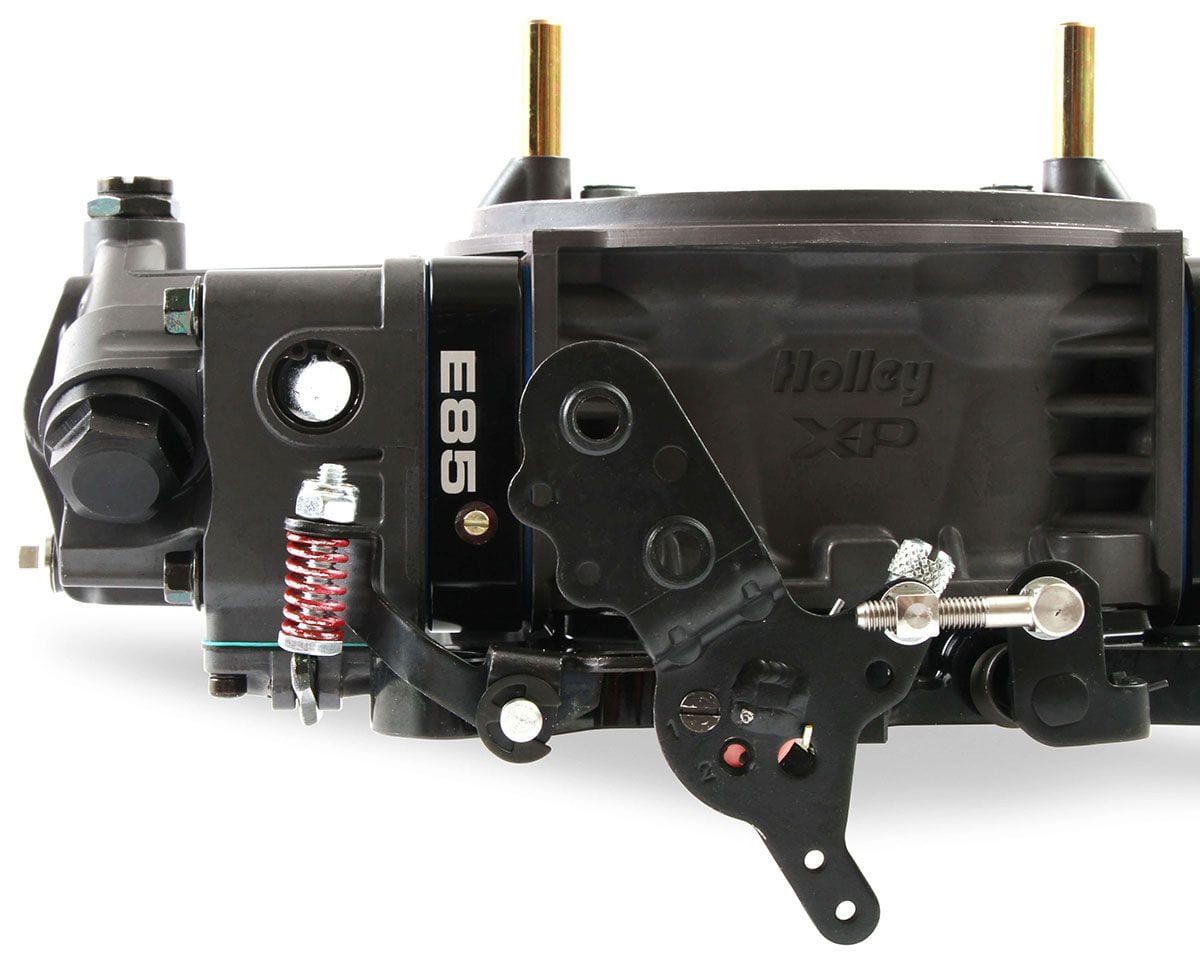

650cfm Ultra XP Aluminium E85 Carburettor
Hardcore Grey with Black Billet Metering Blocks & Base Plates
HO0-80842HBX
0-80842HBX
Xtreme Performance - Holley Ultra XP™ carburetors! Ultra XP carbs are 38% lighter than our original HP, have fuel capacity that is 20% greater and 30 other new features! They’re available in our all-new Hard Core Gray™ hard coat anodized finish with Black™ billet for improved corrosion protection. They’re also available in natural tumble-polished aluminum with your choice of Black™ or Red™ metering blocks and base plate. The Aluminum Ultra XP comes in 600, 650, 750, 850, and True 950-CFM. Holley Ultra XP carburetors offer new features such as an integrated idle bypass valve that allows for idle adjustments while maintaining the correct throttle plate to transfer slot relationship, high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, fully tunable billet metering blocks, billet base plate, adjustable secondary linkage and knurled (hand adjustable) curb idle screws. Holley Ultra XP carburetors are the ultimate in square bore race carburetors!
Features:
Aluminum Construction (saves 4.5 lbs - 38% weight savings)
Hard Core Gray with black anodized billet aluminum metering block and booster inserts
Designed for use on Drag race, circle track, or any high horsepower engines
E85 specific calibration
Contoured venturri inlet offers balanced airflow for increased horsepower
Air bleeds moved outward to allow a smoother transition of airflow from the top of the carburetor into the venturii
Metering blocks feature improved durability, true gasket sealing and fully adjustable (emulsion bleeds, power valve channel restrictors & idle feed restrictors)
Integrate d idle bypass valve eliminates the need for holes in throttle plates and allows for proper adjustment of idle while maintaining correct throttle plate to transfer slot relationship. Helps maintain good idle control when using radical camshafts.
Dual 30cc accelerator pumps provide the perfect amount of fuel from idle to full throttle
Fuel bowls provide 20% more fuel capacity while controlling slosh with internal baffling
Clear sight windows on both sides of bowls for easy and safe fuel level adjustments
Built in drain plug in front center of bowl provides easy access to empty contents of bowl
8AN (o-ringed) inlet threads offer a large variety of plumbing options and can be plumbed from either side
.130" stainless needle & seats to control the demand of E-85
4 corner idle allows you to precisely control your idle system
Mechanical Secondaries for perfect off the line launches

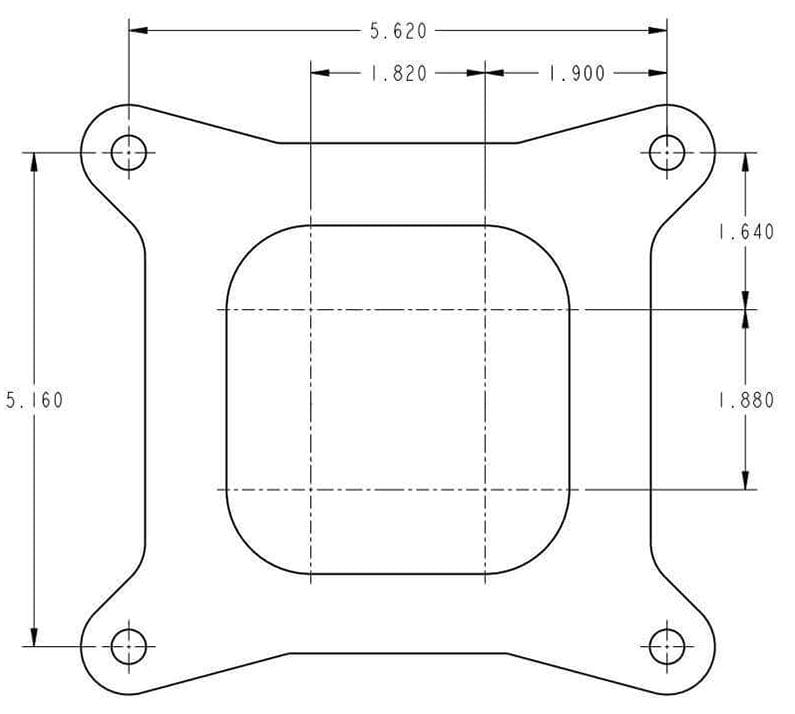

Elongated (dual pattern) mounting holes allow fitment on intakes with square flange (Holley 4150™ style) or large flange (Holley Dominator® style)
Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools
Primary throttle shaft capped to prevent entry of debris & contaminates
Factory machined accessory mounting hole for easy addition of adjustable primary throttle stop. New secondary pump cam lever designed to provide positive throttle stop on secondary side
Stainless steel adjustable secondary link. Provides choice of 1:1 or progressivesecondary throttle actuation for ultimate control of secondary opening rate
Baseplate designed with a boss that can be consumer machined for vacuum source
Stainless steel throttle plates
Includes notched float and jet extensions
100% wet-flow tested by Holley technicians to assure it arrives ready to run!
