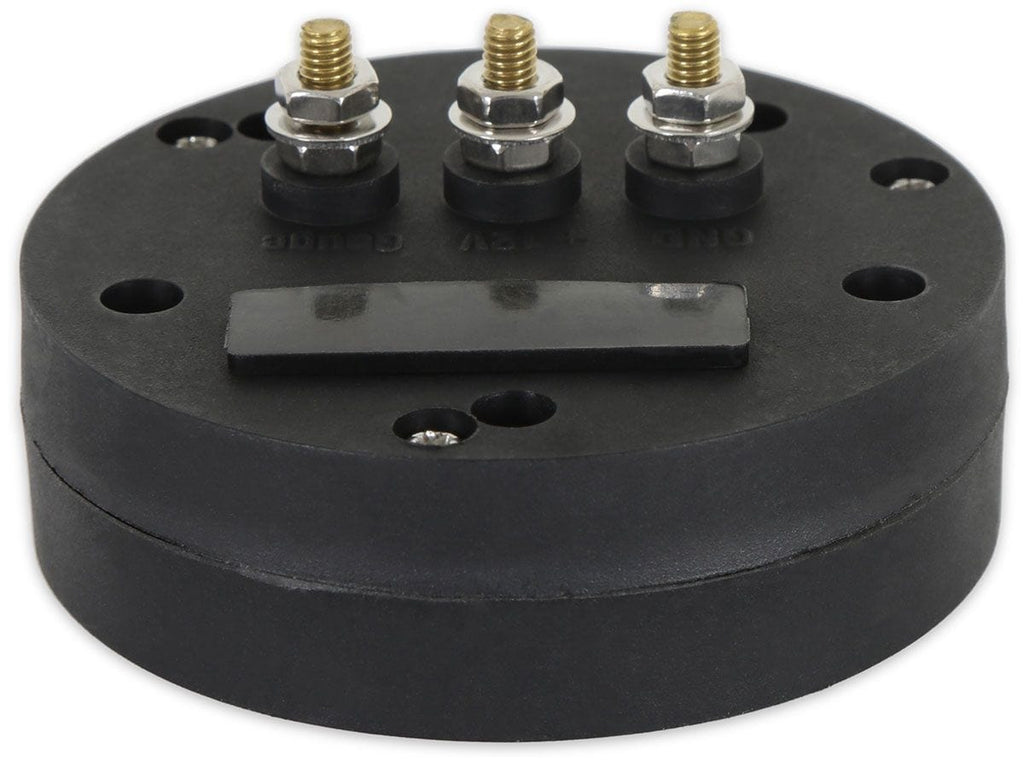

Easy Level Universal Floatless Laser Fuel Level Sender

Holley's all-new Easy Levelsender uses LiDAR technology to precisely measure the depthof fuel remaining in your tankand works with all Classic Instruments' fuel gauges, including short-sweep, full-sweep, and selectable ohmrange fuel gauges. It also works with many other gauge brands. This model is compatible with tanks ranging from 4-to-39-inches. Setup is a breeze with the on-board buttons. Easily set empty and full tank positions, with reserve, right on your workbench before installing and then set the empty, half, and full positions on the gauge. The desired dampening rate is adjusted with dip switches right on the unit to reduce fuel slosh and gauge bounce by adjusting how fast or slow the gauge reacts to the fuel level change. Plus the necessary screws and gasket for installation are included. Upgrade Classic Instruments' or other brands' gauge sets to capture the benefits of LiDAR, "laserimaging, detection, and ranging" technology. Thisexciting and innovative automotive application replaces vulnerable moving parts with a hi-tech laser; technology that has been used successfully in other applications for many years. An instruction sheet is included for Classic Instruments and other standardgauges.

Besides the problems encountered with float setup, hitting baffles or tank wall, this eliminates having to set up the float type sender so saves time and effort.

Max operating temperature of 185 degrees.

• Quicklyreads fuel levels with zero contact
• Easy installation with no moving parts - popular5 bolt flange
• Long life sensor and no failing floats
• Easy to programthe level of any tank and electronic gauge - does not work with OE style gauges thatutilize an ohm only input
• Bolt Circle Diameter (BCD) is 2.122"
• Output is a PWM signal for 12 Volt applications (10 volts to 20 volts maximum)
• Includes mounting hardware and rubber gasket
