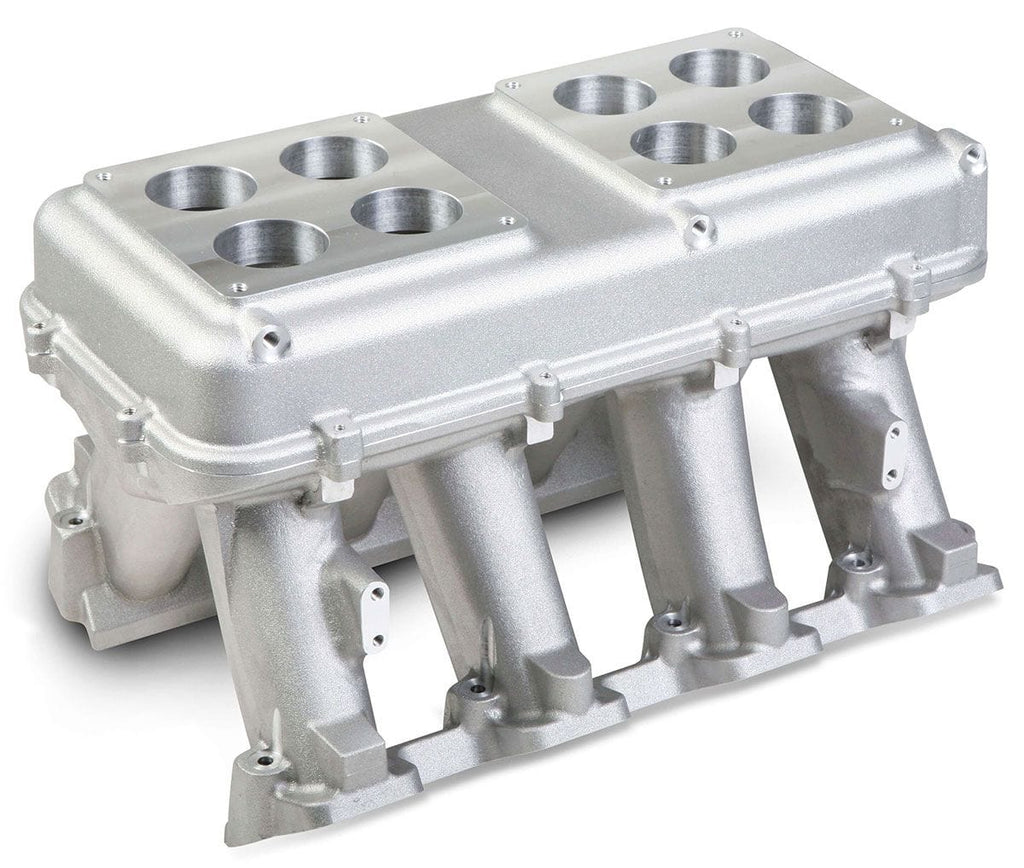

LS3/L92 Hi-Ram Intake ManifoldSuit Dual 4500 Sideways CarburettorMountingBrand: HOLLEYPart Number: HO300-112Description: The Holley GM LS3/L92 Modular Hi-Ram Intake Manifoldis introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinderheads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
- The base is designed to be modular in configuration to accept a widerange of carburetted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
- Runner lengthand the tapered cross-section designed to perform well for awide range of engine configurations
- Cast aluminum construction.
- Intendedfor use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max powerat 7000-8000+RPM.
Features:
- Plenum Top Gasket Type - 3/32" Round O-ring Cord
- Mounting Flange Gasket Type - Standard LS3 Molded O-Ring
- PortSize – 2.49" Height x 1.21" Wide
- Runner Length - 6.50", As-Cast Runner Cross-Sectional Area - Tapered4.25 in² to 2.77 in²

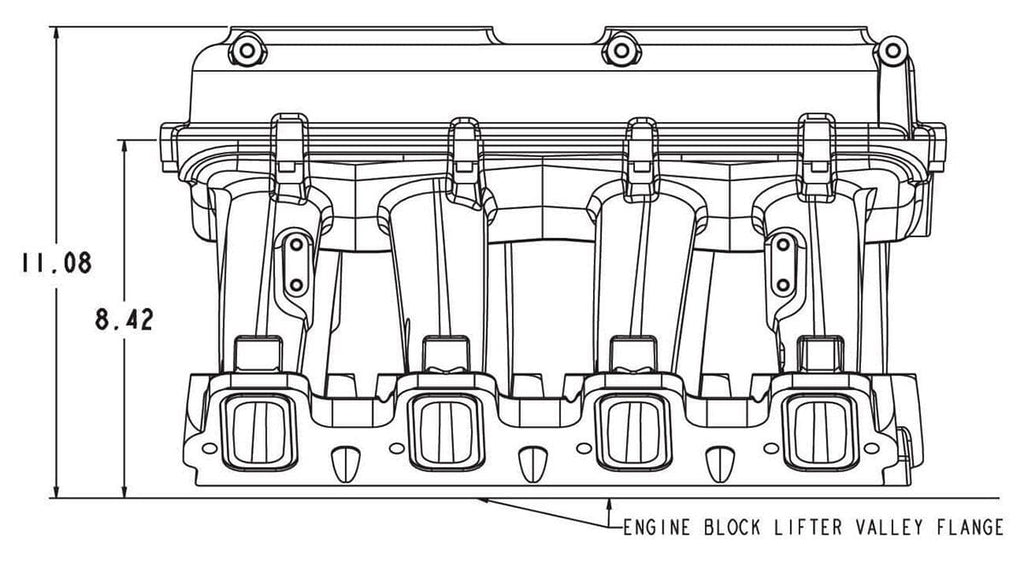

- Base Plenum Top Mounting Flange Height - 8.42" to the lifter valley cover flange on engine block.
- Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08” to the lifter valley cover flange on engine block.
