Holley Oil Pan Windage Tray HO302-11

Holley's popular cast aluminium oil pan (P/N 302-2) designed to retro–fit LS engines into trucks, muscle cars, and more, has just been brought to the next level. Vehicles that endure prolongedsessions of braking, turning, and accelerating need extra protection from oil starvation. That's where the 302-11 oil pan baffle comes in. This oil pan baffle kit isdesigned to maintain proper oil level at the oil pump pick–up during vehicle accelerations, both lateral and linear. The baffle maintains the oil at the oil pump pick–up preventing lossof engine oil pressure during maximum cornering in a high-performance touring or road-racing, as well as under hard acceleration in drag racing vehicles.

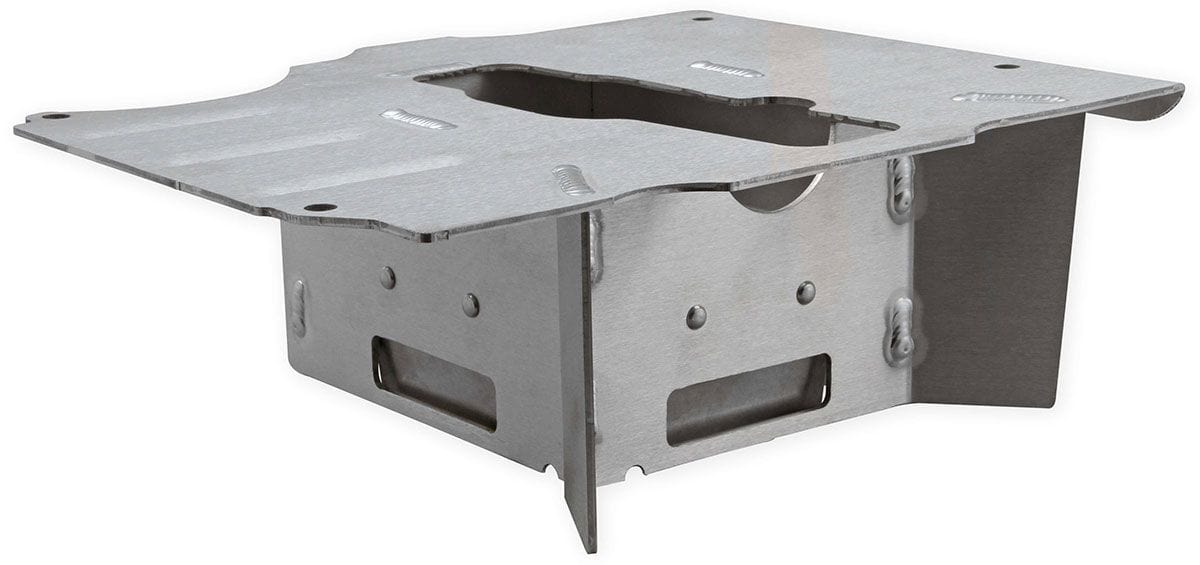

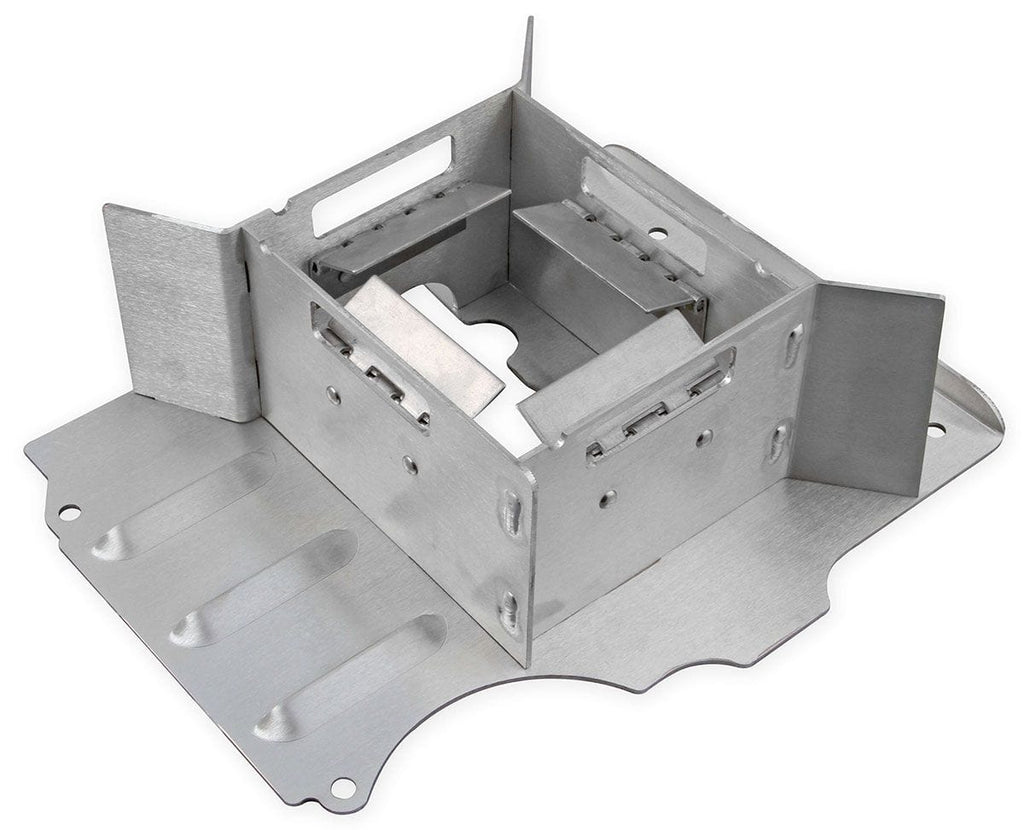

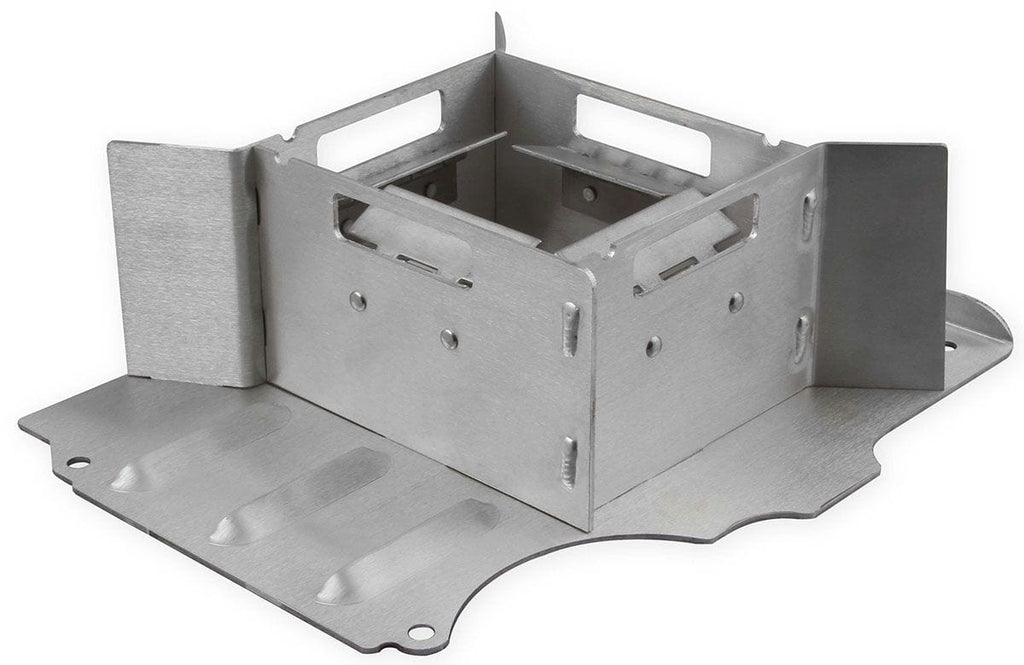

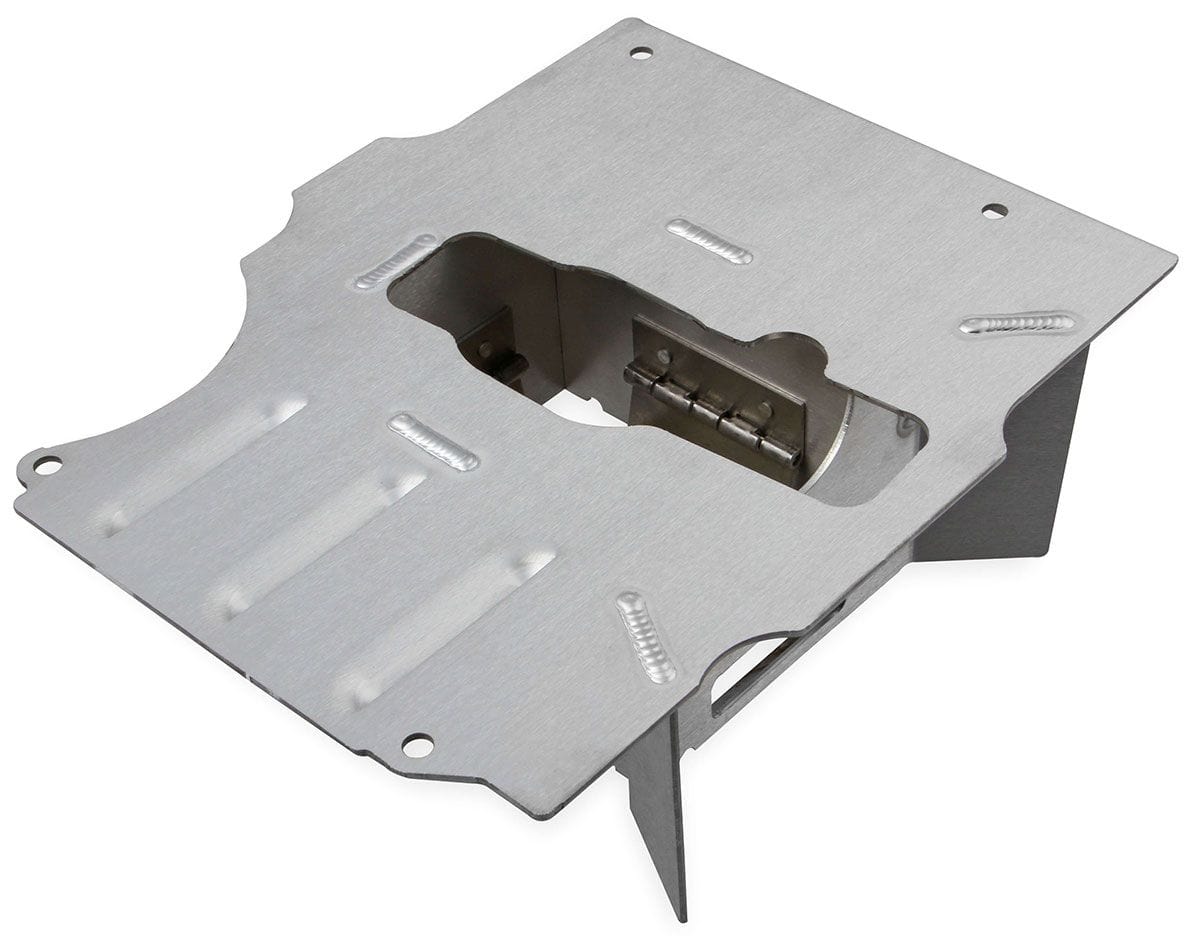

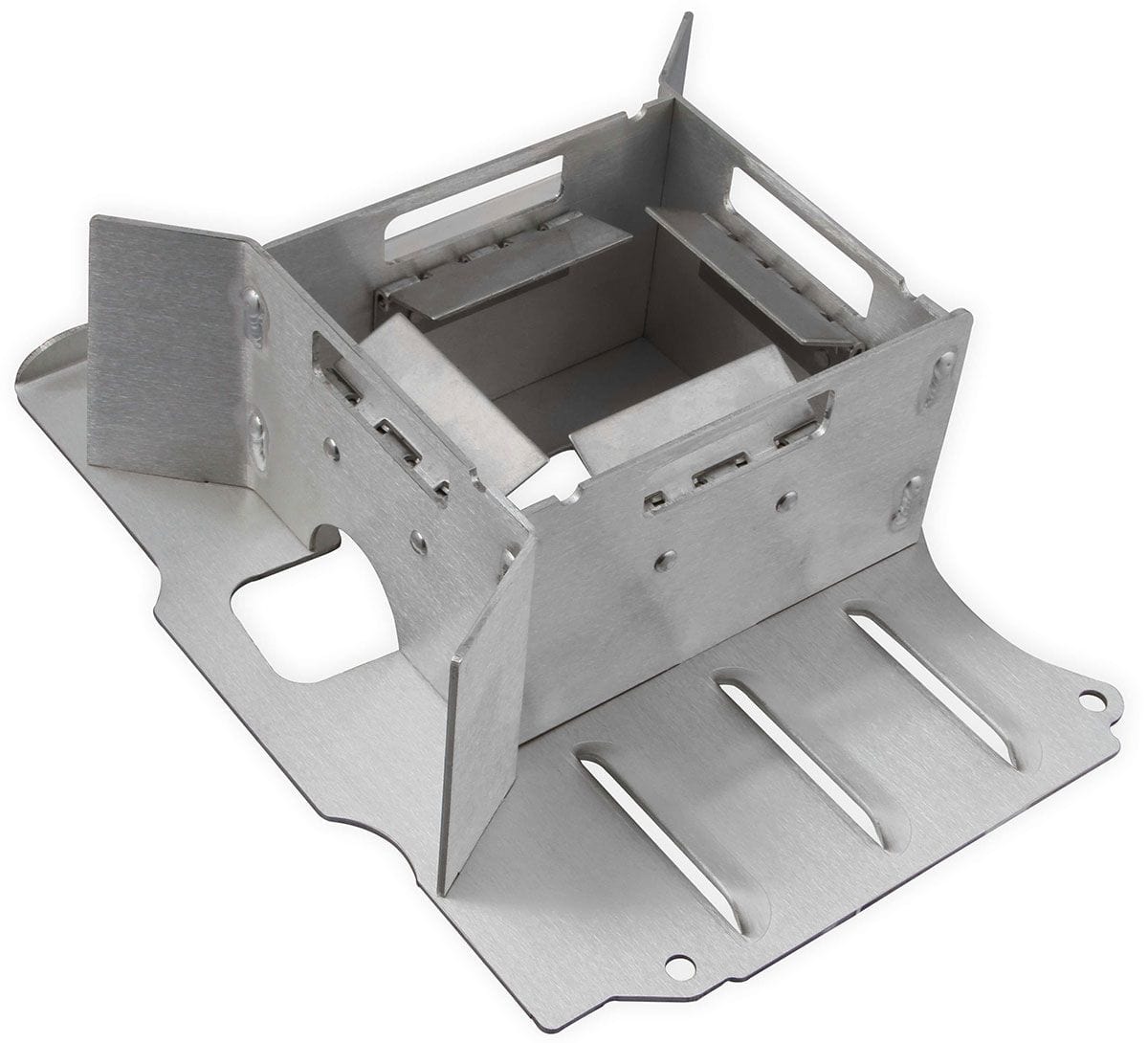

The baffle is fabricated from sheet aluminium joined by TIG welded joints. Directionally positioned one-way trap doors allow oil flow towards the oilpump pick-up but not away. This baffle is designed to be used in the Holley P/N 302-2 LS Swap oil pan with the standard pickup, and is a drop–in replacement for the standard tray baffle.

Developed for Holley by Improved Racing, a leader in oil control products

Features:

• Direct bolt-in to 302-2 HolleyLS Oil Pan
• Aluminium sheet TIG welded construction
• Vertical baffles with one-way trap doors surrounding the oil pumppick-up
• Great for street/road race/drag race/ and off-road applications
