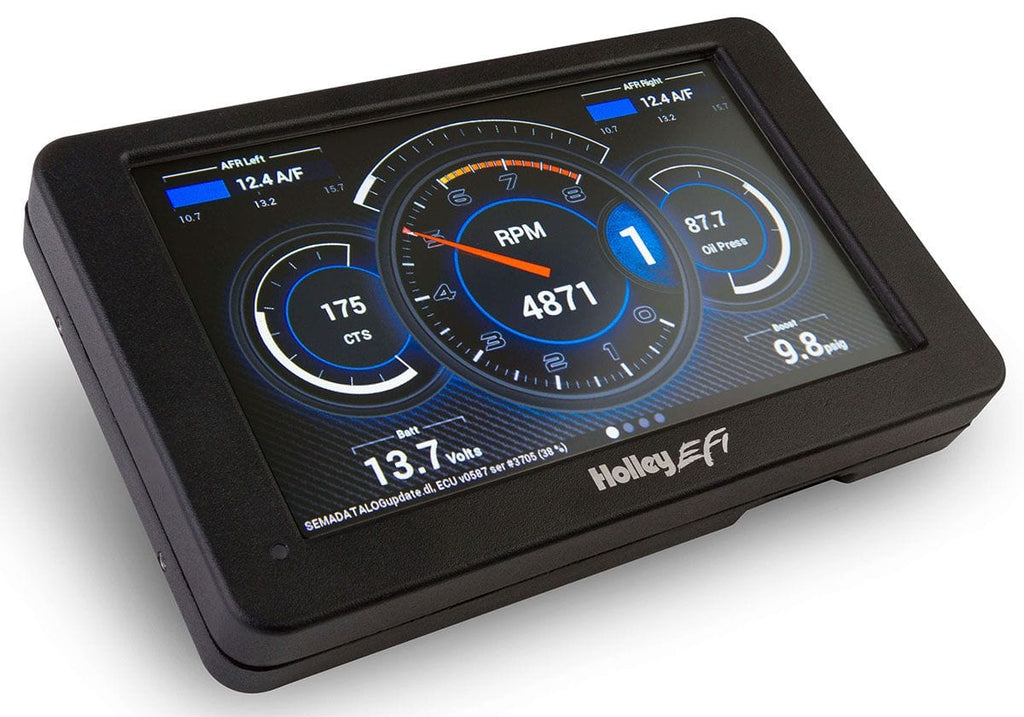

Holley Digital Dash HO553-106

The Holley EFI Digital Dashis completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. The dash also offers a virtual switch panel, user defined alarms, configurable shift lights and can control on screen playbackof your EFI data logs. The Holley EFI Digital Dash measures 7.5" wide, 4.625" tall and 1" deep which makes it a compact, customizable dash for use in a variety of motorsports applications. The Dash features a 7" low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun, plug and play connection to all Holley EFI systems as well as a weather proof aluminium housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance!

Features:

• Plug and play connection to all Holley EFI systems via CAN bus
• Compact, customizable dash for use in avariety of motorsports applications
• 7" low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
• 800x480 resolution with auto brightness
• Operating voltage min 8V - 20V
• Weather proof aluminium housing featuring flexible mounting options
• Completely customizable display of all EFI parameters including everyuser configurable input and output available
• Multiple gauge and indicator types withlimitless customization options
• Quickly togglebetween multiple active screens (tune, warm-up, race, drive, etc.)
• Virtual Switch Panel (replaces the need for physical switches)
• User definedalarms for any input
• Configurable progressive shift lights and light bar
• Control and on screen playback of EFI datalogs
• Download and saveHolley EFI data logs to external USB memory stick
• Expandable internal storage on micro SD card
• Support for future USB devices
• Upgradable with future software enhancements
• Optional harness available to add physical inputs and outputs tothe dash that can be used to perform multiple operations
