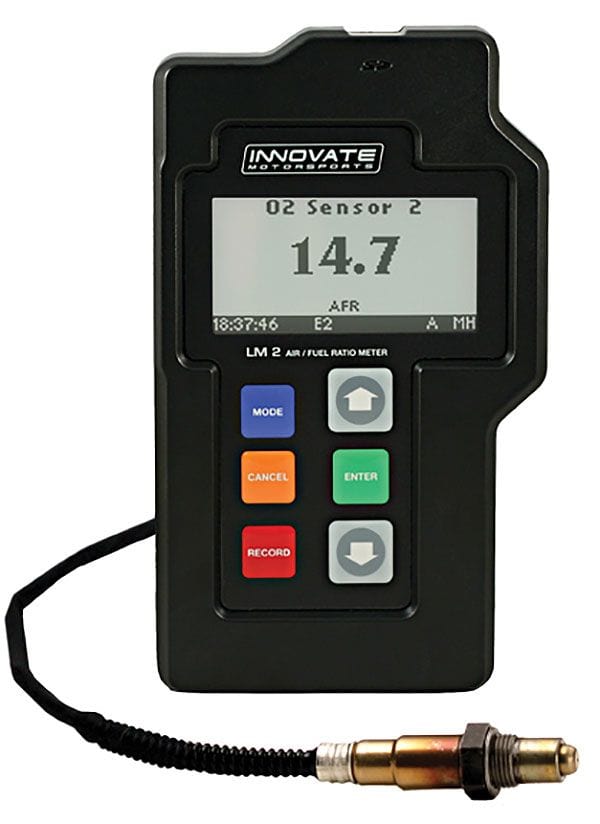

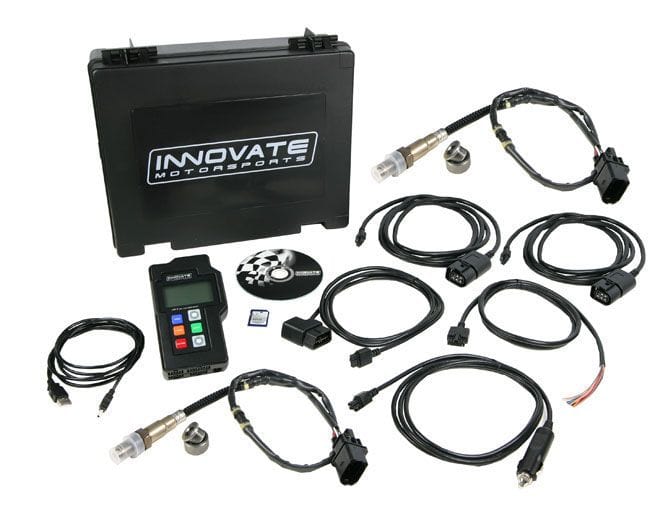

LM-2 Digital Air/Fuel Ratio KitDual Channel With O2 Sensor & OBD-II/CAN Scan ToolBrand: INNOVATEPart Number: IM3807Description: The LM-2 combines an air/fuel ratio meter, a full-function 32-channel datalogger, and powerful software to deliver a completetuning workshop for less than the cost of one dyno day. Whether you have a piggy-back fuel controller, race carb, aftermarket ECU, ODB-II tuningsoftware, or a flash/chip programmer, an LM-2 is the tool you need to dial in maximum HP. The meter’s award-winning digital signal processing technology providesdata on exactly how rich or lean an engine is running at any load. The LM-2's self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition.
- Patented"Direct Digital" Wideband Technology
- Wideband O2Compatible with ALL fuel types
- Single or Dual Channel A/F Version Available
- OBD-II Scan tool- read/clear DTCs and log up to 16 channels of CAN OBD-II Data
- Log directly to SD card
- Playback log dataon screen and/or with powerfulLogWorks software (included)
- Large high-contrast graphics LCD
- Built-in RPM converter (direct frequency orwith optional inductive clamp)
- 4 fully-differential analog inputs
- 2 configurable linear analog outputs
- Positive lock connectors for all connections
- Innovate MTS serial IN and OUT
- USB connection to your PC
The LM-2 also features two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs. With the provided LM Programmer software these analog outputs may also be defined by the user.
