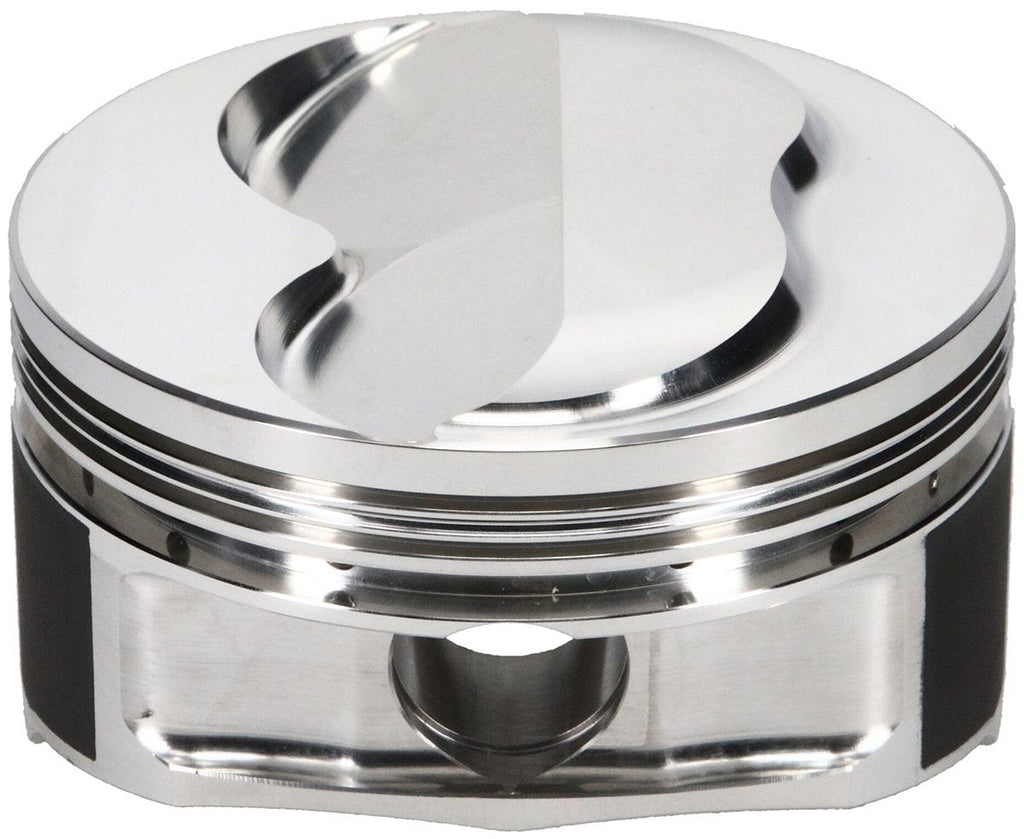

Ford 302W Stroker SVO/Dart Block - Big Bore Forged Piston364 c.i., 4.125" bore, 3.400" stroke, 5.400" rod length, 6.5cc dome volumeBrand: JEPart Number: J232475Description: Designed for use in aftermarket race blocks, these big bore pistons will accommodate larger valves and long-duration, tight lobe separation cams. Compatible with most 20° wedge cylinder heads and will accept moderate nitrous. Precision CNC machined ring grooves accept 1/16", 1/16", 3/16" rings. Pin upgrade recommended above 700hp. Recommended ring set contains low tension oil ring; for standard tension, change ring prefix to J100F8. Hardened Nitrous Series (HNS) rings also available, changed ring prefix to J820F8.
Includes:
- Pin #927-2750-15-51S (130g)
- Double Spiro locks #927-042-CS
- Double pin oilers
Specifications :
- Part #: J232475
- CID: 364
- Bore: 4.125
- Stroke: 3.400
- Rod Length: 5.400
- Block Height: 8.200
- ssion Height: 1.100
- Compression Ratio with 56cc chamber volume: 13.6
- Compression Ratio with 60cc chamber volume: 12.8
- Compression Ratio with 64cc chamber volume: 12.1
- Dome Volume: 6.5cc
- Gram Weight: 438
- Footnote: Solid dome design, Oil Rail Support is Included
- Oversize: STD
- Recommended Ring Set (Check Proseal listing to determine oil ring tension): J10008-4125-5
