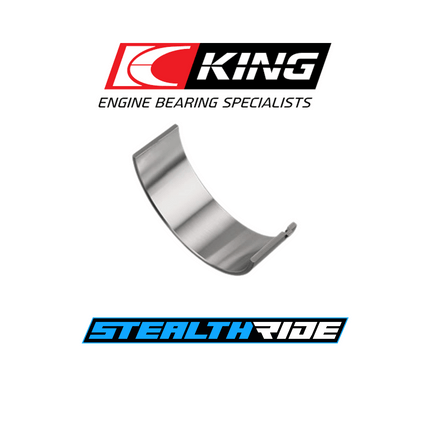

King HP Rod Bearings N STDX Ford Mustang 1996-2026 4.6L SOHC DOHC 5.0L Coyote Gen 1 2
Brand: King Bearings
Part Number: CR 868HPN STDX
Description:
King Bearings HP Rod Bearings N STDX Mustang GT 96-17 4.6L 5.0L Coyote Gen 1 2
Description: FORD V8, 4.6L/5.4L Modular 5.0L Coyote Gen 1 & 2
Bearing Types:
MB - Main bearing set
CR - Con Rod bearing set
CS - Camshaft bearing set
TW - Thrust washer set
Material construction:
HP - Bi-metal aluminum Silicon Alloy
XP - Tri-metal copper lead
Bearing Features:
N - Narrowed
D - Dowel
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals.001" extra Clearance
| Bearing Size Inches |
STDX |
STD |
.001" |
010X |
.010" |
.011" |
020X |
.020" |
.021" |
.030" |
| Bearing Size metric |
STDX |
STD |
.025 |
|
.25 |
|
|
0.5 |
|
0.75 |
| Crankshaft undersize |
0 |
0 |
0 |
-.010" |
-.010" |
-.010" |
-.020" |
-.020" |
-.020" |
-.030" |
| Additional Shell Thickness (on nominal) |
-.0005" |
0 |
+.0005" |
+.0045" |
+.005" |
+.0055" |
+.0095" |
+.010" |
+.0105" |
+.015" |
HP Series
Metal structure: Bi-metal aluminum silicon alloy.
Race type: Drag racing, tractor pulls, monster trucks
Circle track (engines using nodular cast iron crankshaft)
Load Capacity: 8,000 PSI
Melting Temp: 450F
Engine requirements: High load - Short duration
or
Medium load - long duration (engines using nodular cast iron crankshaft)
HP is a Bi-Metal bearing series that was developed mainly for drag race applications needing a material that is harder than the Babbitt top layer.
HP series is particularly suitable for the following cases:
- When a tri-metal bearing’s Babbitt overlay extrudes over the sides or migrates to one end
- When the intermediate layer of a tri-metal bearing is exposed, damaging the crank journal
- When contaminants enter the oil stream, scratching and damaging the crankshaft journals
Fitment
-
Make: Ford
-
Model: Mustang GT 11-14 S197, Mustang GT 15-17 S550, Mustang GT 18-23 S550
-
Engine: 5.0L Coyote Gen 1, 5.0L Coyote Gen 2, 5.0L Coyote Gen 3
Specifications
-
Old Part Number: CR868HPN STDX
-
Note: Narrow
-
Bearing Class: Non-Race
-
Bearing oversize: HX (Extra Oil Clearance)
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
