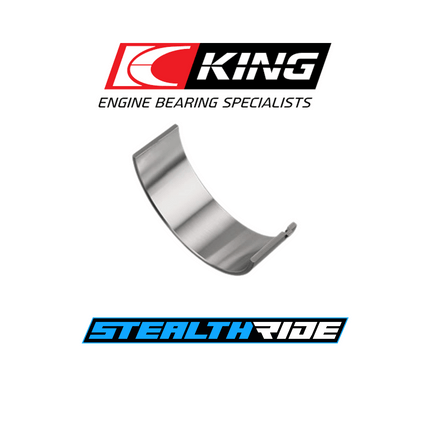

King Bearings Main Bearings .026 NISSAN SR20DE, SR20DET, 16v
Brand: King Bearings
Manufacturer's Part Number: MB5243XP.026
Stealth Ride Part Number: MB5243XP.026
UPC: 611500608735
Description:
The XP Tri-Metal Racing Series Successful race engine builders are constantly pushing the limits of load capacity to new levels. Race bearings today inevitably need to match these demands with more competitive bearings. At King Racing we met the challenge with the XP high performance bearings series.
The XP series is a line of bearings with advanced metallurgical and geometric technologies that meet extreme performance loads. It was developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods.
King Racing’s XP series features pMax Black™, a unique tri-metal structure that is 24% harder than any other conventional tri-metal race bearing. pMax Black™ together with the XP geometric features are the ideal combination for performance racing. For more on King Racing technologies visit TechLab
Description: For NISSAN SR20DE, SR20DET, 16v
Bearing Types:
MB - Main bearing set
Material construction:
XP - Tri-metal copper lead
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals .001" extra Clearance
| Bearing Size Inches | STDX | STD | .001" | 010X | .010" | .011" | 020X | .020" | .021" | .030" |
| Bearing Size metric | STDX | STD | .026 | | .25 | | | 0.5 | | 0.75 |
| Crankshaft undersize | 0 | 0 | 0 | -.010" | -.010" | -.010" | -.020" | -.020" | -.020" | -.030" |
| Additional Shell Thickness (on nominal) | -.0005" | 0 | +.0005" | +.0045" | +.005" | +.0055" | +.0095" | +.010" | +.0105" | +.015" |
More Information | Barcode | 611500608735 |
| UPC Code | 611500608735 |
| Old Part Number | MB5243XP.025 |
| Shipping Weight (Dimensional) | 1.000000 |
| Clearance Sale | No |
| Availability | Back Ordered |
| Part Type | Main Bearings |
| Make | Nissan / Infiniti |
| Model | 180SX 89-90 S13, 240SX 89-94 S13, 240SX 95-98 S14, Sentra 00-06 B15, Sentra 91-94 B13, Sentra 95-99 B14, Silvia 89-94 S13, Silvia 95-98 S14, Silvia 99-02 S15, X-Trail GT 01-07, Bluebird 97-00 U14 |
| Engine | SR20DET, SR20VE, SR20VET |
| Brand | King Bearings |
| Competitor Interchange Part Number | 5M2964H-.026 MS-2015H 7375M |
| Bearing Class | Race |
| Bearing oversize | 0.001" / 0.026mm |
| Carb Legal | Unspecified |
| Shipping Label | |
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
