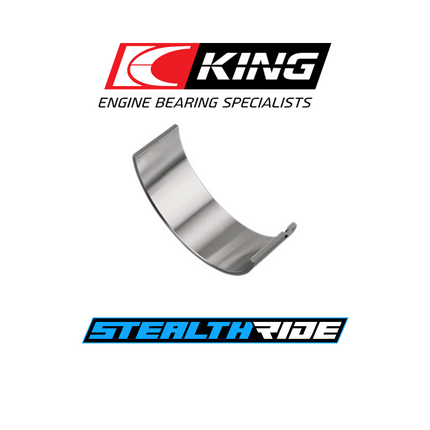

King Bearings Main Bearings Set STD Toyota 4AGE, 4AGZE, 16v 1.6L
Brand: King Bearings
Manufacturer's Part Number: MB5527XP
Stealth Ride Part Number: MB5527XP
UPC: 611500553028
Description:
The XP Tri-Metal Racing Series Successful race engine builders are constantly pushing the limits of load capacity to new levels. Race bearings today inevitably need to match these demands with more competitive bearings. At King Racing we met the challenge with the XP high performance bearings series.
The XP series is a line of bearings with advanced metallurgical and geometric technologies that meet extreme performance loads. It was developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods.
King Racing’s XP series features pMax Black™, a unique tri-metal structure that is 24% harder than any other conventional tri-metal race bearing. pMax Black™ together with the XP geometric features are the ideal combination for performance racing. For more on King Racing technologies visit TechLab
Description: For TOYOTA 4AGE, 4AGZE, 16v 1.6L
Bearing Types:
MB - Main bearing set
Material construction:
XP - Tri-metal copper lead
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals .001" extra Clearance
| Bearing Size Inches | STDX | STD | .001" | 010X | .010" | .011" | 020X | .020" | .021" | .030" |
| Bearing Size metric | STDX | STD | .025 | | .25 | | | 0.5 | | 0.75 |
| Crankshaft undersize | 0 | 0 | 0 | -.010" | -.010" | -.010" | -.020" | -.020" | -.020" | -.030" |
| Additional Shell Thickness (on nominal) | -.0005" | 0 | +.0005" | +.0045" | +.005" | +.0055" | +.0095" | +.010" | +.0105" | +.015" |
More Information | Availability New | In Stock / Available |
| Barcode | 611500553028 |
| UPC Code | 611500553028 |
| Shipping Weight (Dimensional) | 0.560000 |
| Clearance Sale | No |
| Availability | Available |
| Part Type | Main Bearings |
| Make | Toyota / Lexus |
| Model | Corolla GTS 89-91 E90, Corolla All-Trac 88-92 E90, Corolla FWD 91-92 E90, Corolla 93-97 E101, Corolla JDM 91-95 AE101, MR2 85-87 W10, MR2 88-89 W10 |
| Engine | 4A-GZE, 4A-FE, 4AG 16V, 4AG 20V Gen 4, 4AGE |
| Brand | King Bearings |
| Competitor Interchange Part Number | 5M1695H MS-1638P 6680M |
| Bearing Class | Race |
| Bearing oversize | STD (Standard) |
| Carb Legal | Unspecified |
| Shipping Label | |
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
