King XP Main Bearings STD 180SX S13 240SX S13 S14 Sentra B13-B15 Silvia S13 S14 SR20DET
Brand: King Bearings
Part Number: MB5243XP
Description:

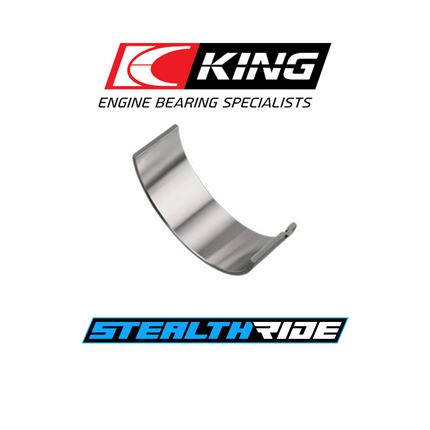

King Bearings Main Bearings STD SR20DE SR20DET 16v 200SX Sentra
Description: NISSAN SR20DE, SR20DET, 16v
Bearing Types:
MB - Main bearing set
CR - Con Rod bearing set
CS - Camshaft bearing set
TW - Thrust washer set
Material construction:
HP - Bi-metal aluminum Silicon Alloy
XP - Tri-metal copper lead
Bearing Features:
N - Narrowed
D - Dowel
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals.001" extra Clearance
| Bearing Size Inches |
STDX |
STD |
.001" |
010X |
.010" |
.011" |
020X |
.020" |
.021" |
.030" |
| Bearing Size metric |
STDX |
STD |
.025 |
|
.25 |
|
|
0.5 |
|
0.75 |
| Crankshaft undersize |
0 |
0 |
0 |
-.010" |
-.010" |
-.010" |
-.020" |
-.020" |
-.020" |
-.030" |
| Additional Shell Thickness (on nominal) |
-.0005" |
0 |
+.0005" |
+.0045" |
+.005" |
+.0055" |
+.0095" |
+.010" |
+.0105" |
+.015" |
Metal Structure: Tri-metal copper lead.
Race Type: Circle track, Off-road, off-shore, others that require steel crankshafts.
Engine requirements: High load - Long Duration.
HIGHER LOAD CAPACITY
The only bearing with load capacity of 17,000psi in the intermediate and 10,200psi in the overlay
BETTER FATIGUE RESISTANCE
The only bearing that goes through a hardening process creating a black fatigue resistance shield, which makes the overlay 24% stronger than any other bearing (11.5hv vs 14.5hv)
MORE ACCURACY
The only bearings with wall thickness variation of ±.0001” as a standard in comparison to ±0.00025”.
MORE CONSISTENCY
from bearing to bearing, requiring less adjustment during assembly
ONE SET FITMENT
The only bearings that don’t require you to buy multiple sets to achieve desired oil clearance
Fitment
-
Make: Nissan / Infiniti
-
Model: 180SX 89-90 S13, 240SX 89-94 S13, 240SX 95-98 S14, Sentra 00-06 B15, Sentra 91-94 B13, Sentra 95-99 B14, Silvia 89-94 S13, Silvia 95-98 S14, Silvia 99-02 S15, X-Trail GT 01-07, Bluebird 97-00 U14
-
Engine: SR20DET, SR20VE, SR20VET
Specifications
-
Competitor Interchange Part Number: 5M2964H MS-2015H 7375M
-
Bearing Class: Race
-
Bearing oversize: STD (Standard)
-
Product Flags: sale
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
