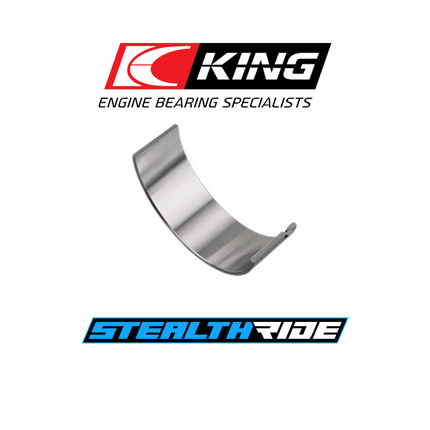

King XP Race Main Bearings STD 3S-GTE Gen 2 SW20 ST185 3S-GTE Gen 3 JDM SW20 ST205
Brand: King Bearings
Part Number: MB5554XP
Description:
King Bearings Main Bearings STD TOYOTA MR2 Celica 3SGTE 16v 2.0L
Description: TOYOTA 3SGTE, 16v 2.0L
Bearing Types:
MB - Main bearing set
CR - Con Rod bearing set
CS - Camshaft bearing set
TW - Thrust washer set
Material construction:
HP - Bi-metal aluminum Silicon Alloy
XP - Tri-metal copper lead
Bearing Features:
N - Narrowed
D - Dowel
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals.001" extra Clearance
| Bearing Size Inches |
STDX |
STD |
.001" |
010X |
.010" |
.011" |
020X |
.020" |
.021" |
.030" |
| Bearing Size metric |
STDX |
STD |
.025 |
|
.25 |
|
|
0.5 |
|
0.75 |
| Crankshaft undersize |
0 |
0 |
0 |
-.010" |
-.010" |
-.010" |
-.020" |
-.020" |
-.020" |
-.030" |
| Additional Shell Thickness (on nominal) |
-.0005" |
0 |
+.0005" |
+.0045" |
+.005" |
+.0055" |
+.0095" |
+.010" |
+.0105" |
+.015" |
Metal Structure: Tri-metal copper lead.
Race Type: Circle track, Off-road, off-shore, others that require steel crankshafts.
Engine requirements: High load - Long Duration.
HIGHER LOAD CAPACITY
The only bearing with load capacity of 17,000psi in the intermediate and 10,200psi in the overlay
BETTER FATIGUE RESISTANCE
The only bearing that goes through a hardening process creating a black fatigue resistance shield, which makes the overlay 24% stronger than any other bearing (11.5hv vs 14.5hv)
MORE ACCURACY
The only bearings with wall thickness variation of ±.0001” as a standard in comparison to ±0.00025”.
MORE CONSISTENCY
from bearing to bearing, requiring less adjustment during assembly
ONE SET FITMENT
The only bearings that don’t require you to buy multiple sets to achieve desired oil clearance
Fitment
-
Make: Toyota / Lexus
-
Model: MR2 90-99 SW20, Celica All-Trac 90-93 ST185, Celica GT-Four 94-99 ST205
-
Engine: 3S-GTE Gen 2 SW20 ST185, 3S-GTE Gen 3 JDM SW20 ST205, 5S-FE
Specifications
-
Competitor Interchange Part Number: 5M8361H MS-1714AL 6622M
-
Bearing Class: Race
-
Bearing oversize: STD (Standard)
