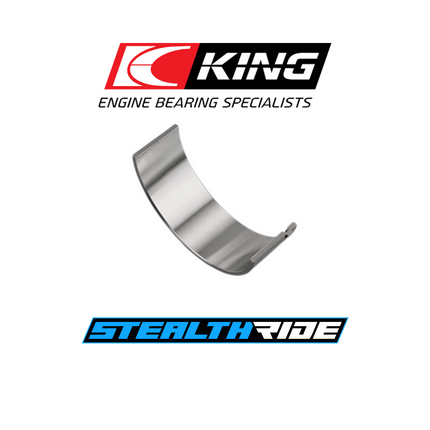

King XP STDX Race Main Bearings 3S-GTE Gen 2 SW20 ST185 3S-GTE Gen 3 JDM SW20 ST205
Brand: King Bearings
Part Number: MB5554XP STDX
Description:
King Bearings Main Bearings STDX TOYOTA 3SGTE, 16v 2.0L
The XP Tri-Metal Racing Series
Successful race engine builders are constantly pushing the limits of load capacity to new levels. Race bearings today inevitably need to match these demands with more competitive bearings. At King Racing we met the challenge with the XP high performance bearings series.
The XP series is a line of bearings with advanced metallurgical and geometric technologies that meet extreme performance loads. It was developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods.
King Racing’s XP series features pMax Black™, a unique tri-metal structure that is 24% harder than any other conventional tri-metal race bearing. pMax Black™ together with the XP geometric features are the ideal combination for performance racing. For more on King Racing technologies visit TechLab
Description: 3S-GTE Gen 2 SW20 ST185 3S-GTE Gen 3 JDM SW20 ST205 5S-FE
Bearing Types:
MB - Main bearing set
Material construction:
XP - Tri-metal copper lead
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals.001" extra Clearance
| Bearing Size Inches |
STDX |
STD |
.001" |
010X |
.010" |
.011" |
020X |
.020" |
.021" |
.030" |
| Bearing Size metric |
STDX |
STD |
.025 |
|
.25 |
|
|
0.5 |
|
0.75 |
| Crankshaft undersize |
0 |
0 |
0 |
-.010" |
-.010" |
-.010" |
-.020" |
-.020" |
-.020" |
-.030" |
| Additional Shell Thickness (on nominal) |
-.0005" |
0 |
+.0005" |
+.0045" |
+.005" |
+.0055" |
+.0095" |
+.010" |
+.0105" |
+.015" |
Fitment
-
Make: Toyota / Lexus
-
Model: MR2 90-99 SW20, Celica All-Trac 90-93 ST185, Celica GT-Four 94-99 ST205
-
Engine: 3S-GTE Gen 2 SW20 ST185, 3S-GTE Gen 3 JDM SW20 ST205, 5S-FE
Specifications
-
Competitor Interchange Part Number: 5M8361HX MS-1714AL 6622M
-
Bearing Class: Race
-
Bearing oversize: HX (Extra Oil Clearance)
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
