King XP Rod Bearings 0.026mm 180SX S13 240SX S13 S14 Sentra B13-B15 Silvia S13 S14
Brand: King Bearings
Part Number: CR4136XP.026
Description:

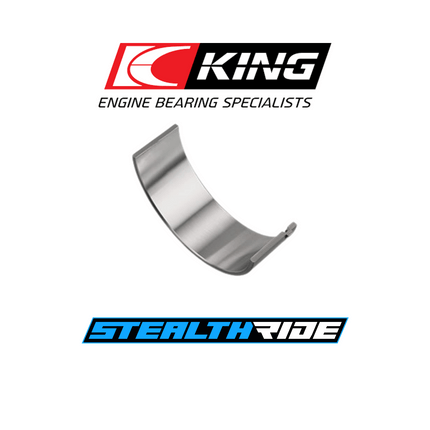

King Bearings Rod Bearings.026 NISSAN SR20DE, SR20DET, 17mm rod
The XP Tri-Metal Racing Series
Successful race engine builders are constantly pushing the limits of load capacity to new levels. Race bearings today inevitably need to match these demands with more competitive bearings. At King Racing we met the challenge with the XP high performance bearings series.
The XP series is a line of bearings with advanced metallurgical and geometric technologies that meet extreme performance loads. It was developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods.
King Racing’s XP series features pMax Black™, a unique tri-metal structure that is 24% harder than any other conventional tri-metal race bearing. pMax Black™ together with the XP geometric features are the ideal combination for performance racing. For more on King Racing technologies visit TechLab.
Description: For NISSAN SR20DE, SR20DET, 17mm rod
Bearing Types:
CR - Con Rod bearing set
Material construction:
XP - Tri-metal copper lead
Bearing size inches:
Dimension / Under Size e.g. "STD" for Standard, X equals.001" extra Clearance
| Bearing Size Inches |
STDX |
STD |
.001" |
010X |
.010" |
.011" |
020X |
.020" |
.021" |
.030" |
| Bearing Size metric |
STDX |
STD |
.026 |
|
.25 |
|
|
0.5 |
|
0.75 |
| Crankshaft undersize |
0 |
0 |
0 |
-.010" |
-.010" |
-.010" |
-.020" |
-.020" |
-.020" |
-.030" |
| Additional Shell Thickness (on nominal) |
-.0005" |
0 |
+.0005" |
+.0045" |
+.005" |
+.0055" |
+.0095" |
+.010" |
+.0105" |
+.015" |
Fitment
-
Make: Nissan / Infiniti
-
Model: 180SX 89-90 S13, 240SX 89-94 S13, 240SX 95-98 S14, Sentra 00-06 B15, Sentra 91-94 B13, Sentra 95-99 B14, Silvia 89-94 S13, Silvia 95-98 S14, Silvia 99-02 S15, X-Trail GT 01-07, Bluebird 97-00 U14
-
Engine: SR20DET, SR20VE, SR20VET
Specifications
-
Old Part Number: CR4136XP.025
-
Competitor Interchange Part Number: 4B2960H-.026 CB-1629H 4-4805P
-
Bearing Class: Race
-
Bearing oversize: 0.001" / 0.026mm
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
