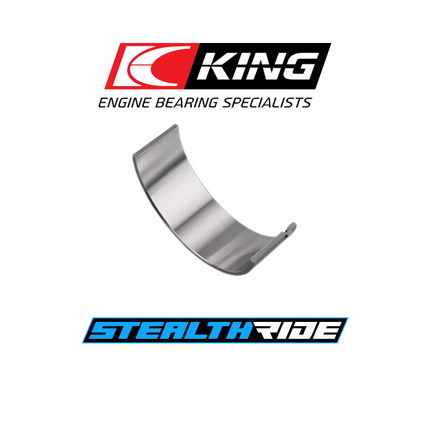

King Race XP Rod Bearings 0.5mm Mazda Miata 90-93 NA B6 1.6L DOHC
Brand: King Bearings
Part Number: CR4002XP0.5
Description:
King Bearings Rod Bearings 0.5 MAZDA B6, B6-T, ZM, B3, B5
pMaxBlac
King's TechLab – Exceed and Excel
TechLab is our starting point for exploring and developing new technologies. It’s where our new products and features are designed, tested and validated.
Our TechLab R&D culture focuses on constant analysis of what can be done to support ever increasing race engine loads, and how to improve bearing durability.
One of those technologies is pMax-Black™.
pMaxBlack™ combines a unique tri-metal structure with advanced surface processes to deliver superior load capacity.
pMaxBlack™ tri-metal structure
Intermediate layer
The intermediate layer of a typical race bearing contains 2-3% tin, with hardness values of 90-95 HV. For a superior pMax Black™ intermediate layer, we increased the tin content to 4.5%, making it 22% harder (115 HV), with a load carrying capacity of 17,000 psi.
pMaxBlack™ Overlay
The overlay of a typical high performance bearing consists of a leaded alloy that contains 2-3% copper. It achieves a hardness level of 11 – 14 HV, and a maximum load capacity of 8,000-8,500 psi.
King’s pMaxBlack™ overlay is significantly stronger than conventional overlays due to its 5% copper content and an innovative nano-scaled hardening process.
Engine Fitment:
1.5L DOHC 16v ZL-VE
1.6L SOHC 8v B6, B6F
1.6L DOHC 16v B6D
1.6L DOHC 16v Turbo B6-T
1.6L SOHC 16v B6-2E/ME
1.6L DOHC 16v ZM-DE
1.8L SOHC 16v BP
1.8L DOHC 16v BP-T
1.8L DOHC 16v BPD
1.8L DOHC 16v BP-Z3
1.8L DOHC 16v Turbo BP-4W, BPZ3T, BP-ZE
Bearing Types:
CR - Con Rod bearing set
Material construction:
XP - Tri-metal copper lead
Bearing size inches
| Bearing Size Inches |
STDX |
STD |
.001" |
010X |
.010" |
.011" |
020X |
.020" |
.021" |
.030" |
| Bearing Size metric |
STDX |
STD |
.025 |
|
.25 |
|
|
0.5 |
|
0.75 |
| Crankshaft undersize |
0 |
0 |
0 |
-.010" |
-.010" |
-.010" |
-.020" |
-.020" |
-.020" |
-.030" |
| Additional Shell Thickness (on nominal) |
-.0005" |
0 |
+.0005" |
+.0045" |
+.005" |
+.0055" |
+.0095" |
+.010" |
+.0105" |
+.015" |
Fitment
-
Make: Mazda
-
Model: Miata 90-97 NA
-
Engine: B6 1.6L DOHC
Specifications
-
Competitor Interchange Part Number: 4B8351H-.50 CB-1453H 4-4175
-
Bearing Class: Race
-
Bearing oversize: 0.020" / 0.5mm
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
