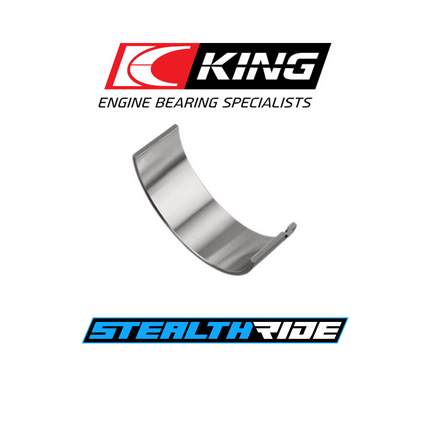

King Bearings Rod Bearings N .030 CHRYSLER 273ci, 277ci, 301ci, 303ci, 313ci, 318ci, 326ci, 340ci
Brand: King Bearings
Manufacturer's Part Number: CR 805XPN 030
Stealth Ride Part Number: CR 805XPN 030
UPC: 611500531569
Description:
Description: CHRYSLER 273ci, 277ci, 301ci, 303ci, 313ci, 318ci, 326ci, 340ci
Bearing Types:
MB - Main bearing set
CR - Con Rod bearing set
CS - Camshaft bearing set
TW - Thrust washer set
Material construction:
HP - Bi-metal aluminum Silicon Alloy
XP - Tri-metal copper lead
Bearing Features:
N - Narrowed
D - Dowel
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals .001" extra Clearance
| Bearing Size Inches | STDX | STD | .001" | 010X | .010" | .011" | 020X | .020" | .021" | .030" |
| Bearing Size metric | STDX | STD | .025 | | .25 | | | 0.5 | | 0.75 |
| Crankshaft undersize | 0 | 0 | 0 | -.010" | -.010" | -.010" | -.020" | -.020" | -.020" | -.030" |
| Additional Shell Thickness (on nominal) | -.0005" | 0 | +.0005" | +.0045" | +.005" | +.0055" | +.0095" | +.010" | +.0105" | +.015" |
Metal Structure : Tri-metal copper lead.
Race Type: Circle track, Off-road, off-shore, others that require steel crankshafts.
Engine requirements: High load - Long Duration.
HIGHER LOAD CAPACITY
The only bearing with load capacity of 17,000psi in the intermediate and 10,200psi in the overlay
BETTER FATIGUE RESISTANCE
The only bearing that goes through a hardening process creating a black fatigue resistance shield, which makes the overlay 24% stronger than any other bearing (11.5hv vs 14.5hv)
MORE ACCURACY
The only bearings with wall thickness variation of ±.0001” as a standard in comparison to ±0.00025”.
MORE CONSISTENCY
from bearing to bearing, requiring less adjustment during assembly
ONE SET FITMENT
The only bearings that don’t require you to buy multiple sets to achieve desired oil clearance
More Information | Barcode | 611500531569 |
| UPC Code | 611500531569 |
| Old Part Number | CR805XPN 030 |
| Note | Narrow |
| Shipping Weight (Dimensional) | 0.850000 |
| Clearance Sale | No |
| Availability | Back Ordered |
| Part Type | Connecting Rod Bearings |
| Make | Dodge |
| Brand | King Bearings |
| Bearing Class | Race |
| Bearing oversize | 0.030" / 0.75mm |
| Carb Legal | Unspecified |
| Shipping Label | |
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
