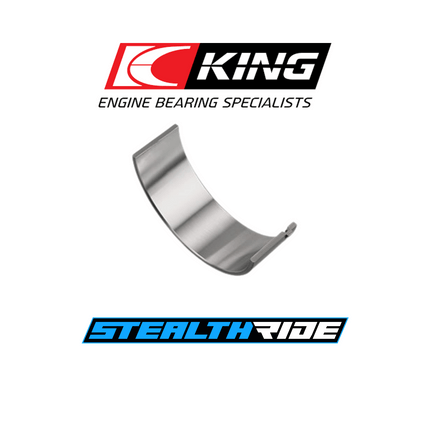

King Bearings Rod Bearings ND .030 GM Big Block 366ci, 396ci, 402ci, 427ci, 454ci, 502ci
Brand: King Bearings
Manufacturer's Part Number: CR 808HPND 030
Stealth Ride Part Number: CR 808HPND 030
UPC: 611500529917
Description:
Description: GM Big Block 366ci, 396ci, 402ci, 427ci, 454ci, 502ci
Bearing Types:
MB - Main bearing set
CR - Con Rod bearing set
CS - Camshaft bearing set
TW - Thrust washer set
Material construction:
HP - Bi-metal aluminum Silicon Alloy
XP - Tri-metal copper lead
Bearing Features:
N - Narrowed
D - Dowel
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals .001" extra Clearance
| Bearing Size Inches | STDX | STD | .001" | 010X | .010" | .011" | 020X | .020" | .021" | .030" |
| Bearing Size metric | STDX | STD | .025 | | .25 | | | 0.5 | | 0.75 |
| Crankshaft undersize | 0 | 0 | 0 | -.010" | -.010" | -.010" | -.020" | -.020" | -.020" | -.030" |
| Additional Shell Thickness (on nominal) | -.0005" | 0 | +.0005" | +.0045" | +.005" | +.0055" | +.0095" | +.010" | +.0105" | +.015" |
HP Series
Metal structure : Bi-metal aluminum silicon alloy.
Race type : Drag racing, tractor pulls, monster trucks
Circle track (engines using nodular cast iron crankshaft)
Load Capacity : 8,000 PSI
Melting Temp : 450F
Engine requirements : High load - Short duration
or
Medium load - long duration (engines using nodular cast iron crankshaft)
HP is a Bi-Metal bearing series that was developed mainly for drag race applications needing a material that is harder than the Babbitt top layer.
HP series is particularly suitable for the following cases:
- When a tri-metal bearing’s Babbitt overlay extrudes over the sides or migrates to one end
- When the intermediate layer of a tri-metal bearing is exposed, damaging the crank journal
- When contaminants enter the oil stream, scratching and damaging the crankshaft journals
More Information | Barcode | 611500529917 |
| UPC Code | 611500529917 |
| Old Part Number | CR808HPND 030 |
| Note | Narrow, Doweled |
| Note | Doweled |
| Shipping Weight (Dimensional) | 1.080000 |
| Clearance Sale | No |
| Availability | Back Ordered |
| Part Type | Connecting Rod Bearings |
| Make | Chevrolet, GM |
| Brand | King Bearings |
| Bearing Class | Non-Race |
| Bearing oversize | 0.030" / 0.75mm |
| Carb Legal | Unspecified |
| Shipping Label | |
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
