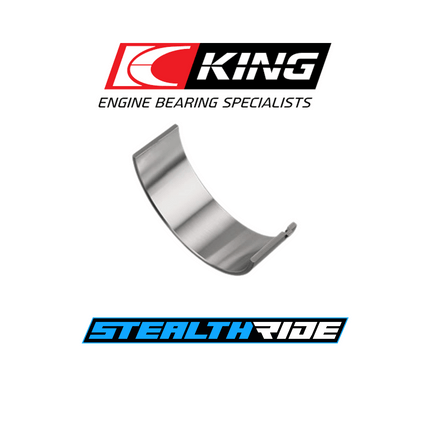

King XPC Race Rod Bearings STDX VW Audi All VR6 2.8L 2.9L 3.2L 3.6 12V 24V AAA AFP BDF
Brand: King Bearings
Part Number: CR6764XPC STDX
Description:
King Bearings XP Coated Race Rod Bearings STDX VW ALL VR6 2.8L 2.9L 3.2L AAA AFP BDF BJS
These bearings have an "X" at the end of the part number because they will provide.001" EXTRA clearance. Always consult with your machine shop before buying bearings to determine which size would be optimal for your proposed use.
The XP Tri-Metal Racing Series
Successful race engine builders are constantly pushing the limits of load capacity to new levels. Race bearings today inevitably need to match these demands with more competitive bearings. At King Racing we met the challenge with the XP high performance bearings series.
The XP series is a line of bearings with advanced metallurgical and geometric technologies that meet extreme performance loads. It was developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods.
King Racing’s XP series features pMax Black™, a unique tri-metal structure that is 24% harder than any other conventional tri-metal race bearing. pMax Black™ together with the XP geometric features are the ideal combination for performance racing. For more on King Racing technologies visit TechLab
pMaxKote- Coated Bearings
King factory applied nano-composite polymer coating. King’s pMaxKote ia a revolutionary new approach to coated bearings. This unique polymer coating is applied over King’s pMaxBlack overlay at the King factory during the bearing manufacturing process. King’s pMaxKote contains ceramic nano-composite particles that function as a fourth layer to enhance wear resistance. pMaxKote does not change the bearing’s original precision wall thickness and adds no additional thickness.
PROTECT YOUR BUILD
with additional:
- Seizure resistance
- Superior cavitation resistance
- Wear resistance
- Protection against oil starvation
Bearing size inches STDX
Bearing size metric STDX
Crankshaft undersize 0
Additional shell thickness (on nominal) -.0005"
Fitment
-
Make: Audi, Volkswagen
-
Model: Golf GTI VR6 95-99 MK3, Golf R32 04 MK4, Golf R32 08 MK5, Jetta GLX 94-99 MK3
-
Engine: VR6 2.8L 12V AAA, VR6 2.8L 12V AFP, VR6 2.8L 24V AMV/AQP/AUE/AYL/BDE/BDF, VR6 2.9L 12V ABV, VR6 3.2L 24V R32
Specifications
-
Competitor Interchange Part Number: CB-1824AL 6-4525P
-
Bearing Class: Race
-
Bearing oversize: HX (Extra Oil Clearance)
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
