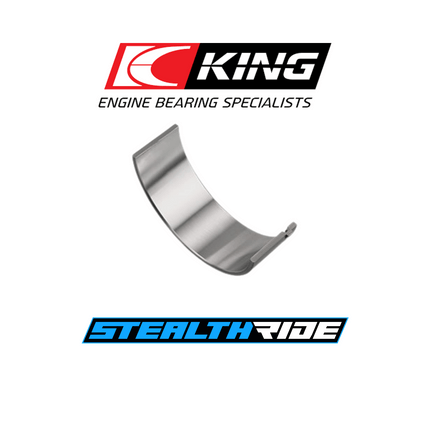

King Race XP STDX Main Bearings Civic 87-00 Prelude 97-01 D16A6 D16Y8 D16Z6 F23A H22A4
Brand: King Bearings
Part Number: MB5568XP STDX
Description:
King Bearings XP Main Bearings STDX Civic Prelude D16A6 D16Y8 D16Z6 F23A H22A4 for 55mm journal
King Bearings Race XP STDX Main Bearings Civic 87-00 Prelude 97-01 D16A6 D16Y8 D16Z6 F23A H22A4 55mm Journal
Description: 55mm Journal
Engine Applications:
HONDA D-series D16A6 D16Y8 D16Z6
H22A4
F23A, F23Z, 16v
Bearing Types:
MB - Main bearing set
Material construction:
XP - Tri-metal copper lead
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals.001" extra Clearance
| Bearing Size Inches |
STDX |
STD |
.001" |
010X |
.010" |
.011" |
020X |
.020" |
.021" |
.030" |
| Bearing Size metric |
STDX |
STD |
.025 |
|
.25 |
|
|
0.5 |
|
0.75 |
| Crankshaft undersize |
0 |
0 |
0 |
-.010" |
-.010" |
-.010" |
-.020" |
-.020" |
-.020" |
-.030" |
| Additional Shell Thickness (on nominal) |
-.0005" |
0 |
+.0005" |
+.0045" |
+.005" |
+.0055" |
+.0095" |
+.010" |
+.0105" |
+.015" |
Metal Structure: Tri-metal copper lead.
Race Type: Circle track, Off-road, off-shore, others that require steel crankshafts.
Engine requirements: High load - Long Duration.
HIGHER LOAD CAPACITY
The only bearing with load capacity of 17,000psi in the intermediate and 10,200psi in the overlay
BETTER FATIGUE RESISTANCE
The only bearing that goes through a hardening process creating a black fatigue resistance shield, which makes the overlay 24% stronger than any other bearing (11.5hv vs 14.5hv)
MORE ACCURACY
The only bearings with wall thickness variation of ±.0001” as a standard in comparison to ±0.00025”.
MORE CONSISTENCY
from bearing to bearing, requiring less adjustment during assembly
ONE SET FITMENT
The only bearings that don’t require you to buy multiple sets to achieve desired oil clearance
Fitment
-
Make: Honda / Acura
-
Model: Civic 92-95 EG, Civic Non-VTEC 96-00 EK, Prelude VTEC 97-01 BB6, Accord 98-02, Civic 87-91 EF, CRX 88-91 ED, Del Sol Si 93-95 EH6, Del Sol S/Si 96-97 EH6
-
Engine: D16A1, D16A6, D16Y5, D16Y7, D16Y8, D16Z6, F23A, H22A4
Specifications
-
Note: for use with 1997.5+ Prelude 55mm mains only
-
Note: 1997 was a split year for H22A4 main bearings. H22A4 Engines build up to 1997.5 used a 50mm main bearing, which is the same as an H22A1, but engines made in late 1997 or after use these 55mm main bearings.
-
Competitor Interchange Part Number: 5M1957HX MS-1804H 160M
-
Bearing Class: Race
-
Bearing oversize: HX (Extra Oil Clearance)
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
