King XPC .026 Race Main Bearings NISSAN VR38DETT GTR 09+ R35
Brand: King Bearings
Part Number: MB4524XPC.026
Description:

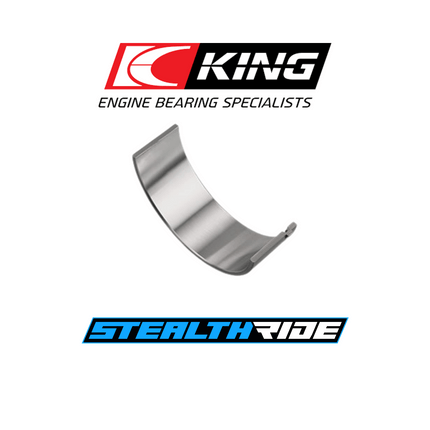

King Bearings XPC.026 Crankshaft Main Bearings NISSAN VR38DETT - COATED
King Engine Bearings Racing Polymer Main Bearing Set for 2007+ Nissan GT-R VR38DETT
XPC Series is King Bearings‘ premium race bearings, featuring the pMaxBlack™ overlay that increases hardness and topped by the innovative pMaxKote™ ceramic nano-composite polymer coating, that enhances wear & seizure resistance without altering the bearing's original wall thickness dimensions.
Commonly use for circle track, drag racing, off-shore, and other applications that utilize steel crankshafts. Features ceramic nano-composite polymer coating, that enhances wear & seizure resistance without altering the bearing's original wall thickness
| Crankshaft Dim. |
Housing Dim. |
Length |
Thickness |
| 64.98 / 64.95 mm 2.5581 / 2.5571 inch |
70.02 / 69.99 mm 2.7566 / 2.7556 inch |
18.7 mm 0.736 inch |
2.516 mm 0.0991 inch |
Tech Features
Copper Based
Tri-Metal Copper based material - Leaded or Lead Free tri layers bearings for low to heavy load engines.
pMaxBlack™
Superior load capacity - Overlay features proprietary nano-scaled hardening process producing superior load capacity.
pMaxKote™
Factory applied polymer coating - Inhouse developed Polymer coating for race applications, enhances seizure & wear resistance, with no added thickness.
U-Groove™
Greater load surface - A 90? oil groove shape, keep oil flow intact, increases bearing load capacity by expanding the surface area.
Radialock™
Optimal crush height and heat transfer - An optimal crush height value obtained from an optimization process of each performance bearing crush height
Eccentrix™
Superior hydrodynamic lubrication - An optimized eccentricity value reached through elasto-hydrodynamic analysis and dynamic calculations.
Bulls Eye™
Perfect clearance in every set - Outperforms the industry’s wall thickness tolerance, ensuring the least thickness variation shell-to-shell.
Fitment
-
Make: Nissan / Infiniti
-
Model: GTR R35
-
Engine: VR38DETT
Specifications
-
Note: Coated
-
Bearing Class: Race
-
Bearing oversize: 0.001" / 0.026mm
