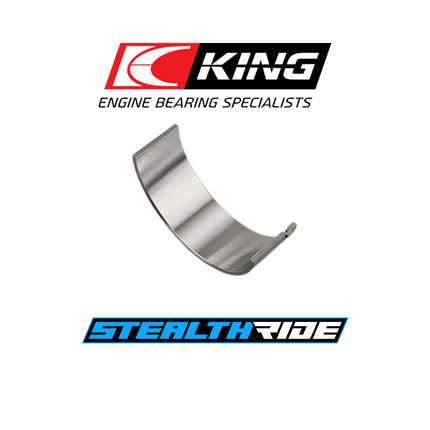

King XPG Coated Rod Bearings STDX for WRX EJ205 EJ255 STI EJ257
Brand: King Bearings
Part Number: CR4125XPGC STDX
Description:
King Bearings XPG Coated Rod Bearings STDX for WRX EJ205 EJ255 STI EJ257
The XP Tri-Metal Racing Series
Successful race engine builders are constantly pushing the limits of load capacity to new levels. Race bearings today inevitably need to match these demands with more competitive bearings. At King Racing we met the challenge with the XP high performance bearings series.
The XP series is a line of bearings with advanced metallurgical and geometric technologies that meet extreme performance loads. It was developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods.
King Racing’s XP series features pMax Black™, a unique tri-metal structure that is 24% harder than any other conventional tri-metal race bearing. pMax Black™ together with the XP geometric features are the ideal combination for performance racing. For more on King Racing technologies visit TechLab
pMaxKote- Coated Bearings
King factory applied nano-composite polymer coating. King’s pMaxKote ia a revolutionary new approach to coated bearings. This unique polymer coating is applied over King’s pMaxBlack overlay at the King factory during the bearing manufacturing process. King’s pMaxKote contains ceramic nano-composite particles that function as a fourth layer to enhance wear resistance. pMaxKote does not change the bearing’s original precision wall thickness and adds no additional thickness.
PROTECT YOUR BUILD
with additional:
- Seizure resistance
- Superior cavitation resistance
- Wear resistance
- Protection against oil starvation
Bearing size inches STDX
Bearing size metric STDX
Crankshaft undersize 0
Additional shell thickness (on nominal) -.0005"
Fitment
-
Make: Subaru
-
Model: STI JDM 01-02 GD, STi 04-07 GD, STi 08-14 GR, STi 15-21 VA, WRX 02-05 GD, WRX 02-05 GG, WRX 06-07 GD, WRX 06-07 GG, WRX 08-14 GR
-
Engine: EJ205, EJ207, EJ25 DOHC Non-Turbo, EJ25 SOHC Non-Turbo, EJ255, EJ257, EJ257B
Specifications
-
Note: Coated
-
Note: Phase 2- years 1999+. Suits 52mm Rod Journal
-
Competitor Interchange Part Number: CB1657HXK
-
Bearing Class: Race
-
Bearing oversize: HX (Extra Oil Clearance)
-
Product Flags: sale
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
