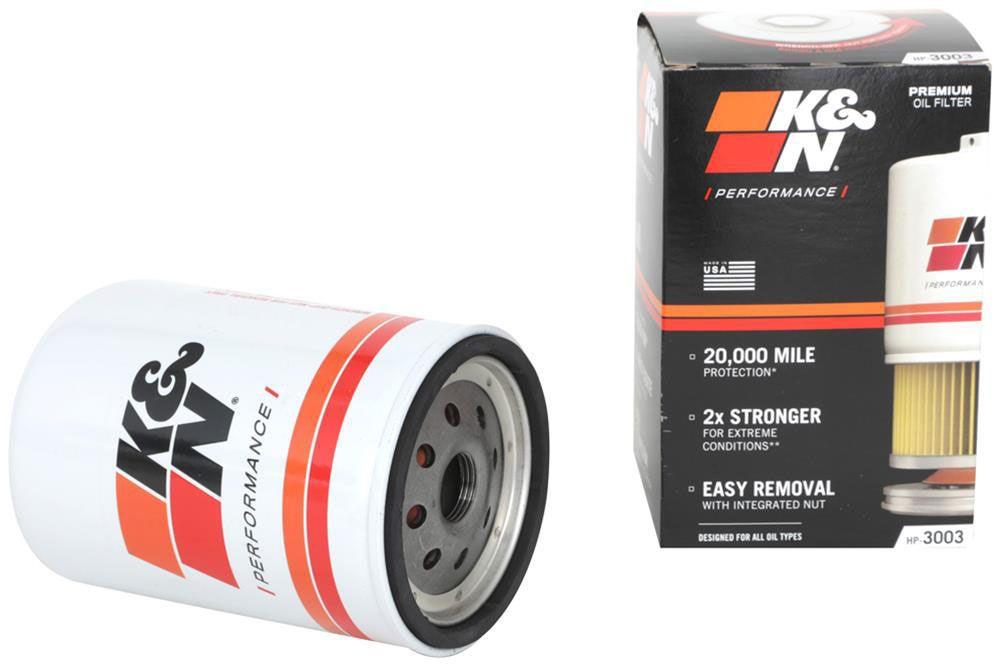

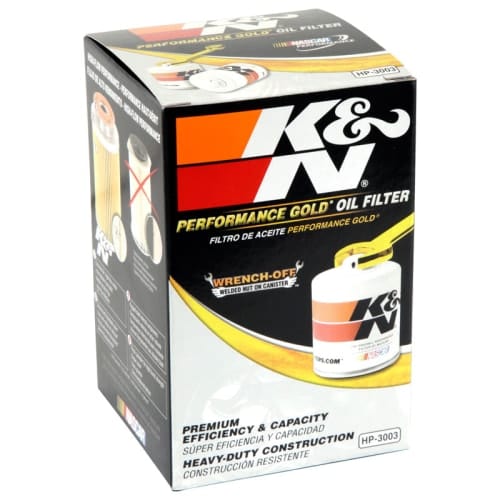

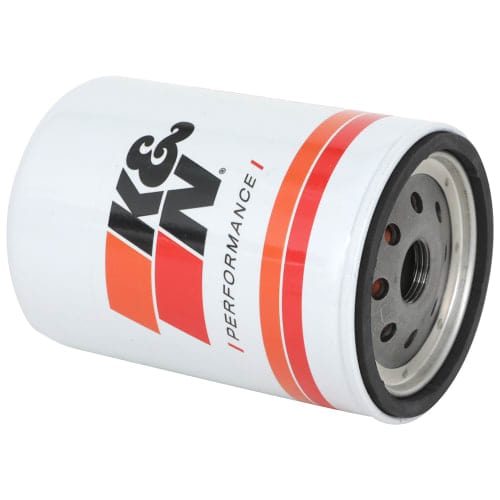

K&N K&N Performance Gold Oil Filter (Z24) KNHP-3003

Originally developed for demanding race applications, K&N's Premium Wrench-Off Oil Filter has become a favorite among consumers for its

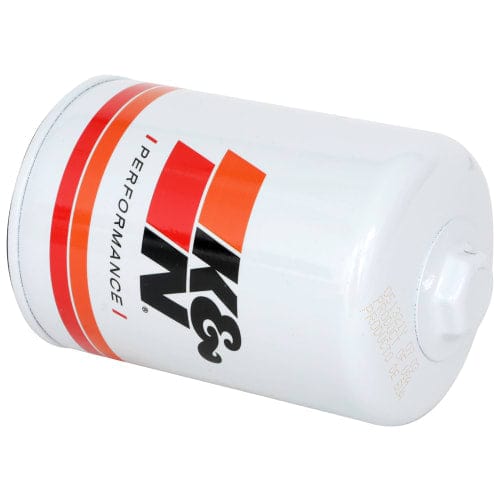

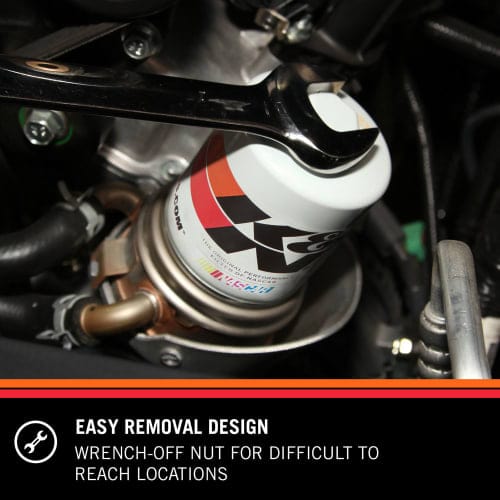

durability and easy removal. Most of our automotive and marine oil filters come with a 1" nut welded to the top of the canister so they
can be easily wrenched-off with a standard tool. To satisfy the demands of racers, our oil filter has many features over and above the

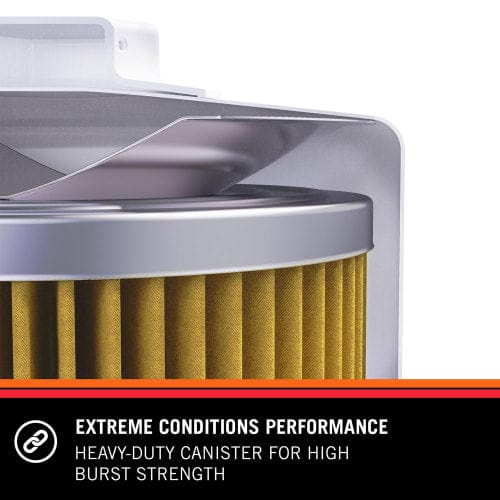

requirements of most vehicles. We use thicker canister walls for extra strength and durability which reduces the risk of damage from
loose rocks and debris. The drilled hole on the nut provides for safety wire attachment. Our oil filters also use a resin impregnated

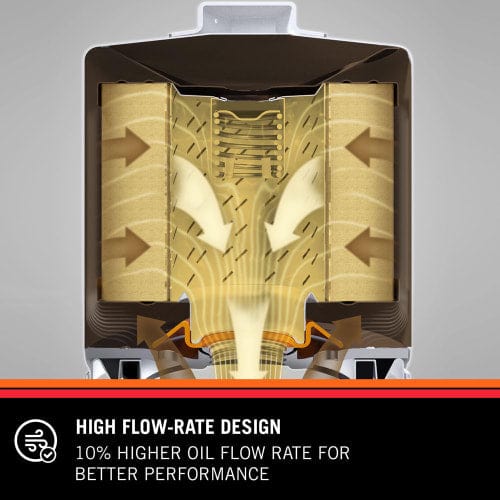

cellulose filter media. This allows for higher flow rates while providing outstanding filtration

Part KNHP-3003 Product Specifications
Product Style: Oil Filters

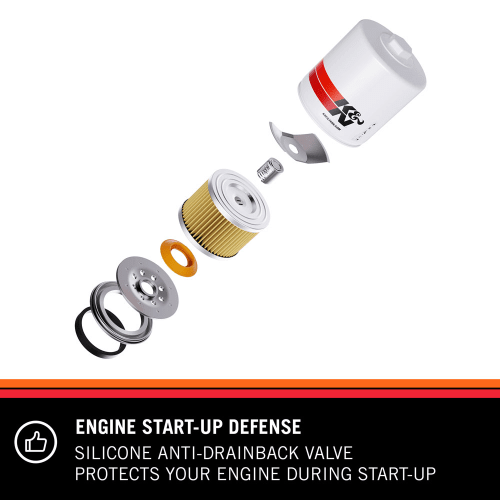

Anti Drain Back Valve: Yes
Bypass Valve: Yes
Filter Material: High Flow Premium Media
Gasket Material: Nitrile Rubber
Height: 5.875 in (149 mm)
Outside Diameter: 3.688 in (94 mm)
PSI Relief Valve: 11-17
Removal Nut: Yes
Style: Canister
Thread Specification: 13/16 In. - 16
Removal Nut Size: 1 inch

Filter Cross Reference
Ryco Z24
AC Delco PF2232
Champ Labs. LFP2999
Fram PH13
Fram PH5
Fram PH9100
Mobil One M1302
Motorcraft FL12
Purolator L30040
Purolator L34631
Purolator L35132
Purolator L35399
WIX 51060
WIX 51061
WIX 57202

2013 GMC SIERRA 3500 HD 6.6L V8 DSL - All
2013 GMC SIERRA 2500 HD 6.6L V8 DSL - All
2013 GMC SAVANA 4500 6.6L V8 DSL - All
2013 GMC SAVANA 3500 6.6L V8 DSL - All
2013 GMC SAVANA 2500 6.6L V8 DSL - All
2013 CHEVROLET SILVERADO 3500 HD 6.6L V8 DSL - All
2013 CHEVROLET SILVERADO 2500 HD 6.6L V8 DSL - All
2013 CHEVROLET EXPRESS 4500 6.6L V8 DSL - All
2013 CHEVROLET EXPRESS 3500 6.6L V8 DSL - All
2013 CHEVROLET EXPRESS 2500 6.6L V8 DSL - All
2012 GMC SIERRA 3500 HD 6.6L V8 DSL - All
2012 GMC SIERRA 2500 HD 6.6L V8 DSL - All
2012 GMC SAVANA 4500 6.6L V8 DSL - All
2012 GMC SAVANA 3500 6.6L V8 DSL - All
2012 GMC SAVANA 2500 6.6L V8 DSL - All
2012 CHEVROLET SILVERADO 3500 HD 6.6L V8 DSL - All
2012 CHEVROLET SILVERADO 2500 HD 6.6L V8 DSL - All
2012 CHEVROLET EXPRESS 4500 6.6L V8 DSL - All
2012 CHEVROLET EXPRESS 3500 6.6L V8 DSL - All
2012 CHEVROLET EXPRESS 2500 6.6L V8 DSL - All
2011 GMC SIERRA 3500 HD 6.6L V8 DSL - All
2011 GMC SIERRA 2500 HD 6.6L V8 DSL - All
2011 GMC SAVANA 4500 6.6L V8 DSL - All
2011 GMC SAVANA 3500 6.6L V8 DSL - All
2011 GMC SAVANA 2500 6.6L V8 DSL - All
2011 CHEVROLET SILVERADO 3500 HD 6.6L V8 DSL - All
2011 CHEVROLET SILVERADO 2500 HD 6.6L V8 DSL - All
2011 CHEVROLET EXPRESS 3500 6.6L V8 DSL - All
2011 CHEVROLET EXPRESS 2500 6.6L V8 DSL - All
2010 GMC SIERRA 3500 HD 6.6L V8 DSL - All
2010 GMC SIERRA 2500 HD 6.6L V8 DSL - All
2010 GMC SAVANA 4500 6.6L V8 DSL - All
2010 GMC SAVANA 3500 6.6L V8 DSL - All
2010 GMC SAVANA 2500 6.6L V8 DSL - All
2010 CHEVROLET SILVERADO 3500 HD 6.6L V8 DSL - All
2010 CHEVROLET SILVERADO 2500 HD 6.6L V8 DSL - All
2010 CHEVROLET EXPRESS 3500 6.6L V8 DSL - All
2010 CHEVROLET EXPRESS 2500 6.6L V8 DSL - All
2009 GMC SIERRA 3500 HD 6.6L V8 DSL - All
2009 GMC SIERRA 2500 HD 6.6L V8 DSL - All
2009 GMC SAVANA 4500 6.6L V8 DSL - All
2009 GMC SAVANA 3500 6.6L V8 DSL - All
2009 GMC SAVANA 2500 6.6L V8 DSL - All
2009 GMC C5500 TOPKICK 6.6L V8 DSL - All
2009 GMC C4500 TOPKICK 6.6L V8 DSL - All
2009 CHEVROLET SILVERADO 3500 HD 6.6L V8 DSL - All
2009 CHEVROLET SILVERADO 2500 HD 6.6L V8 DSL - All
2009 CHEVROLET EXPRESS 3500 6.6L V8 DSL - All
2009 CHEVROLET EXPRESS
