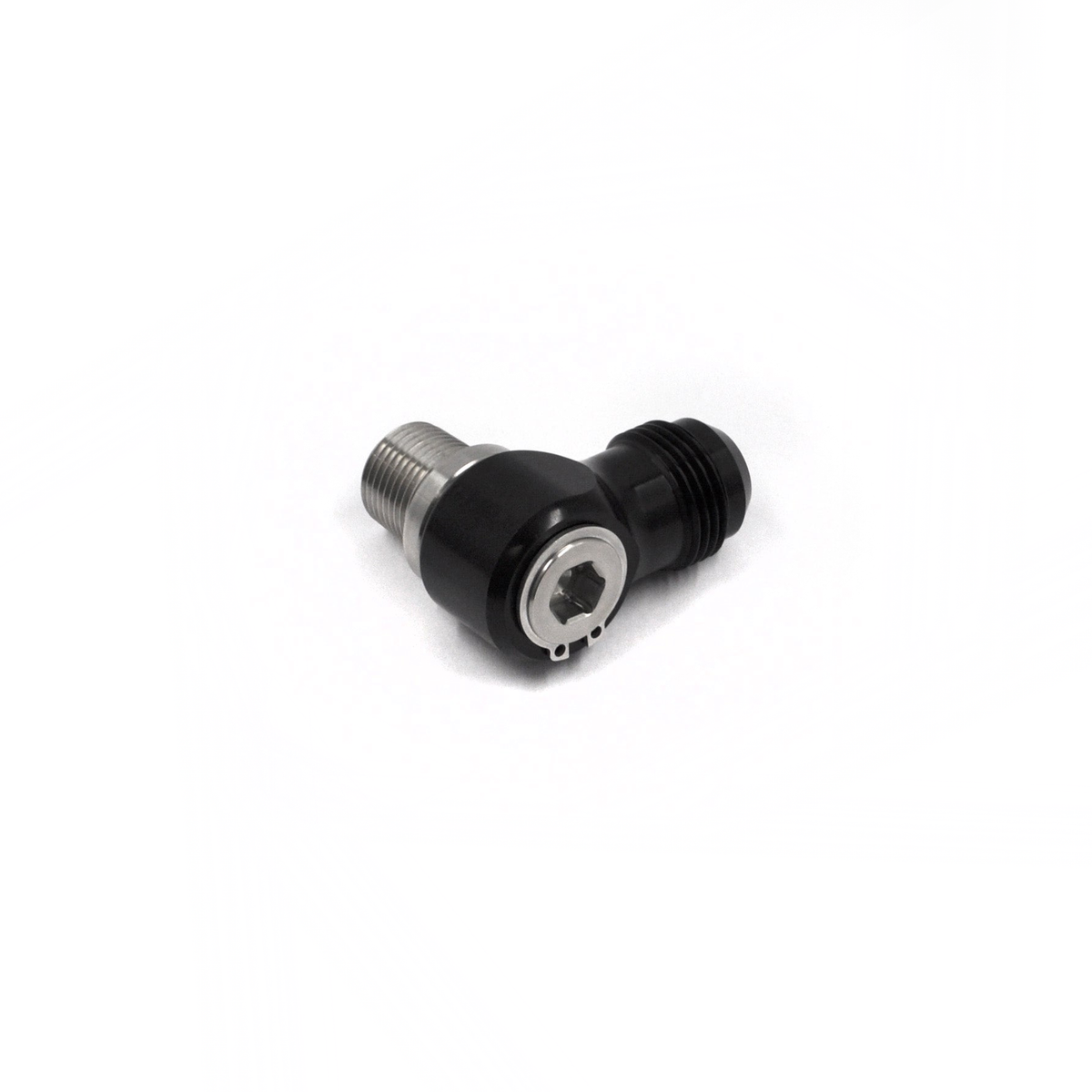

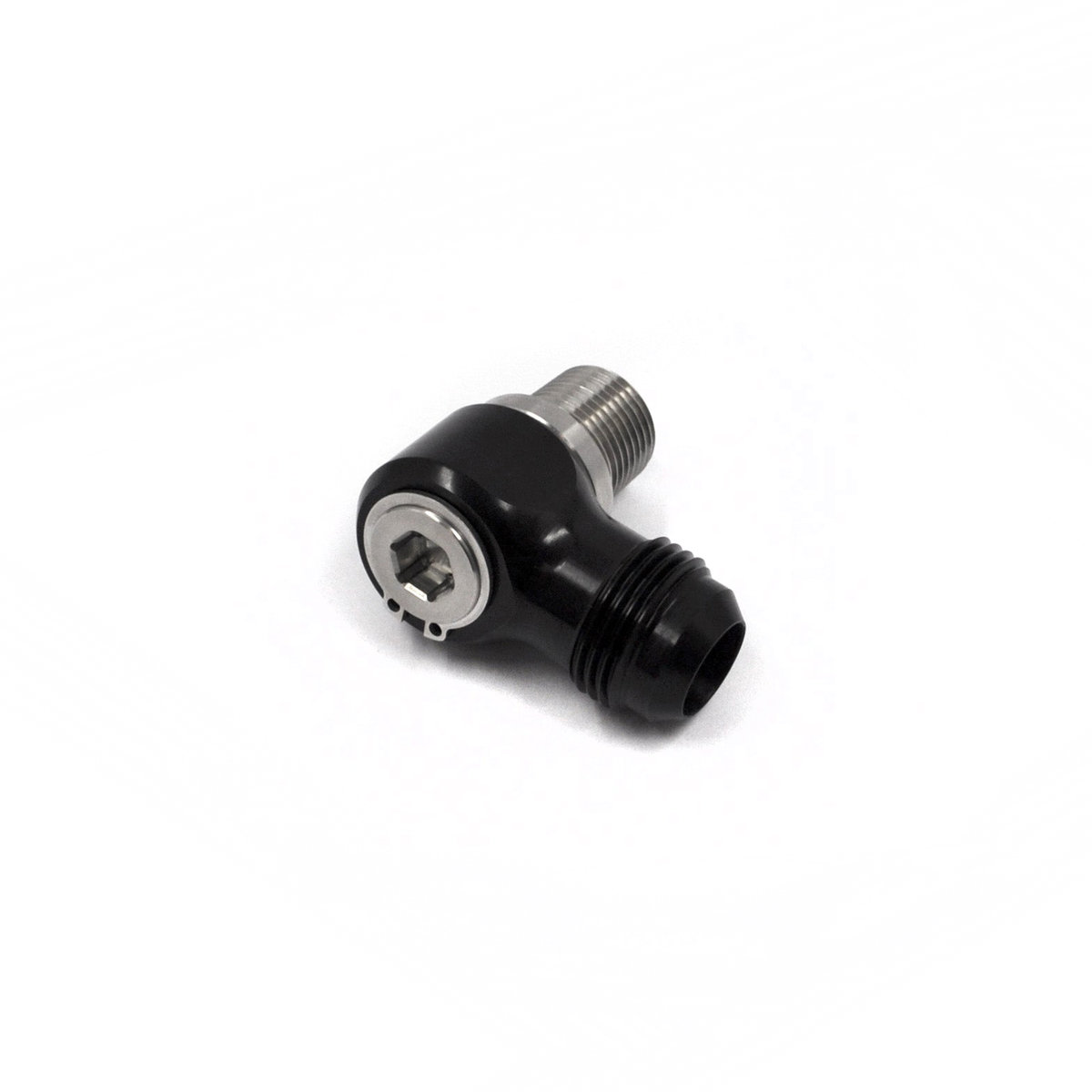

Franklin Performance Low Profile Metric to AN Banjo Fittings
Banjos (Fittings)
Brand: Franklin Performance
Description:
Perfect for using as rocker-cover breather fittings or in areas of your engine bay with limited space. The double o-ringed banjo allows the AN fitting to rotate as required for easier installation of hoses, without moving engine components.
The AN banjo fitting is CNC machined from billet 6061-T6 aluminium and black anodised for great looks and light weight. The metric threaded insert is machined from 304 stainless steel and features an M10 internal hex for tightening.
Available Configurations:
- M16x1.5 to 8AN Banjo (Installed height: 28.5mm)
- M16x1.5 to 10AN Banjo (Installed height: 28.5mm)
- M18x1.5 to 8AN Banjo (Installed height: 28.5mm)
- M18x1.5 to 10AN Banjo (Installed height: 28.5mm)
- M18x1.5 to 12AN Banjo (Installed height: 32.5mm)
- M22x1.5 to 10AN Banjo (Installed height: 32.5mm)
- M22x1.5 to 12AN Banjo (Installed height: 32.5mm)
Supplied with a copper washer. Sold individually, not as a pair.
All machined components are proudly manufactured at our factory in Napier, New Zealand. We also have NPT & AN ORB to AN banjo fittings available in our other listings.
Part Numbers
-
M16x1.5 to 8AN: 059-074
-
M16x1.5 to 10AN: 059-075
-
M18x1.5 to 8AN: 059-076
-
M18x1.5 to 10AN: 059-077
-
M18x1.5 to12AN: 059-078
-
M22x1.5 to 10AN: 059-079
-
M22x1.5 to 12AN: 059-080
