Franklin Performance Low Profile Oil Filter Relocation Kit
Oil Filter Relocation Kits
Brand: Franklin Performance
Description:
Low profile remote oil filter kit manufactured by Franklin Performance for mounting an oil filter away from your engine, to make filter changes easier or where space is limited in the engine bay.

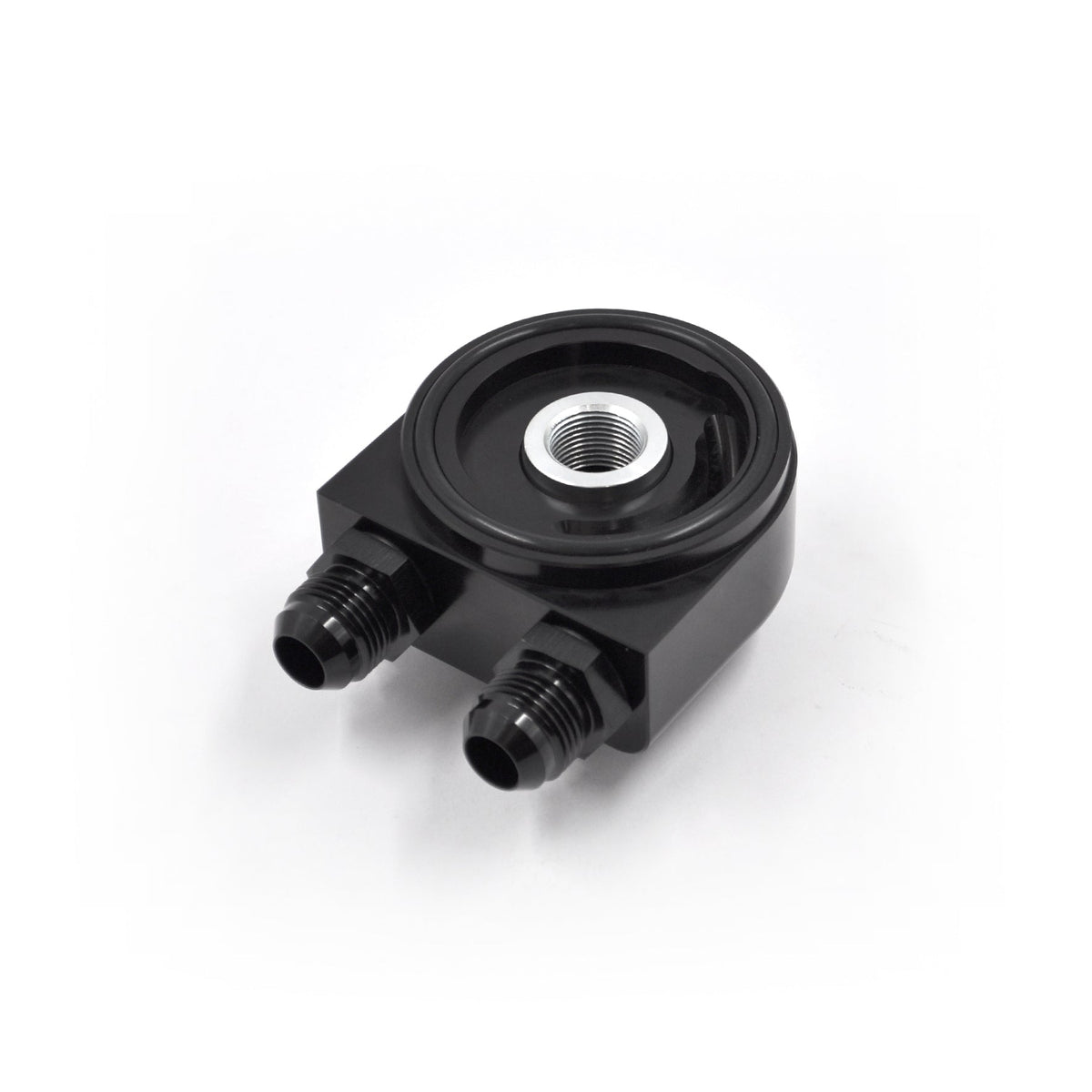

This high quality kit consists of our own remote oil filter mount and low profile oil filter take-off block, which is screwed onto your engine, along with the required fittings and hose. The product has many features to improve oil flow that you won't find on other remote filter kits.
Both the remote oil filter mount & oil filter take-off block are made from billet high-grade 6061 aluminium, then anodised black for great looks and corrosion resistance. The threaded adaptor for the remote filter mount is made from 316 stainless steel.

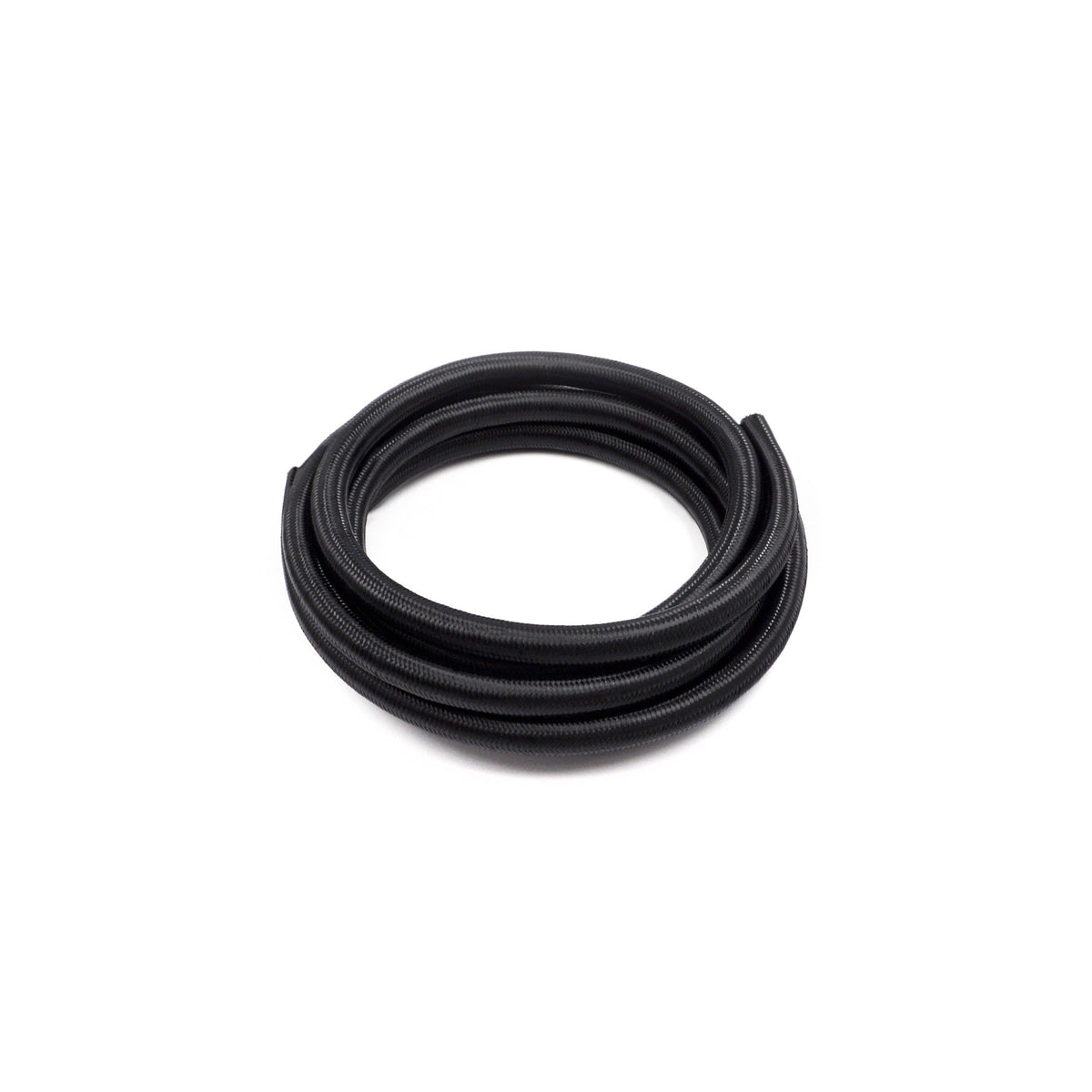

10AN sized ORB ports are provided on both parts for plumbing the engine oil to and from the filter mount. It has a bracket which can be mounted two different ways for easier installation. The kit is supplied with 2.5m of 10AN hose.
Engine-Side Thread Options:
- M18x1.5
- M20x1.5
- M22x1.5
- M24x1.5
- 3/4" UNF
- 13/16"-16 UNF
- 7/8" UNF
- 1"-12 UNF
- 1"-14 UN
- 1"-16 UN
Remote Filter Mount Thread Options:
Part Numbers
-
3/4 UNF / M18x1.5: LPOR-Kit-039-007 & 039-022
-
M20x1.5 / M18x1.5: LPOR-Kit-039-010 & 039-022
-
3/4” UNF / M20x1.5: LPOR-Kit-039-007 & 039-021
-
3/4” UNF / M22x1.5: LPOR-Kit-039-007 & 039-029
-
3/4” UNF / M24x1.5: LPOR-Kit-039-007 & 039-023
-
3/4” UNF / 3/4" UNF: LPOR-Kit-039-007 & 039-020
-
3/4” UNF / 13/16"-16 UNF: LPOR-Kit-039-007 & 039-028
-
3/4” UNF / 7/8" UNF: LPOR-Kit-039-007 & 039-024
-
3/4” UNF / 1"-12 UNF: LPOR-Kit-039-007 & 039-025
-
3/4” UNF / 1"-14 UN: LPOR-Kit-039-007 & 039-026
-
3/4” UNF / 1"-16 UN: LPOR-Kit-039-007 & 039-027
-
M20x1.5 / M20x1.5: LPOR-Kit-039-010 & 039-021
-
M20x1.5 / M22x1.5: LPOR-Kit-039-010 & 039-029
-
M20x1.5 / M24x1.5: LPOR-Kit-039-010 & 039-023
-
M20x1.5 / 3/4" UNF: LPOR-Kit-039-010 & 039-020
-
M20x1.5 / 13/16"-16 UNF: LPOR-Kit-039-010 & 039-028
-
M20x1.5 / 7/8" UNF: LPOR-Kit-039-010 & 039-024
-
M20x1.5 / 1"-12 UNF: LPOR-Kit-039-010 & 039-025
-
M20x1.5 / 1"-14 UN: LPOR-Kit-039-010 & 039-026
-
M20x1.5 / 1"-16 UN: LPOR-Kit-039-010 & 039-027
