Model: MaxxECU PDM20
Sale price$2,260.00

GST included Shipping calculated at checkout

Sold out

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

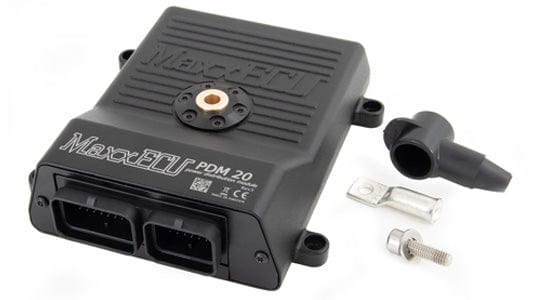

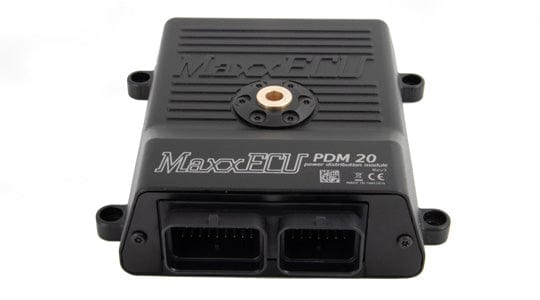

The MaxxECU PDM20 is an advanced Power Distribution Module for MaxxECU units and is designed to replace fuses and relays in a modern way.

Selected features:
Max 230A
20 outputs (8x25A 8x15A 4x8A)
7 digital / analog 0-24V inputs
All outputs can be PWM controlled
Dedicated +5V power supply and sensor ground
CAN bus for communication and setup management with MaxxECU MTune PC software
Overcurrent protected adjustable levels with automatic restart with soft start option
Warning levels for under over currents
Works with all MaxxECU devices
Support for CAN keypads
Error code handling
Built-in energy saving mode that draws only 0.004A

-40 to +125 deg C temperature range
Reverse polarity protection
6-22V operating voltage
32-bit ARM Cortex-M3 CPU
132x140x42mm (excluding protruding connectors)
1x 34-pin and 1x 26-pin Superseal connectors
M6 screw for battery connection
PC communication over CAN-bus via any Maxx ECU to MTune
Maxx ECU PDM 20 inputs
7 digital / analog (0-24V) inputs
Software selectable 12V pullup
CAN keypad (4,6,8,12 keys)
Maxx ECU PDM 20 outputs
230A maximum current throughput
All outputs are PWM capable
Current and voltage measuring
6 outputs with H-bridge drivers
Overtemperature protection
Output overcurrent protection via emulated fuse characteristics and hardware backup protection
Monitored +5V sensor supply output
Outputs can be paired to increase current capacity
