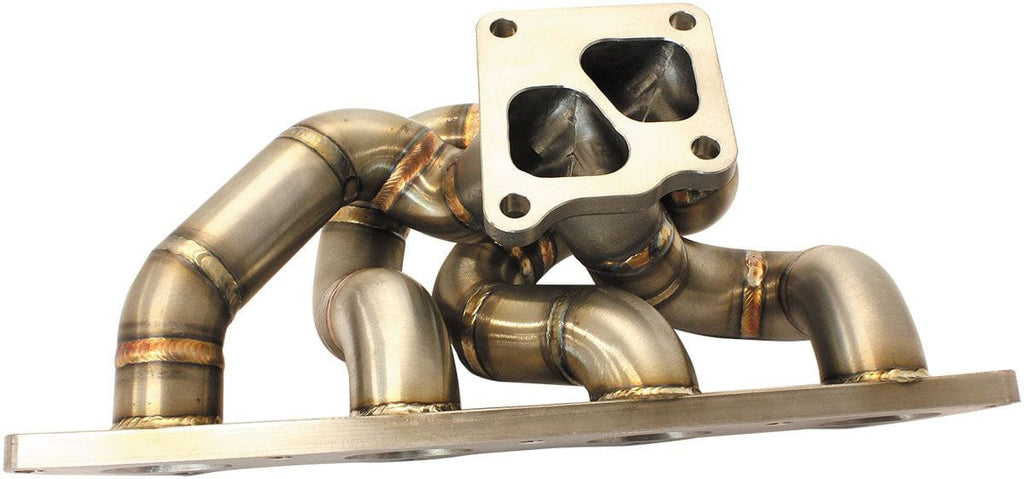

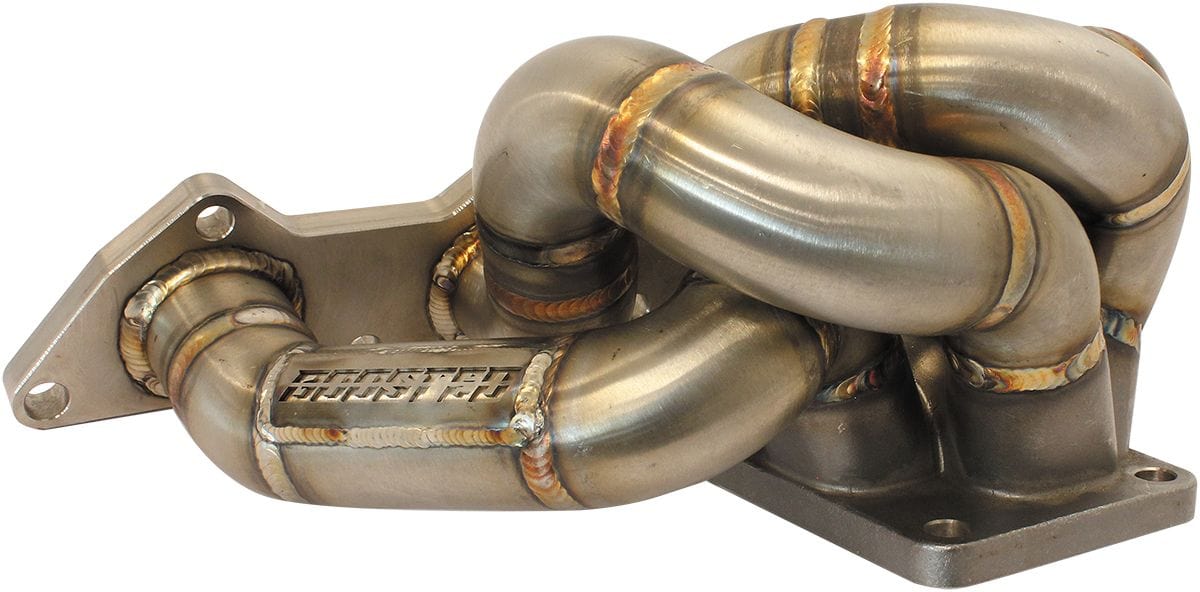

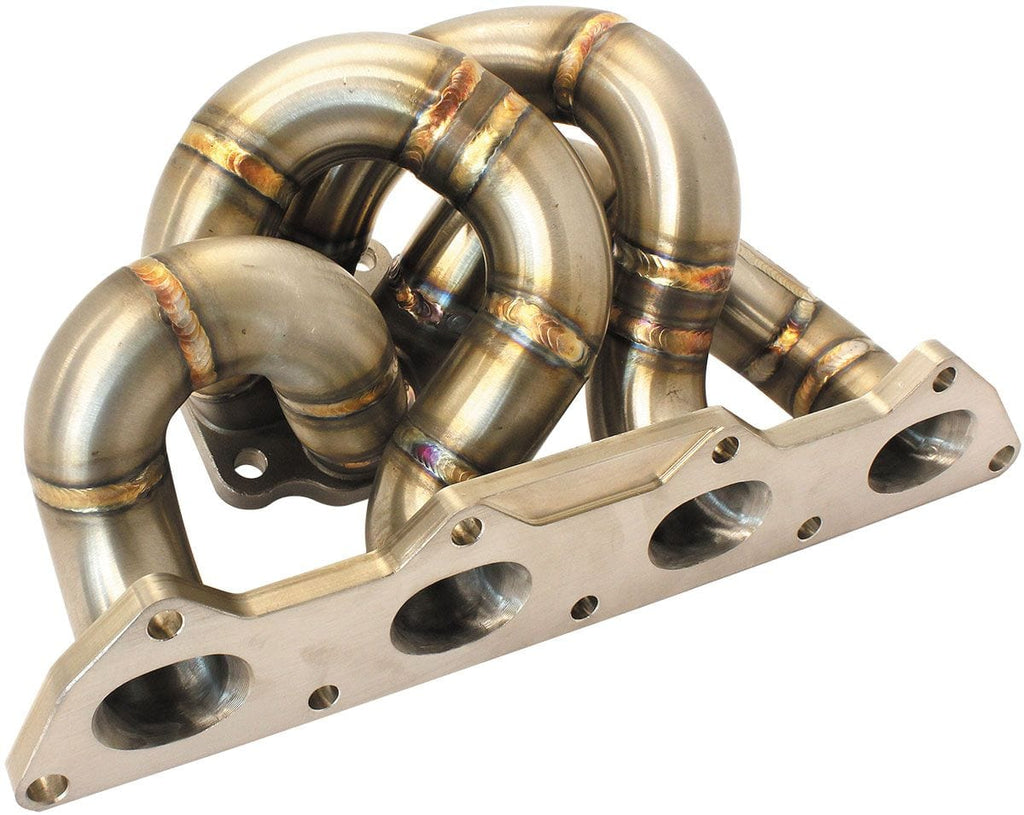

Mitsubishi EVO 4G63 V-Band Low Mount Stainless Steel Turbo ManifoldSuits Factory DSM Flangewith Internal WastegateBrand: AEROFLOWPart Number: AF8400-1100Description: Model - Mitsubishi Lancer Evo 4-9 with4G63 Engine turbo stainless steel steampipe manifold.
Turbo Collector Flange - Stock Frame OEM DSM 1g/2g.
Mounting Location - Low Mount Factory Position.
Turbocharger Style - Factory DSM 1g/2g Twin Scroll.
Wastegate Flange - Internal wastegate.
Aeroflow Performance stainless steel steampipe turbo manifolds are a series of pipes that collectexiting exhaust gases which can be channelled into our merge collector which are perfectly matched to our Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge togetherat a point in the middle, pointing straight into the turbine. No pipes enter acrosseach other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from our turbo manifold.
Aeroflowturbo manifolds are finished to the highest of standards, constructed from thick wall 3mm mandrel bent stainless steel steam pipe with CNC Machined header and turbo flanges. Each flange is milledafter welding to ensure precise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, andthe position the wastegate sits in.
We do recommendto have this manifold either wrapped with exhaust wrap or ceramic coated to ensure protection for external accessories and reduce under bonnet temperatures.
TheAeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegate sizes available.
