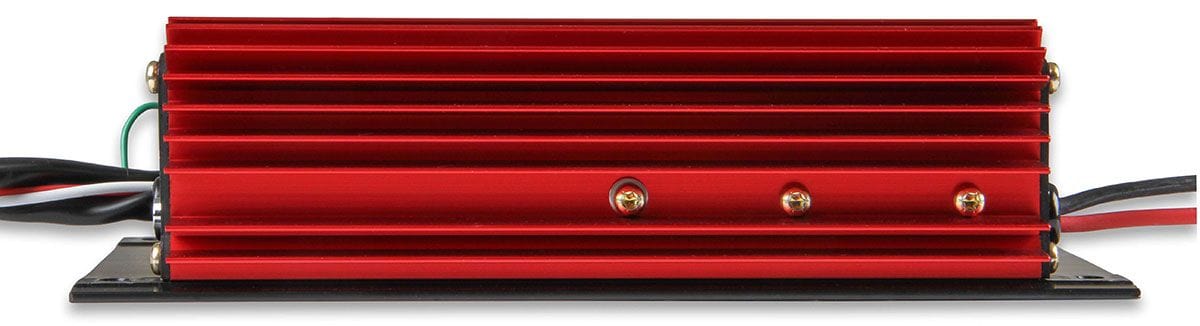

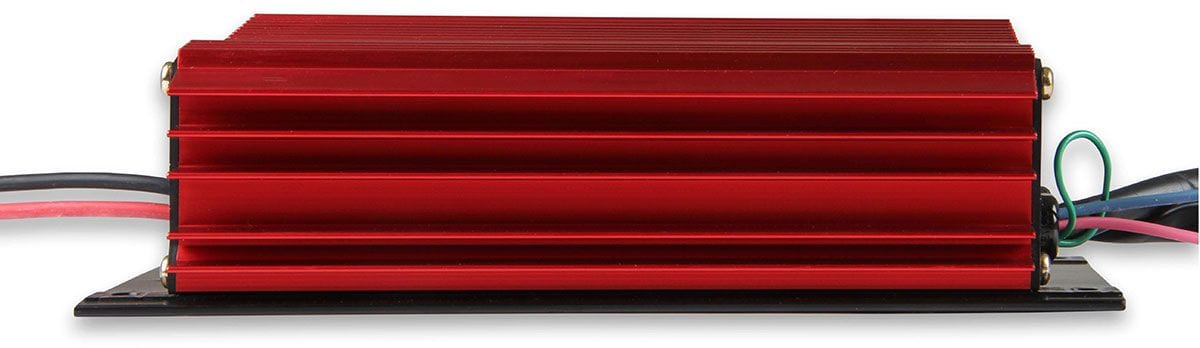

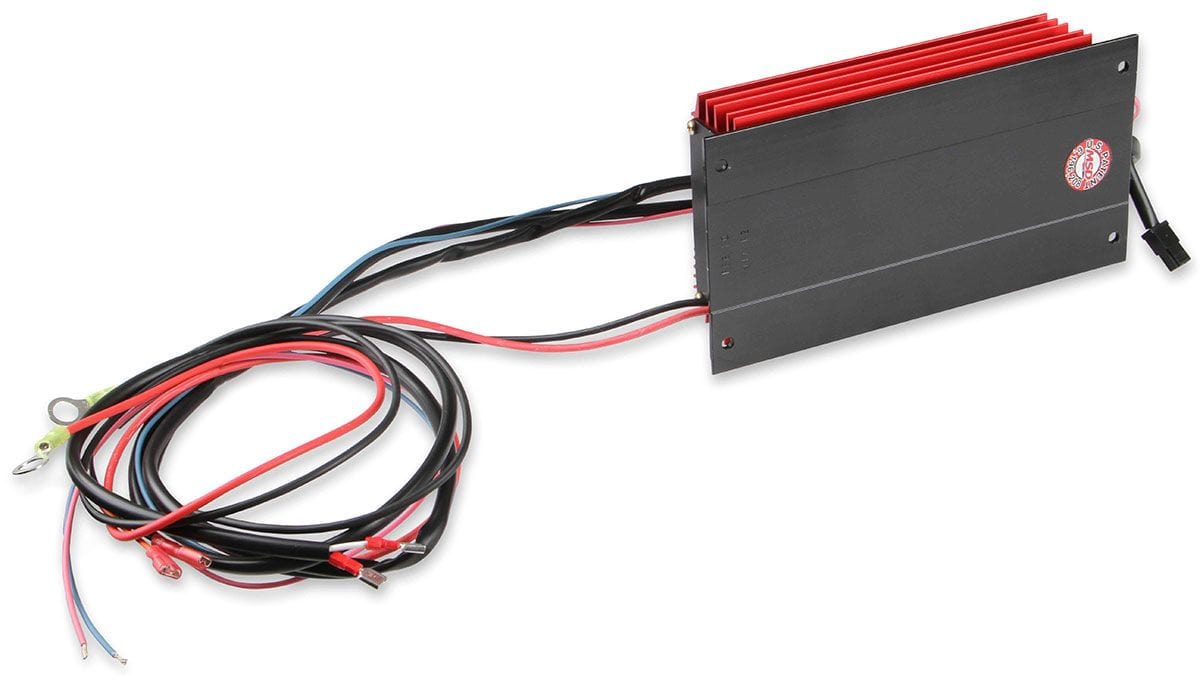

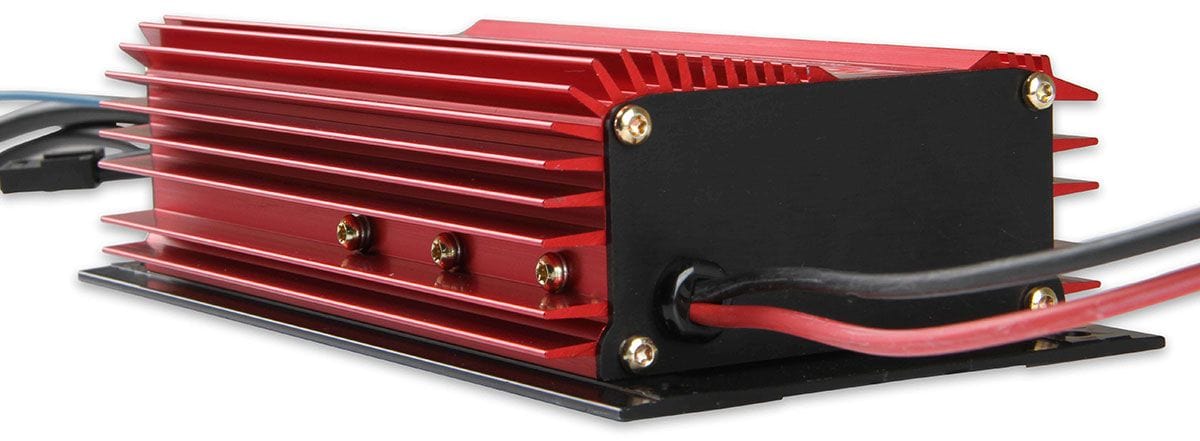

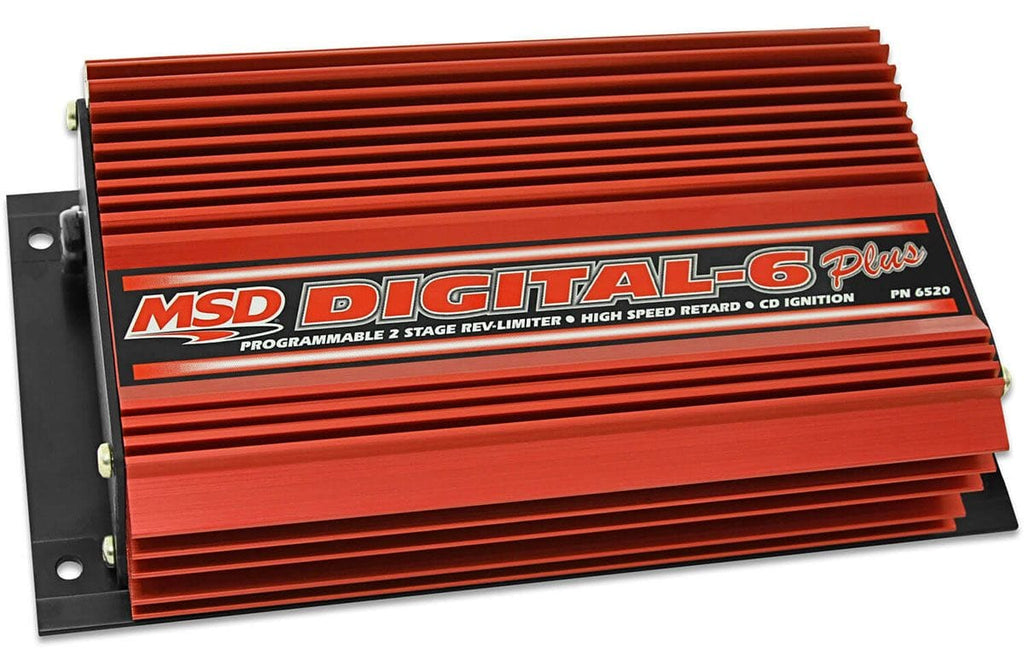

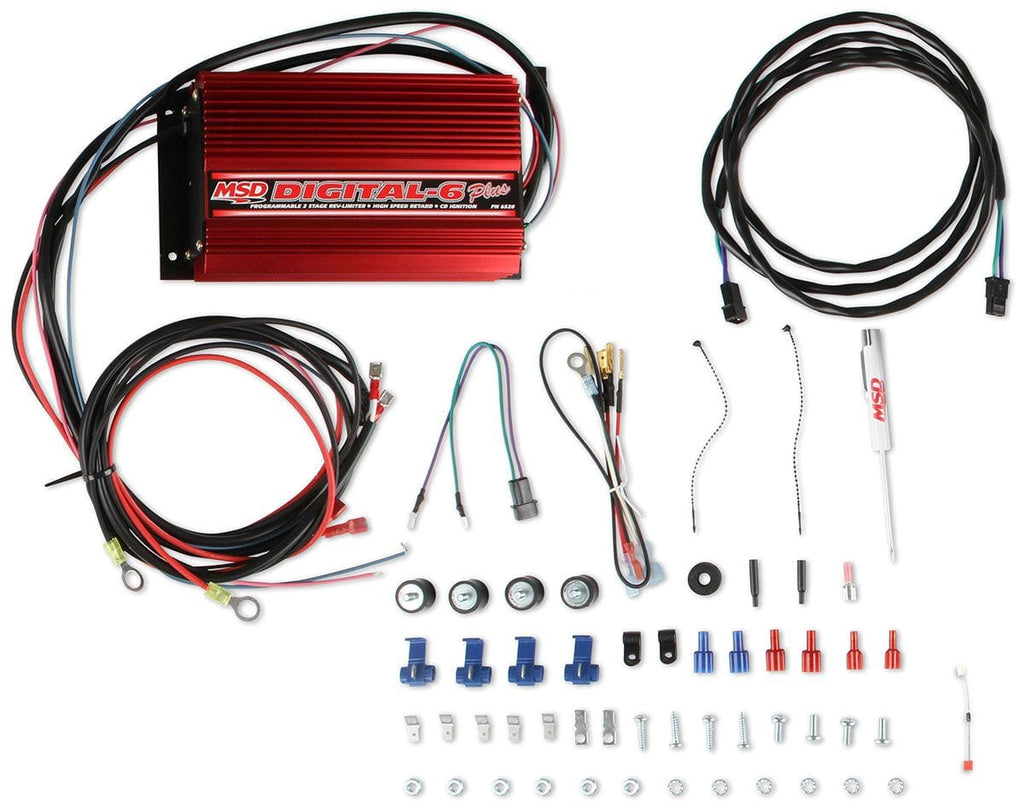

Digital 6-Plus Ignition ControlDigital, Capacitive Discharge, Multiple SparkBrand: MSDPart Number: MSD6520Description:
- Switch between two rev limits that adjust with rotary switches in 100 rpm increments.
- Single stage retard for nitrous and top end performance.
- Start retard eases pressure on the starter, flywheel and engine.
- Adjustable magnetic pickup compensation produces accurate trigger signals.
- LED display warns of trigger signal problems or faulty charging system.
- Fully potted with polyurethane for vibration and water protection.
The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy and great accessories making it ideal for street/strip applications. Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts. When used with the MSD Blaster HVC Coil, PN MSD8252, a spark with over 300 milliamp burns across the plug gap for 400 microseconds. Below 3,300 rpm the Digital-6 Plus produces s in the cylinder for up to 20 degrees of crankshaft rotation. This incredible heat ensures combustion to produce great power, quick throttle response, smooth idle and quick starts.
Operating Specifications:
Spark Energy : 135 millijoules/Spark
Primary Voltage: 535 Volts
Secondary Voltage: 45,000 Volts
Spark Series Duration: 20 Degrees Crankshaft Rotation
RPM Range: 12,500 RPM with 14.4 Volts
Voltage Required : 12 - 18 Volts, Negative Ground
Current Draw: .7 Amp per 1,000 RPM
Weight and Size: 3.7 lbs., 8.5"L x 4.5"W x 2.2"H
Tested with Blaster HVC Coil
