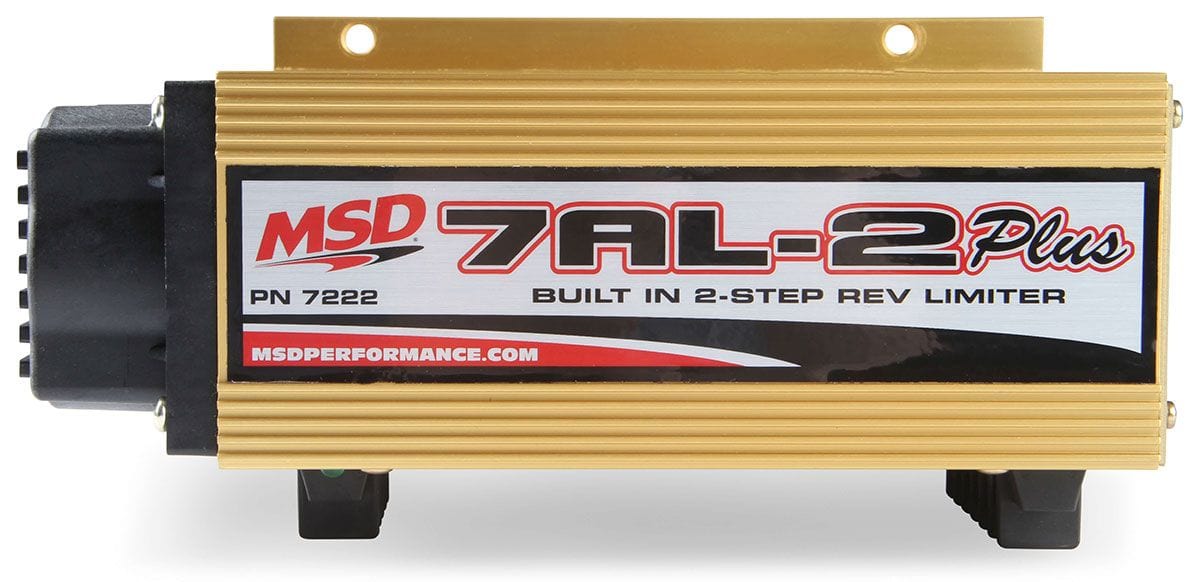

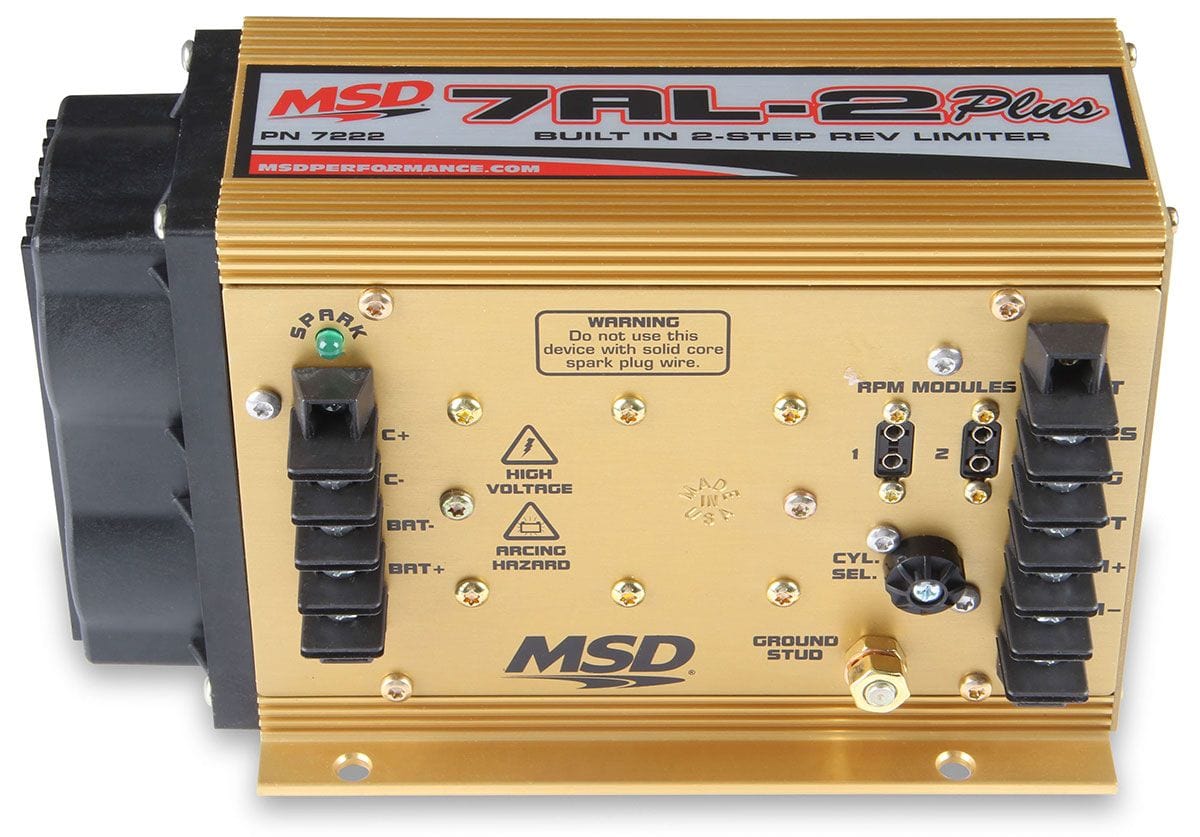

7AL-2 Plus Ignition ControlCapacitive Discharge, 2 Step Rev Control, suitable for Racing Applications onlyBrand: MSDPart Number: MSD7222Description:
- Built-in two step rev control
- Operates on 4, 6 or 8-cylinder engines
- Troubleshooting LED for spark output diagnostics
- Terminal strips for improved and easier wiring

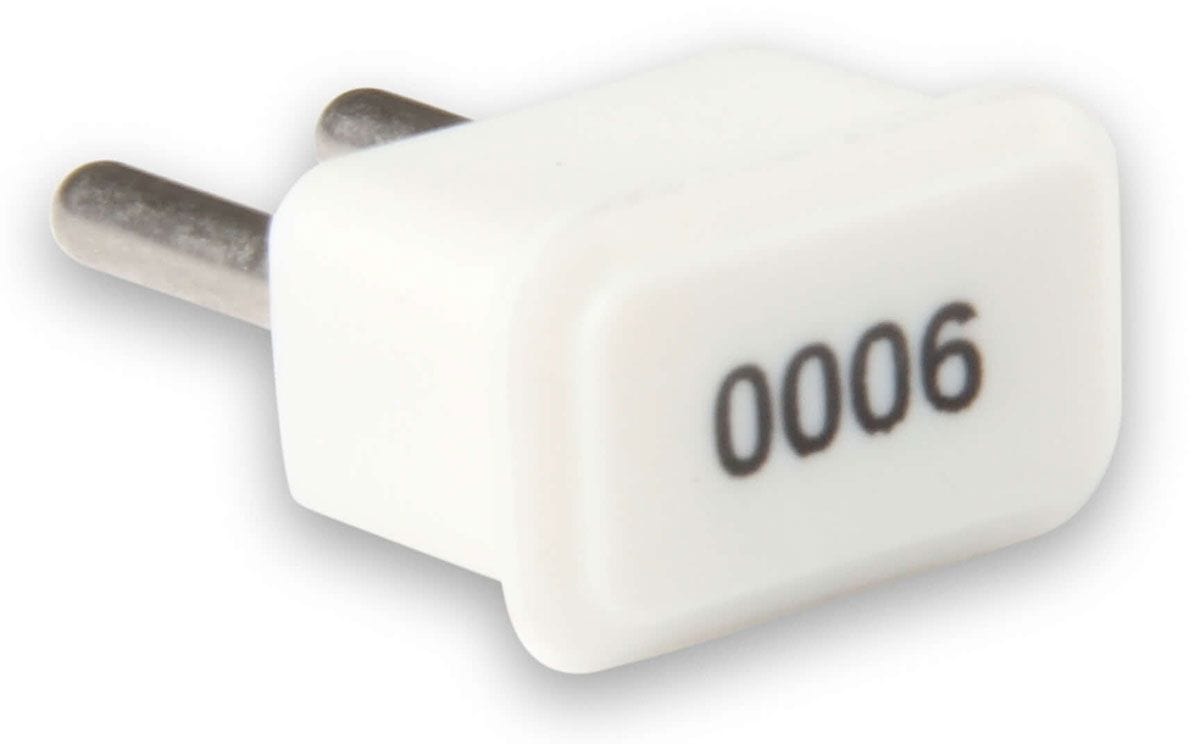

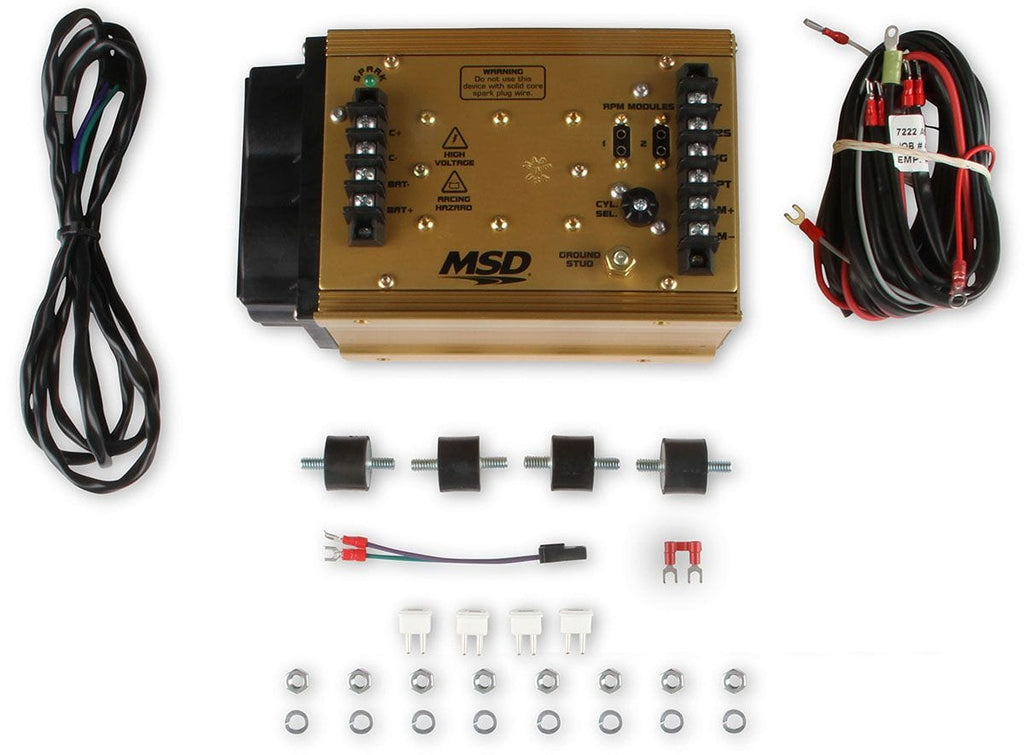

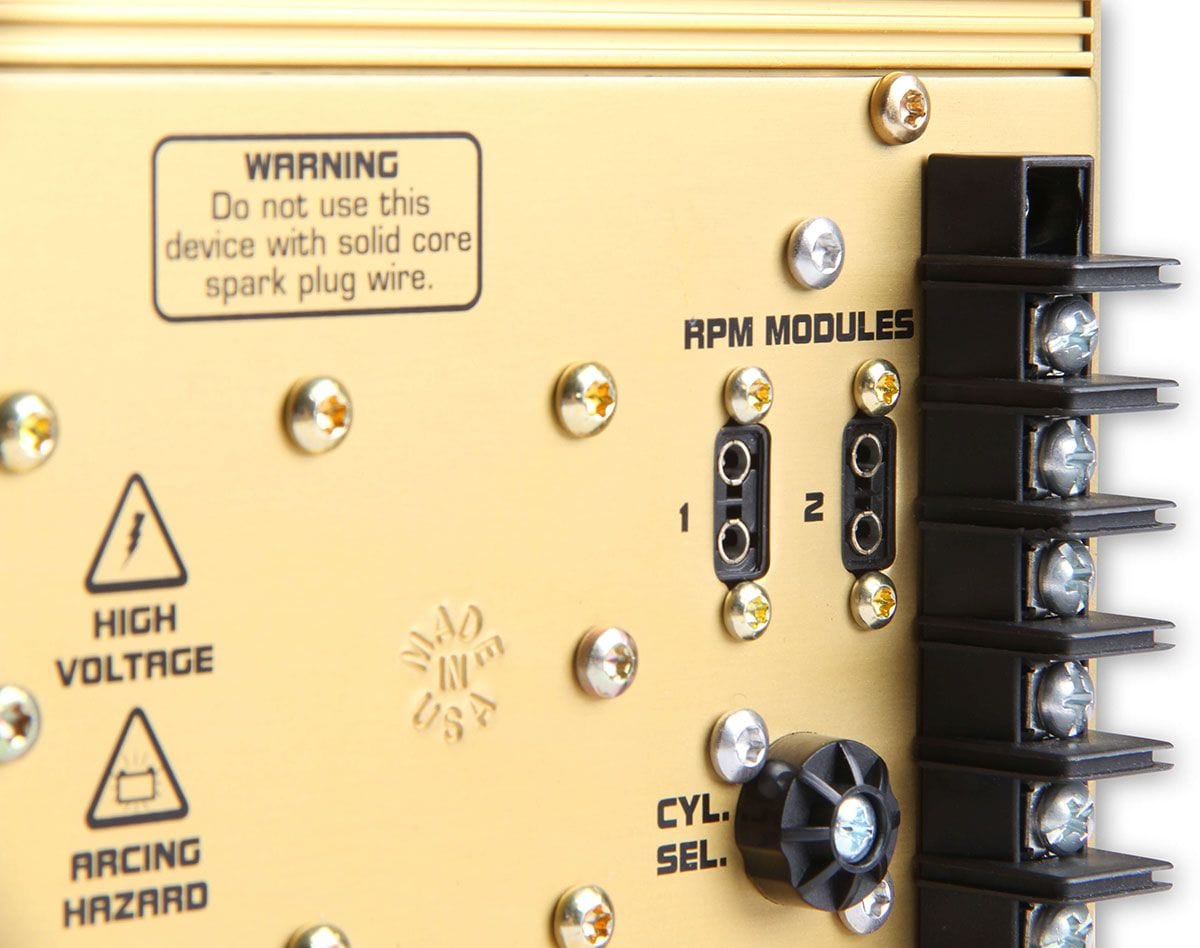

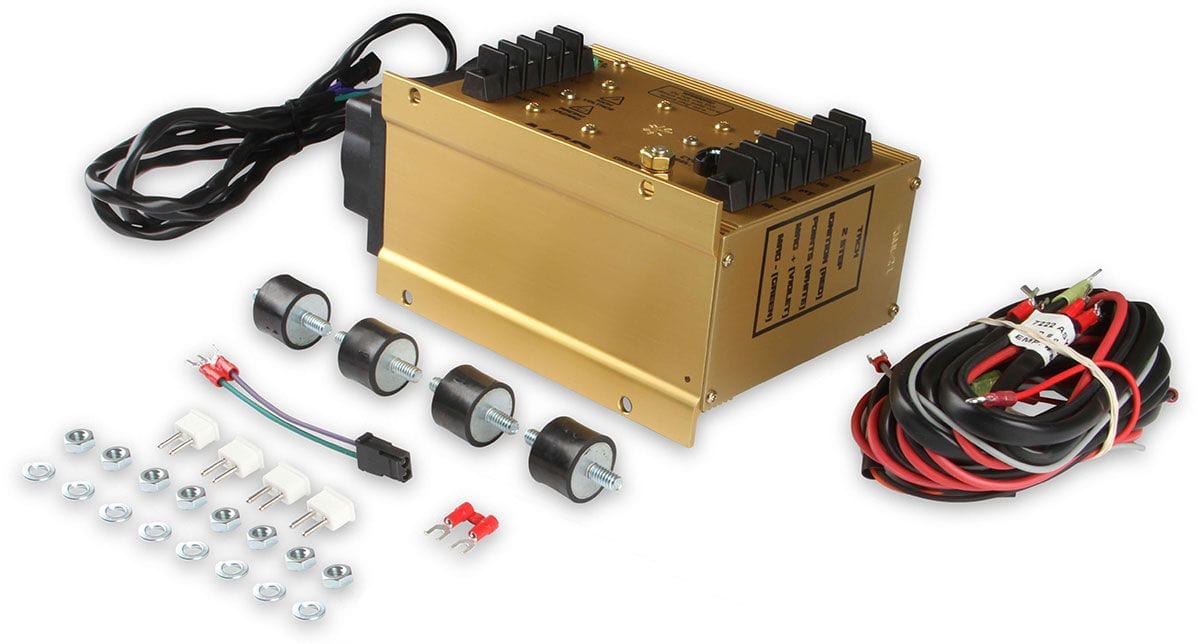

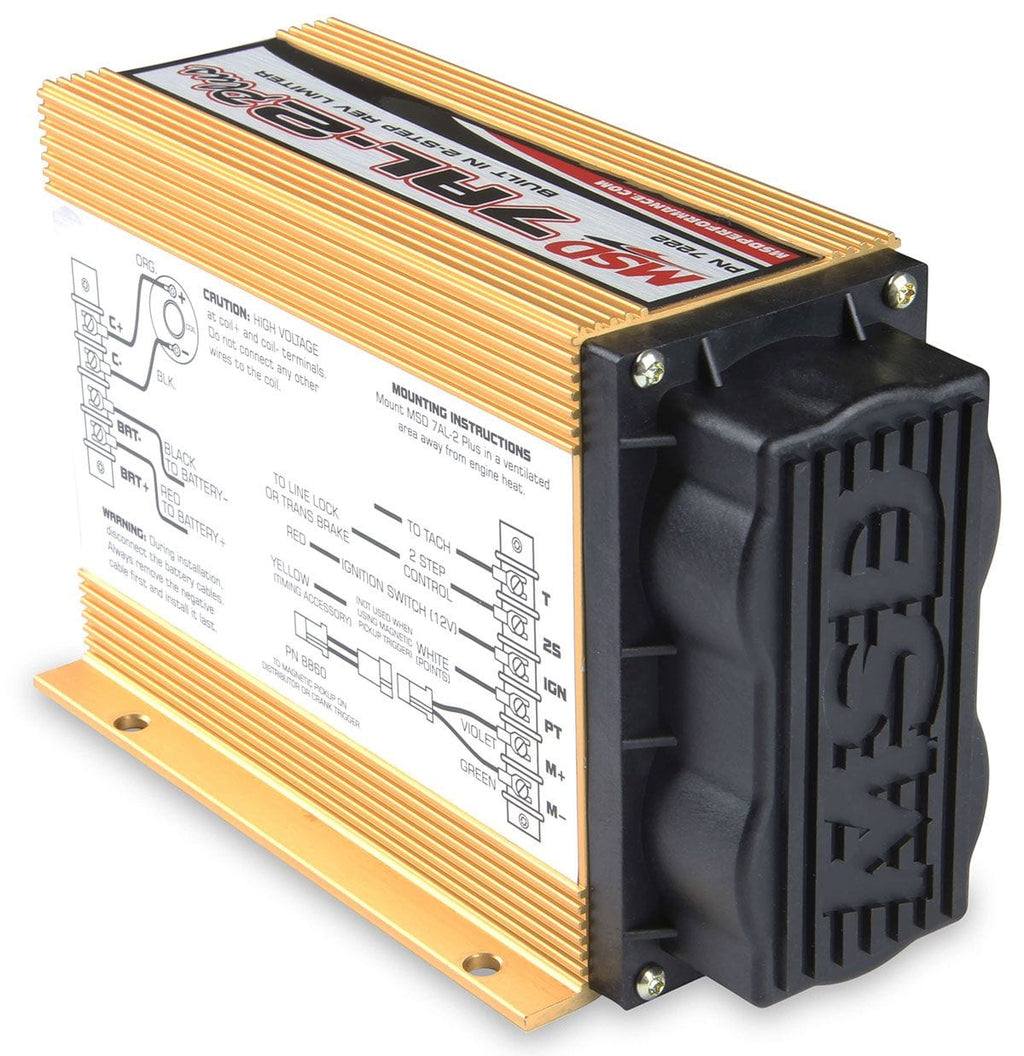

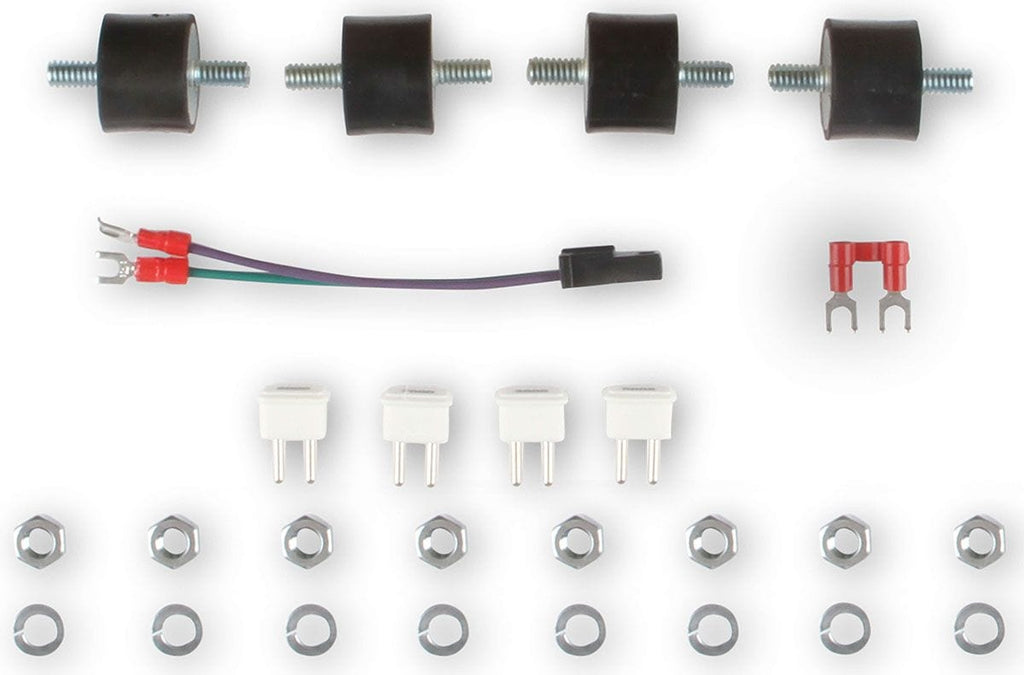

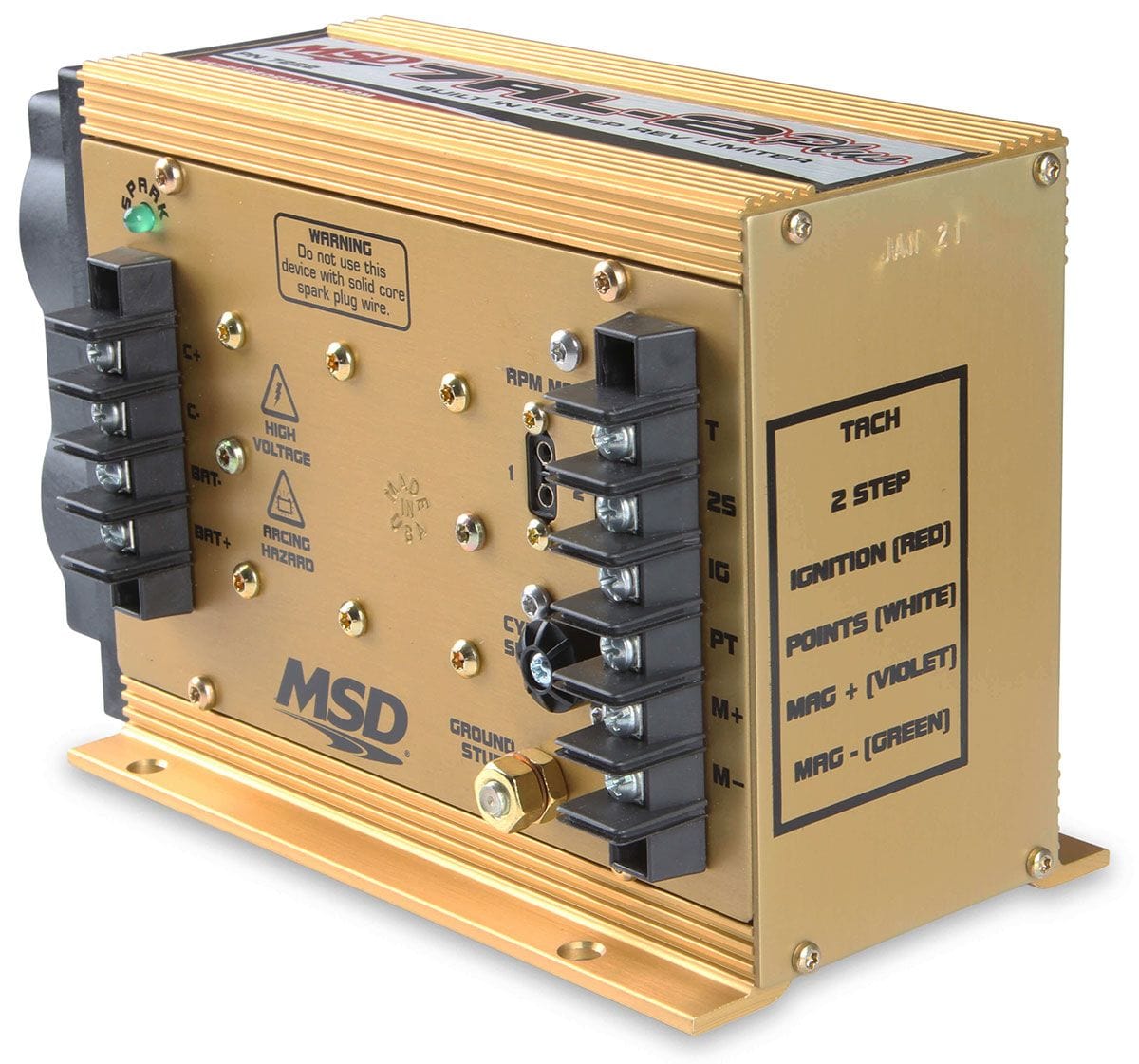

You'll recognise the 7AL-2 Plus Ignition Control, as its predecessor is the most popular ignition control used in drag racing. The "Plus" model updates the original 7AL-2 with improved internal components plus our engineers added a 2-Step Rev Control and a useful diagnostic LED. Racers will be happy to see that the updated components up the voltage output and spark energy! Over 50% more spark energy in fact! Visually, you'll notice the two terminal strips that allow for easier wiring in your race car. The LED over the power connections will come in handy for troubleshooting as it flashes only when the coil fires. That way you know that the coil, the trigger source and ignitio n are all y. The mounting pattern is the same as the 7AL-2 and is supplied with vibration mounts and a few rpm modules.
NOTE: MSD 7 Series Ignitions are not compatible with distributorless systems.
Operating Specifications:
Spark Energy : 160 millijoules/Spark
Primary Voltage: 570 Volts
Secondary Voltage: 47,000 Volts
Spark Series Duration: 20 Degrees Crankshaft Rotation
RPM Range: 14,000 RPM with 14.4 Volts
Voltage Required : 12 - 18 Volts, Negative Ground
Current Draw: 6 Amp per 6,000 RPM
Weight and Size: 4.85 lbs., 8.25"L x 3.75"W x 5.75"H
Tested with Pro Power Coil
