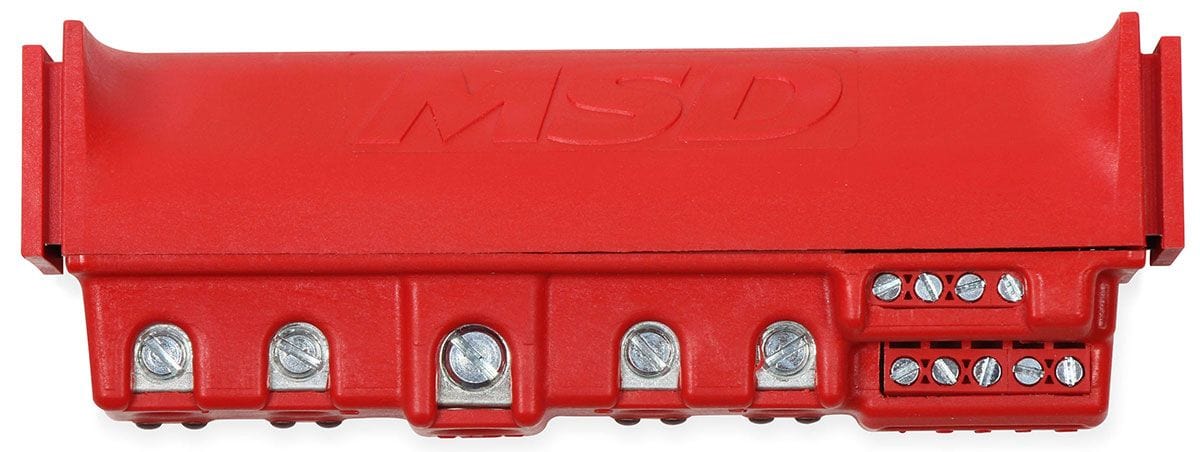

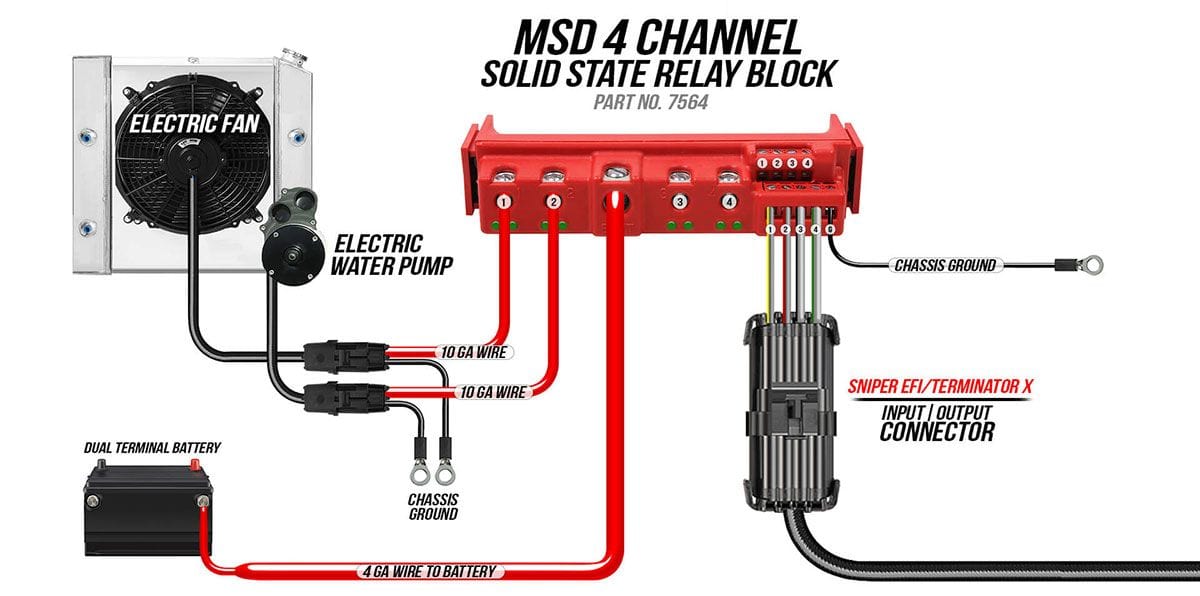

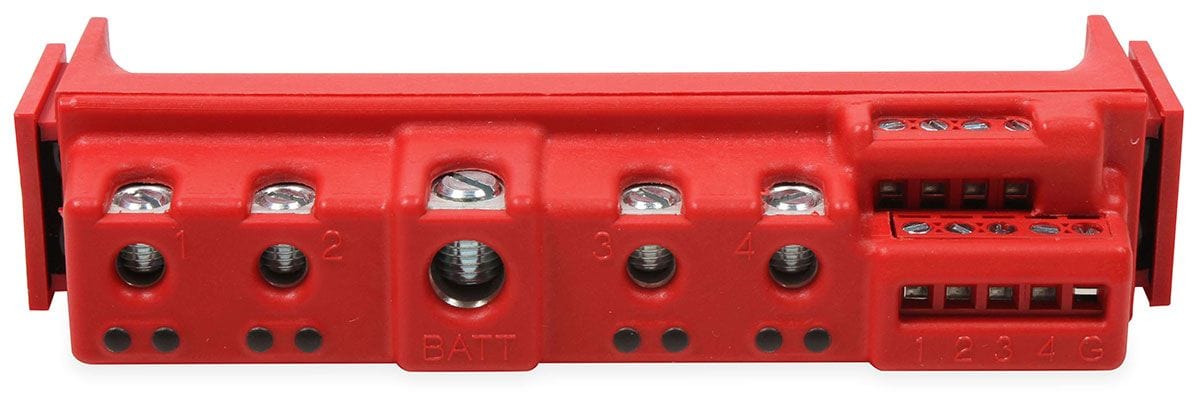

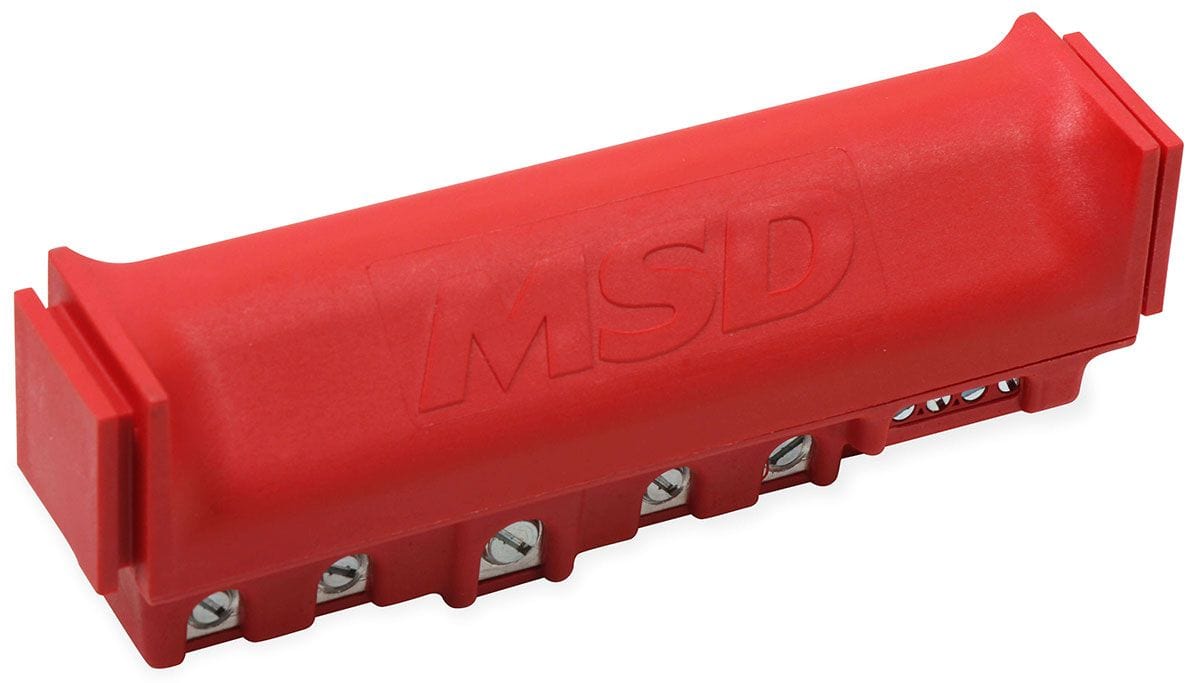

Solid State Relay Block4 x 20AMP ChannelsBrand: MSDPart Number: MSD7564Description: Clean up your wiring with an MSD Solid State Relay Block. This module takes the place of 4 standard relays andeliminates unsightly wiring. 4independent channels can be activated using either power or ground. Each channel is capable of handling 50 Amps for up to 8 seconds or 20 Ampsof continuous current. With 4 channels providing up to 200 Amps of momentary or 80 Amps constant combined power, you can easily control electric fans, water pumps, nitrous solenoids, auxiliary lighting and any other electrical accessories that would normally require a relay.

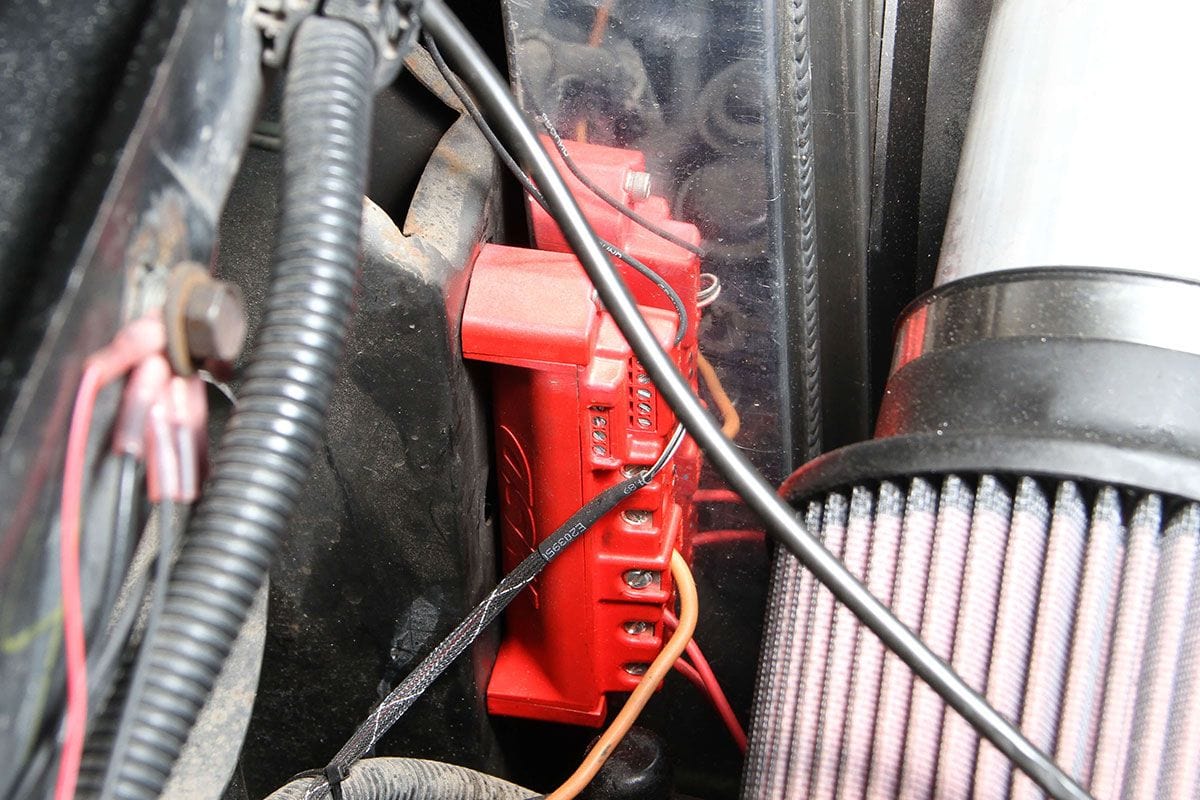

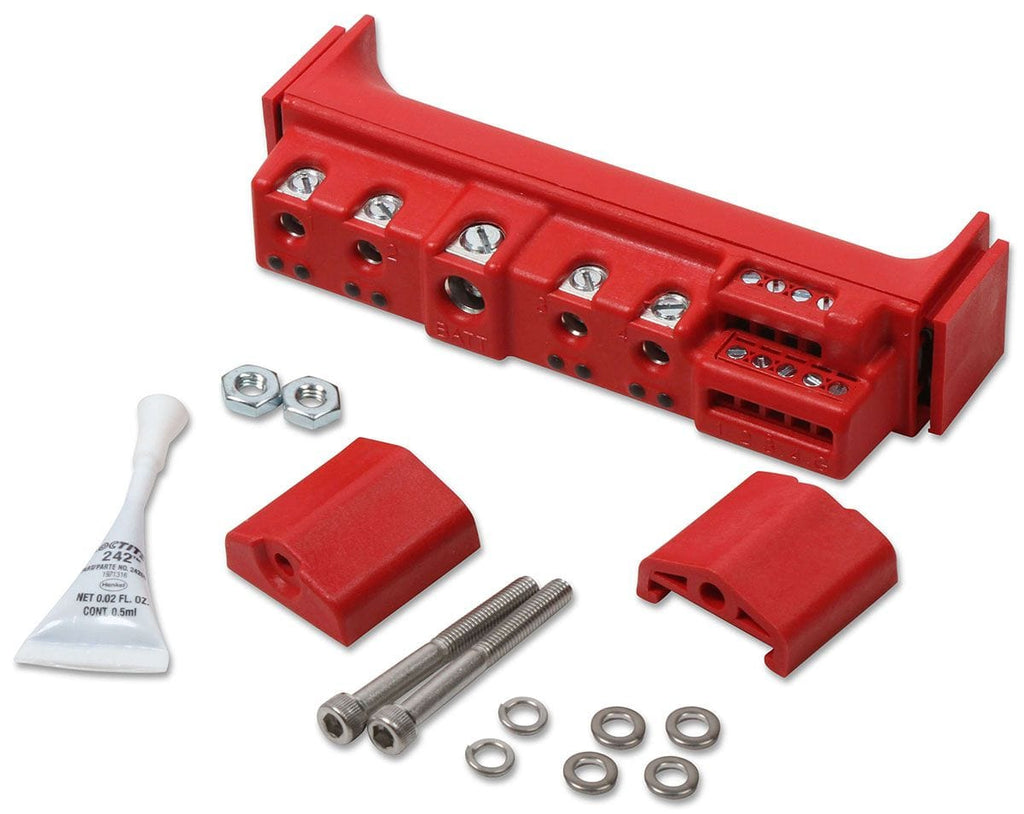

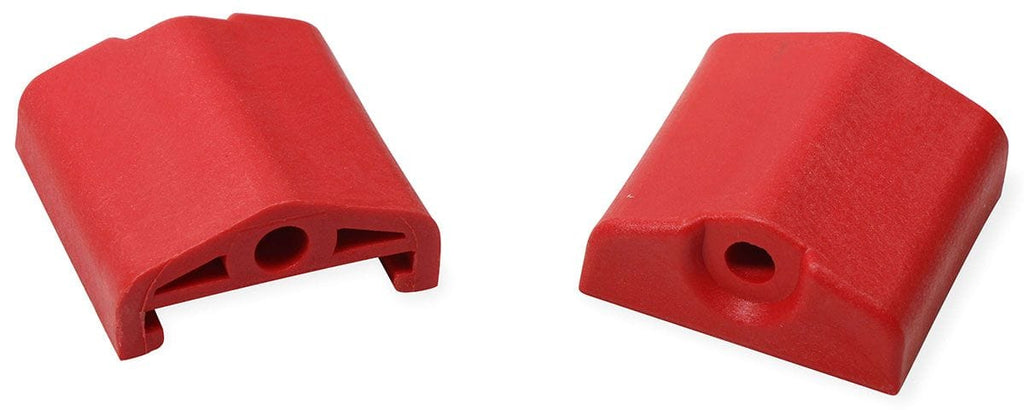

LED status indicators ensure proper wiring and operation of each channel. Should a problem arise, the relay block has built-in automatic over-temp, short circuit and overload protection. The 7564 can easily be mounted using the supplied hardware and mountingtabs that can be rotated 90° to accommodate variousmounting locations. It's compact and clean design will make your wiring project a breeze.
Features:
- 4 Channels, Up to 50 Amps each
- Clean, easy install with minimum wiring
- Over temp, short circuit and overload protection

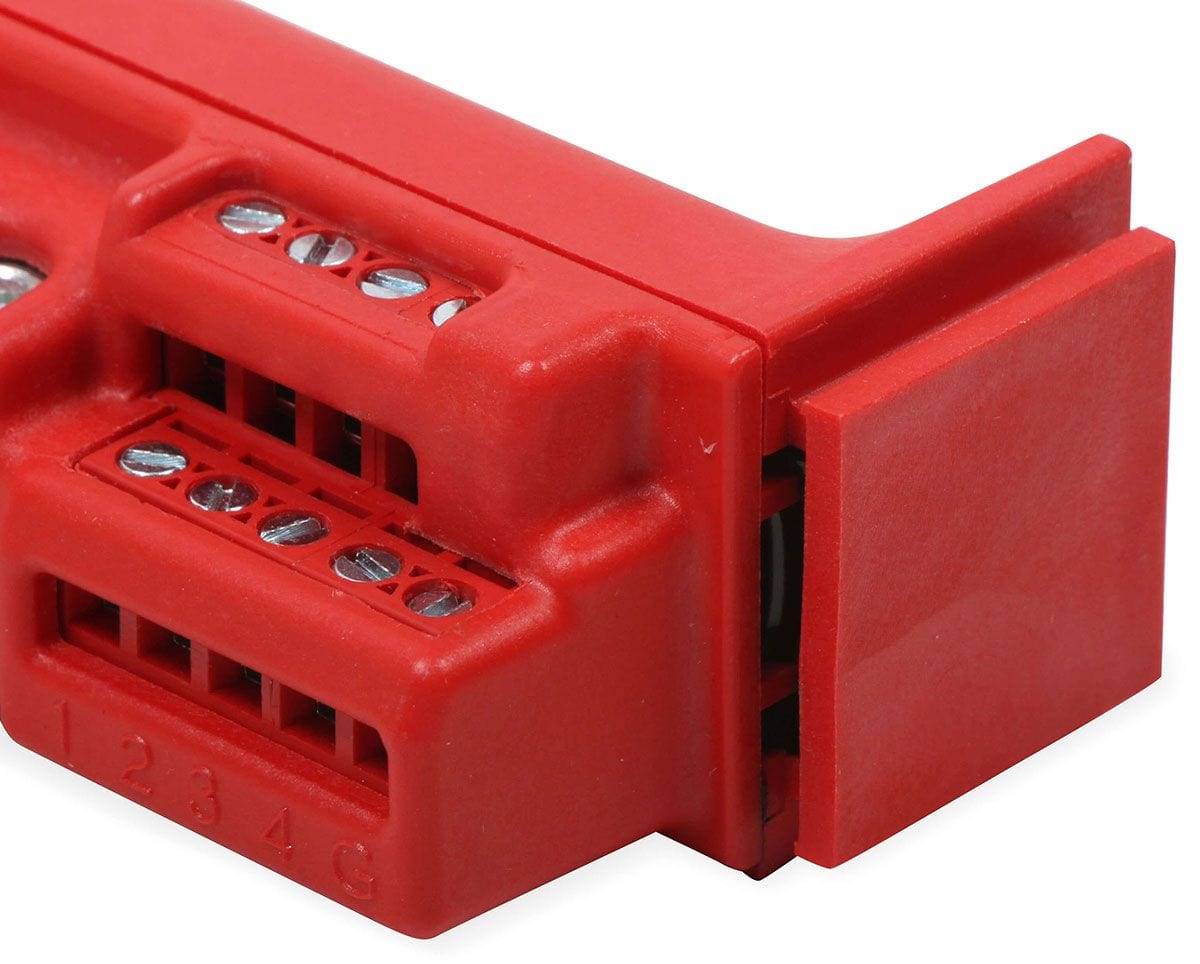

- Diagnostic LED's
- Multiple mounting options
- Activate with power or ground
- Channels can berun in parallel for devices requiring more than the single-channel rating
