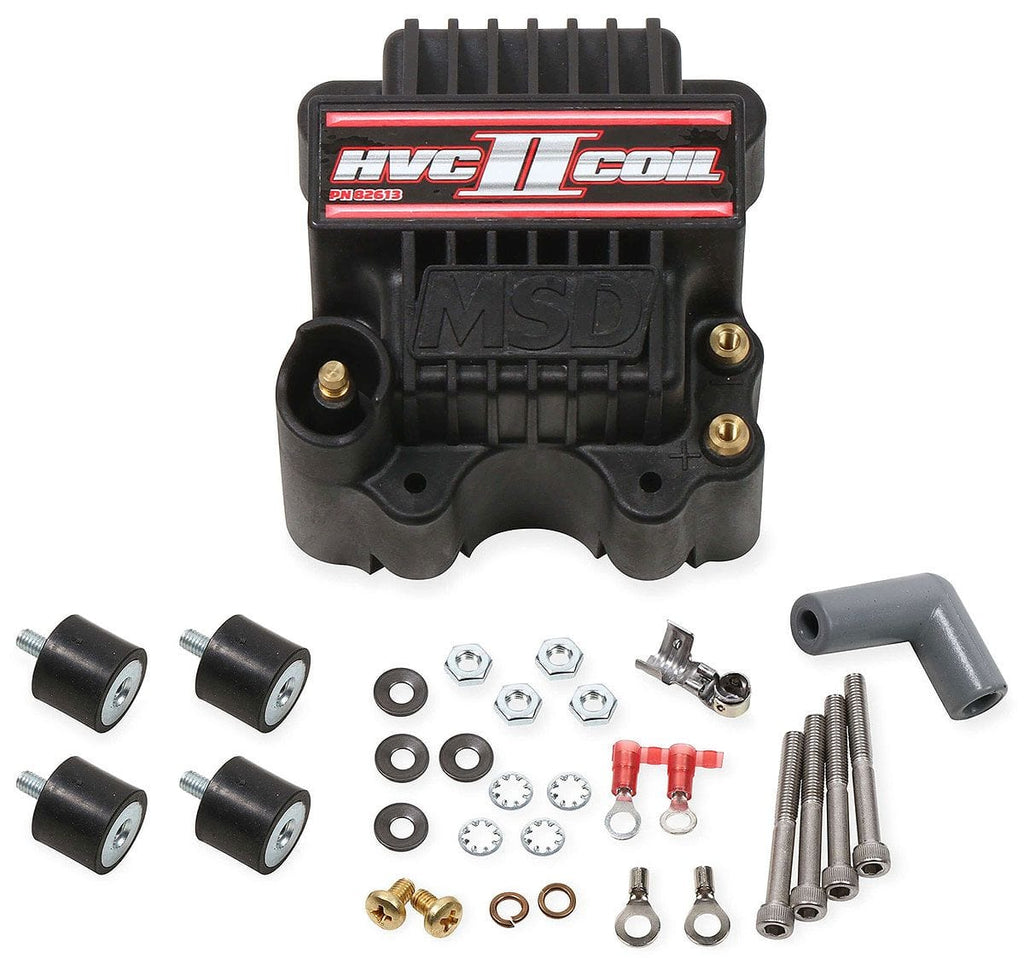

MSD HVC Pro Power II Coil - Black MSD82613

• Designed for racing applications with an MSD 7 Series Ignition Control
• New U-core winding design produces more voltage and current
• 70:1 turns ratio and lower primary resistance produce high voltage output
• Windings are encased in fracture resistant compound for vibration resistance
• Dupont Rynite housing with isolated tower and brass primary terminals
• Supplied with rubber shock mounts

The Pro Power HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilises an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is moulded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of endur ing ether, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration. The housing, also moulded from Rynite material, features far spaced brass primary terminals and a well protected secondary tower for increased spark isolation. The housing is completely potted with an epoxy compound for vibration resistance and installs with sturdy vibration mounts. For use with MSD 7 and 8 Series Ignitions.
