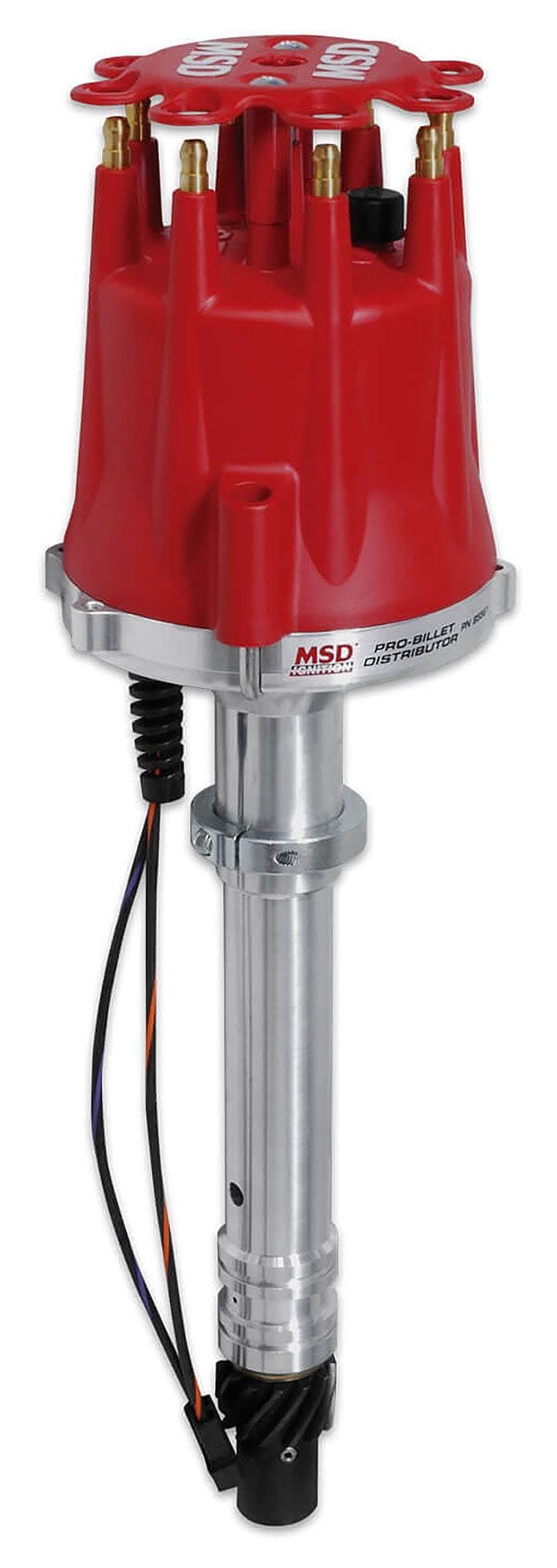

Pro-Billet DistributorSmall/Big Block Chevy, Magnetic Trigger, Adjustable Slip CollarBrand: MSDPart Number: MSD85561Description:
- CNC machined billet aluminium housing and billet aluminium base
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance weight pins are staked and tig welded to the plate
- Nylon pads ensure smooth operation of the advance weights
- Special oil tract improves lubrication to the distributor and cam gear
- O-ring seals can be added to modified blocks to improve oil pressure control
- Supplied with an HEI styl e (accepts Cap-A-Dapts)
- Must be used with an MSD 6, 7 or 8-Series Ignition
- Will not accept a vacuum advance canister
This is our most popular performance distributor! The housing is machined from a billet of 6061-T6 aluminium on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenance free! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application.
