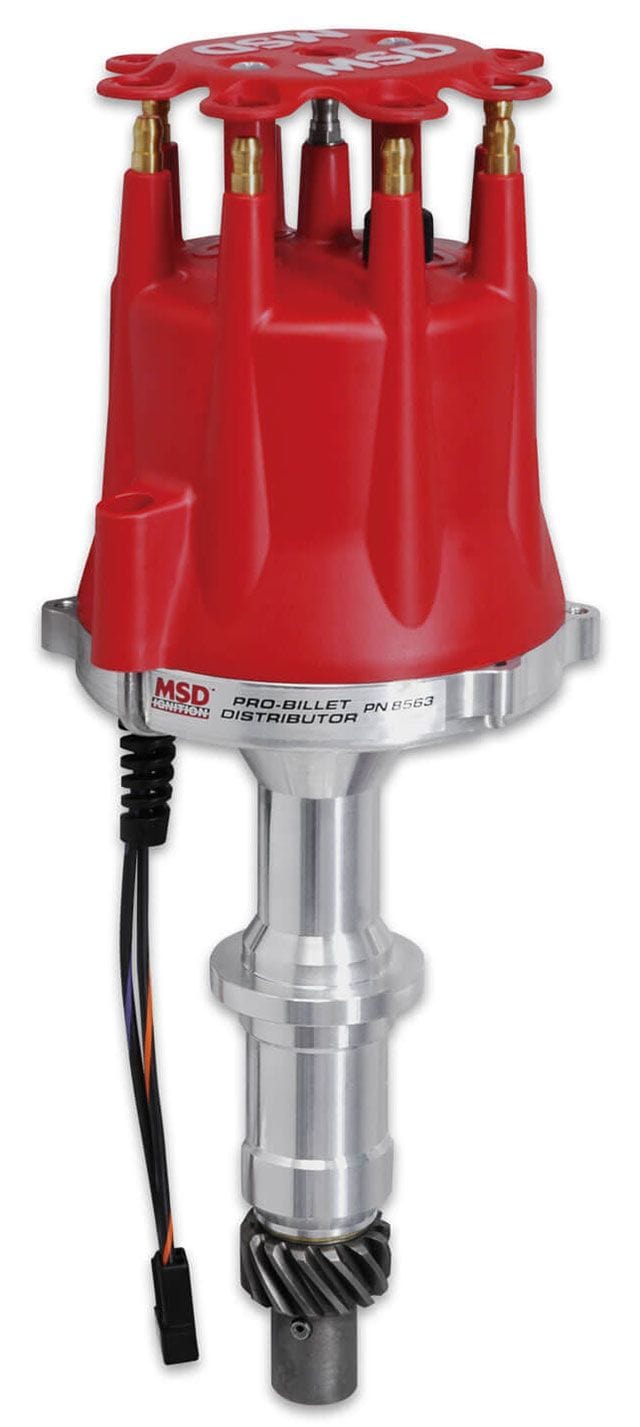

Pro-Billet DistributorPontiac V8 326-455, Magnetic Trigger, Mechanical AdvanceBrand: MSDPart Number: MSD8563Description:
- CNC machined billet aluminium housing and billet aluminium base
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance weight pins are staked and tig welded to the plate
- Nylon pads ensure smooth operation of the advance weights
- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- Must be used with an MSD 6, 7, 8 or 10 Series Ignition.
- Will not accept a vacuum advance canister
- To suit Pontiac 326, 350, 389,40 0, i>
MSD's Pro-Billet Pontiac V8 Distributor for Pontiac engines built for either street performance or hard core racing applications. Special features include a fully adjustable mechanical advance assembly. For all-out racing, the advance mechanism can also easily be locked-out. For stable timing, a high-output magnetic trigger pick-up is used to supply the ignition with a trigger signal. Additional stability is achieved via the 0.500" hardened distributor shaft that is supported by sealed ball bearings.
