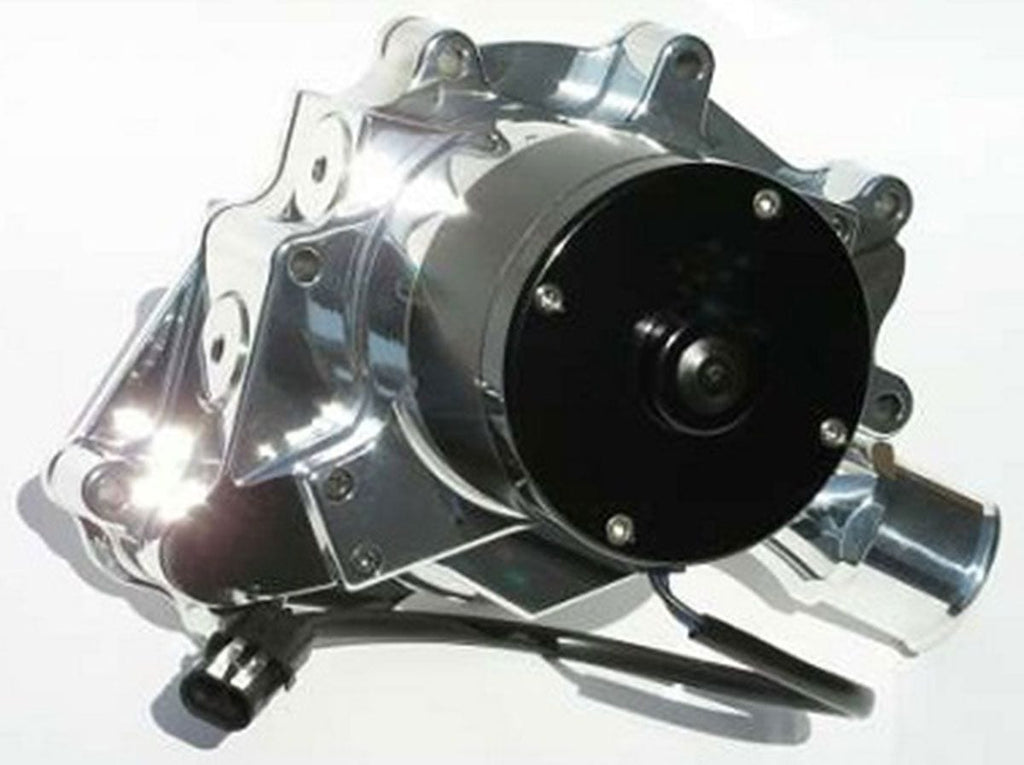

Electric Water Pump, Fits Ford Windsor / 5.0, High Flow Style, Polished Finish55GPM, Standard MotorBrand: MEZIEREPart Number: MZWP311UDescription: American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. Our 300 series pumps move more water and produce more pressure than any other electric pump on the market. That means better protection for your high horsepower, high demand engine!
This water pump model features:
- Fits small block Ford Windsor and 5.0 models pre 1994
- Suitable for street or drag strip use - 3000 hour life expectancy
- Show quality polished finish
- Standard motor provides 55 gallons per minute free flow rating
- All stainless steel hardware included
- Ports provided for heater and bypass
- Inlet fitting, heater and bypass fitting included
- Driver's passenger's side lower hose connection
- Stainless steel large diameter main shaft with high performance ceramic seal
- Alternate inlet fittings available
Technical Specifications :
- Belt Drives: If you are running a cam belt drive on your small block Ford, you will most likely need the WP173 pump. This pump will not fit Yates, Danny B, Jesel, or Race Master belt drives.
- Finishing The System: This pump is supplied complete with gaskets, hardware and fittings. No additional items should be necessary.
- Amperage draw: Under normal use the pump will draw 11-12 amps.
- Overall Height Dimension: The standard pump is 5.55" long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 8.6 lbs.
- 16 volt systems: When purchasing a pump for a 16 volt system we recommend the 16 volt optional motor on our pump. The 12 volt pump will work for limited use applications.
Additional Notes:
The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does accept heater or bypass hoses as a standard.
The small block Ford engine has gone through several design changes at the factory since its inception. There are two different 55 GPM pump models that may be right for your engine.
Accessories for Small Ford:
Relay Wiring Kit upgrade WIK346
