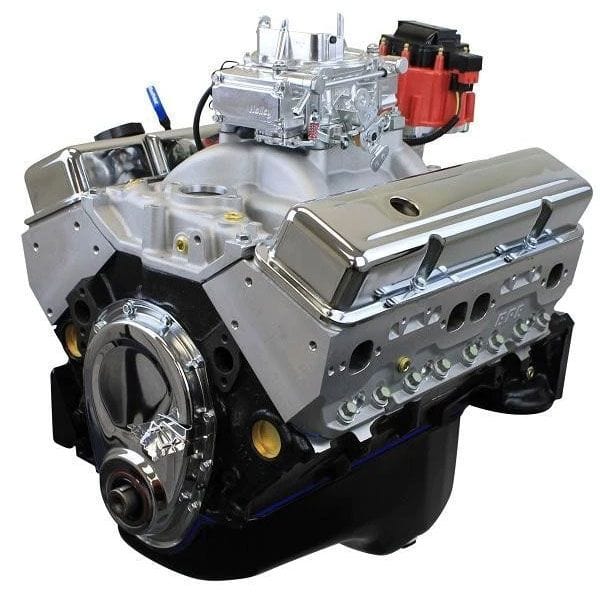

SB Chev 350ci 341 Horsepower Crate Engine371 FT LBS Torque, 9.2:1 Comp, Aluminium Heads, Hydraulic Roller CamshaftBrand: BLUEPRINTPart Number: PSEBP350CTCDescription: BluePrint Engines builds high-performance crate engine to replace your tired old factory engine! These crate engines are high-performance drop-in engines offering substantially more horsepower than the factory original. Crate engines or crate motors from BluePrint Engines offer acustom builder, hot rodder, orkit car builder an engine thatis ready to drop in the vehicle. BluePrint crate engines come in several levelsof dress - from a shortblock all the way to complete with all the components that will be needed to start and run theengine very quickly. No extensive cleaning or installation of parts is required. In addition, BluePrint crate engines are dyno-tested and are shipped with a documentation of their high-performance power curve.
HP & Torque: 341 HP / 371 FT LBS
Compression Ratio: 9.2:1
Aluminium Heads
Hydraulic Roller Cam
Cast Iron Crankshaft
Hypereutectic Pistons
BLOCK: NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000"Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled andtapped for clutch linkage
ROTATING ASSEMBLY:Cast Iron Crankshaft
3.480" Stroke
Forged 5.700" connecting rods
Hypereutectic pistons
Internal Front/ ExternalRear engine balance
CYLINDER HEADS:BluePrintAluminium Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners
CAM SPECS:Cam Type:Roller
.477 Intake .471 Exhaust
202 Intake / 212 Exhaust duration
@ .050 -115 degree lobe separation
IGNITION TIMING:32 Degrees Total at 3500 RPM
ALSO INCLUDES:Valve covers
Oil pan
Timing cover
Aluminium intake
HEI distributor
600cfm carburettor
Dyno testresults shipped with engine
