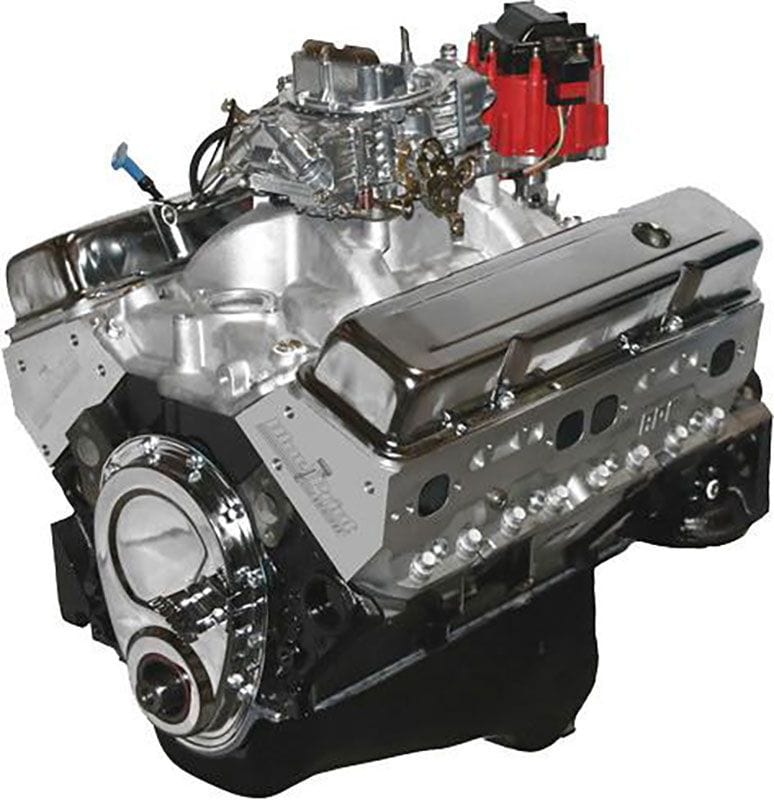

SB Chev 383 c.i.d Crate Engine, Dressed435 hp/450 ft-lbs torque, 10.0:1 CompBrand: BLUEPRINTPart Number: PSEBP38318CTC1Description: NOTE: Pictures of Crate Engines are for reference only, engine componenets & accessories are subject to change by manufacture without notice based on availability of partsat time of assembly.
EngineFeatures
- HP & Torque: 435 HP / 443 FT LBS
- Compression Ratio: 10.0:1
- AluminumHeads
- Hydraulic RollerCam
- Cast Steel Crank
- Hypereutectic Pistons
BLOCK:
- Hand picked seasoned block
- Square and parallel decked
- Align honed main bearing bore
- Cylinders honed on computer controlled machineto within .0002 straightness and roundness
- Cylinders are sonic tested for thickness
- 4-Bolt Main
- 4.000" Bored .040" Over
- 1-Piece Rear Main Seal
- Mech fuel pump provision: Yes
- Passenger Side Dipstick
- Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
- New BluePrint Cast steel crankshaft
- 3.750" Stroke
- OEM type 5.700"connecting rods w/ 150,000 psibolts
- Hypereutectic pistons
- External Front/ External Rear
CYLINDER HEADS:
- BluePrint Aluminum Cylinder Heads - H8002K
- 64cc chamber
- 2.02" intake/1.60" exhaust valves
- 195cc intake/75cc exhaust runners
CAM SPECS:
- CamType: Roller
- .544 Intake .555 Exhaust
- 230 Intake / 236 Exhaust duration
- @.050 - 110 degree lobe separation
IGNITION TIMING:
- 34Degrees Total at 3500 RPM
ALSO INCLUDES:
- Valve covers, oil pan and timing cover
- Aluminum Intake Manifold
- HEI distributor
- 750cfm Carburetor
- Brass freeze plugs
- Dyno tested and shipped with results
NOTES:
- Notfor use in pollution controlled vehicles.
- The harmonicbalancer recommend for the BP38313CTC1 is a 400 ci weighted, 8" diameter.
- The flexplate / flywheel recommendfor the BP38313CTC1 is a late 350 Weighted (1 pc Rear Main Seal, Externally balanced)
- Recommended Stall Converter: 2000 to 2400 RPM.
