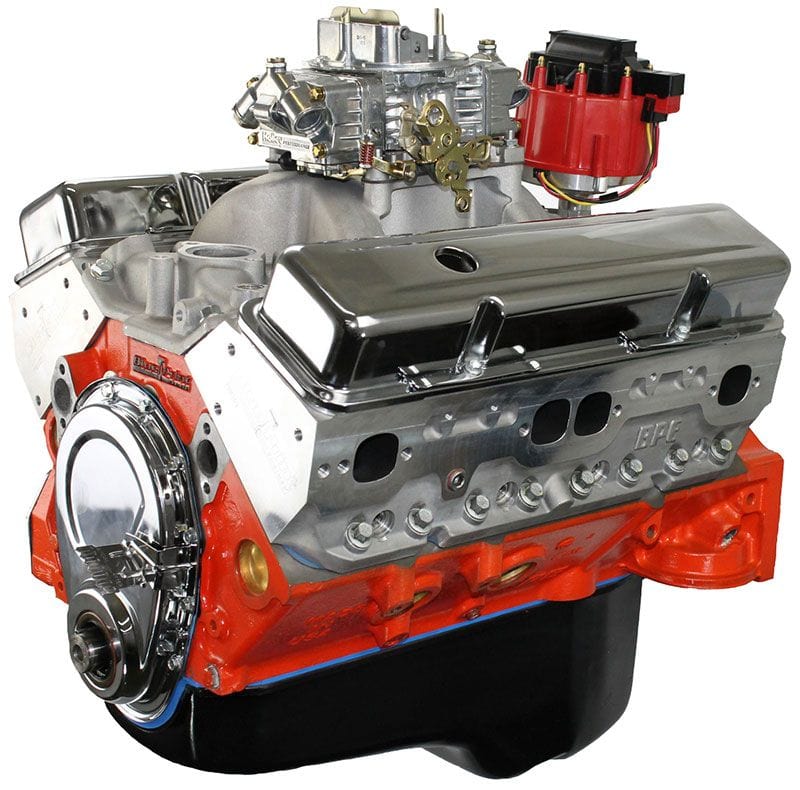

SB Chev 400 c.i.d Crate Engine, Dressed508HP / 473 FT LBS, 10.3:1 Comp, Aluminium Heads, Hydraulic RollerBrand: BLUEPRINTPart Number: PSEBP4002CTC1Description: NOTE: Pictures of Crate Engines are for reference only, engine componenets & accessories are subject to change by manufacture without notice based on availability of partsat time of assembly.
DESCRIPTION
- Dyno Tested
- HP & Torque: 508 HP / 473 FT LBS
- Compression Ratio:10.3:1
- Aluminum Heads
- Hydraulic RollerCam
- Forged Crank
- Forged Pistons
BLOCK:
- NEWBluePrint Cast Iron Block
- Manufactured andMachined in the USA!
- 4-Bolt Main
- 4.125"
- 1-Piece Rear Main Seal
- Mech fuel pump provision: Yes
- Passenger Side Dipstick Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
- New BluePrint Forged Crankshaft
- 3.750" Stroke
- OEM type 5.700"connecting rods w/ 150,000 psibolts
- Forged Pistons
- Internal Front/ External Rear
CYLINDER HEADS:
- BluePrint Aluminum Cylinder Heads - HP8103
- 64cc chamber
- 2.08" intake/1.60" exhaust valves
- 220cc intake/67cc exhaust runners
CAM SPECS:
- CamType: Roller
- .555 Intake .576 Exhaust
- 236 Intake / 242 Exhaust duration
- @.050 - 110° lobe separation
IGNITION TIMING:
- 10-16° inital and total timing 32-34° at 3500 RPM
ALSO INCLUDES:
- Intake Manifold dual plane, satin aluminum
- 850cfm Carburetor
- Valve covers, oil pan and timing cover
- Brass freeze plugs
- Dyno test results shipped with engine
NOTES:
- NEW BluePrint block manufactured and machined in the USA!
- Not for EGR
- Comp Cams Engine Break-In Oil 15W-50, 1 Quart (946ml) Part No. CO1591
