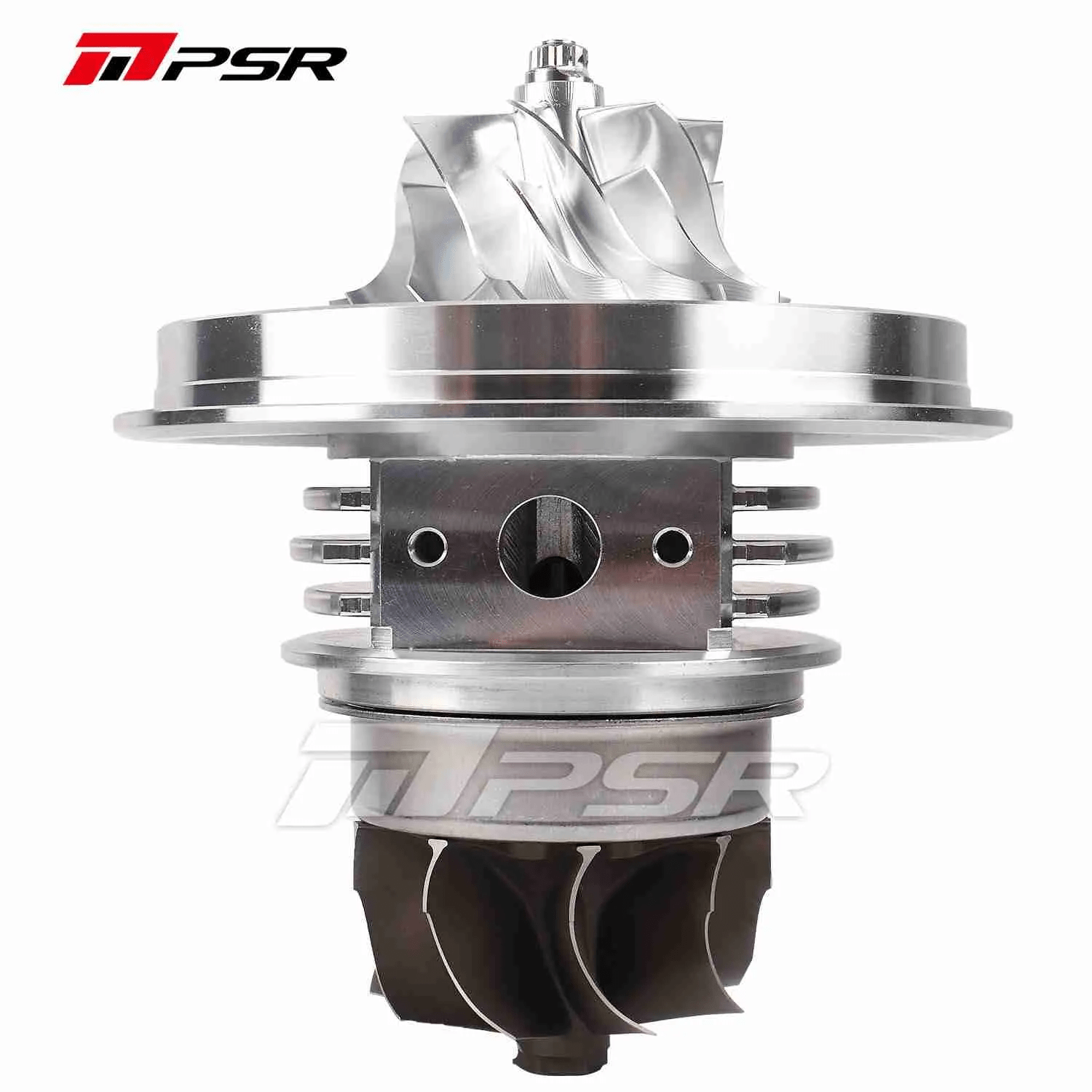

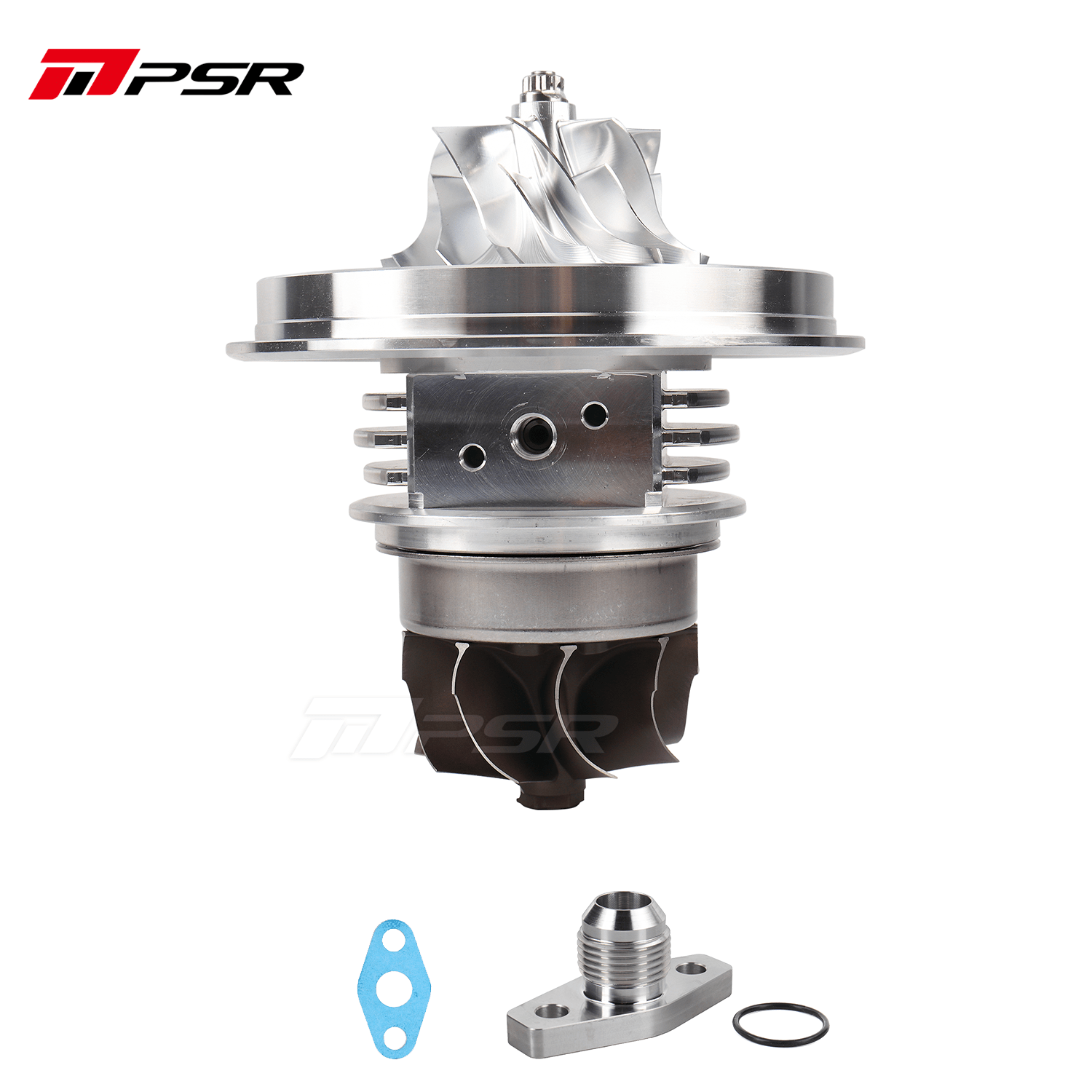

480DG CHRA
Roll over image to zoom in Click on image to zoom
480DG CHRA480DPSR 480DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEELPSR 480DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEELPSR 480DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEELPSR 480DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEELPSR 480DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEELPSR 480DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEELPSR 480DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEELPSR 480DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEELPSR 480DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEELPSR 480DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEEL

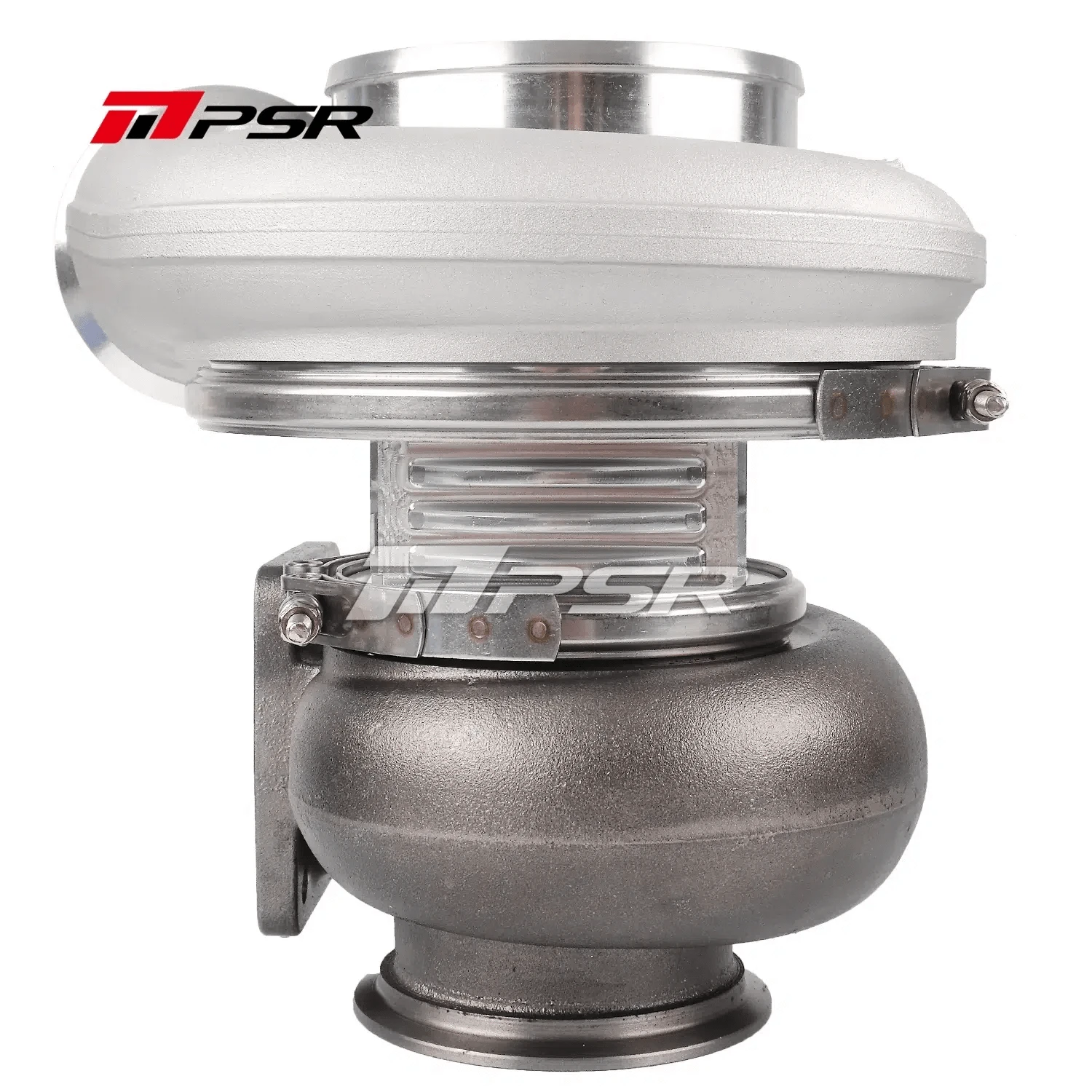

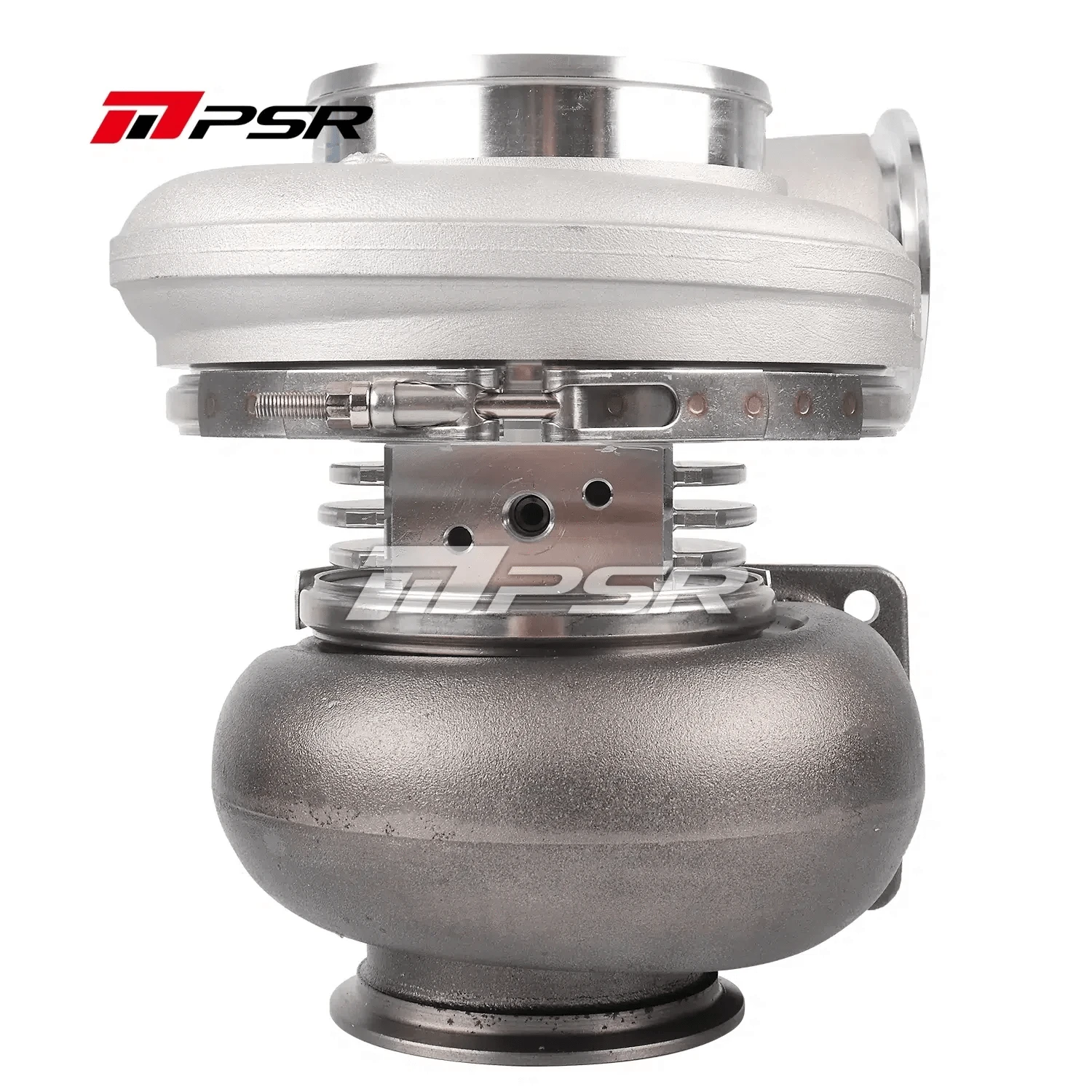

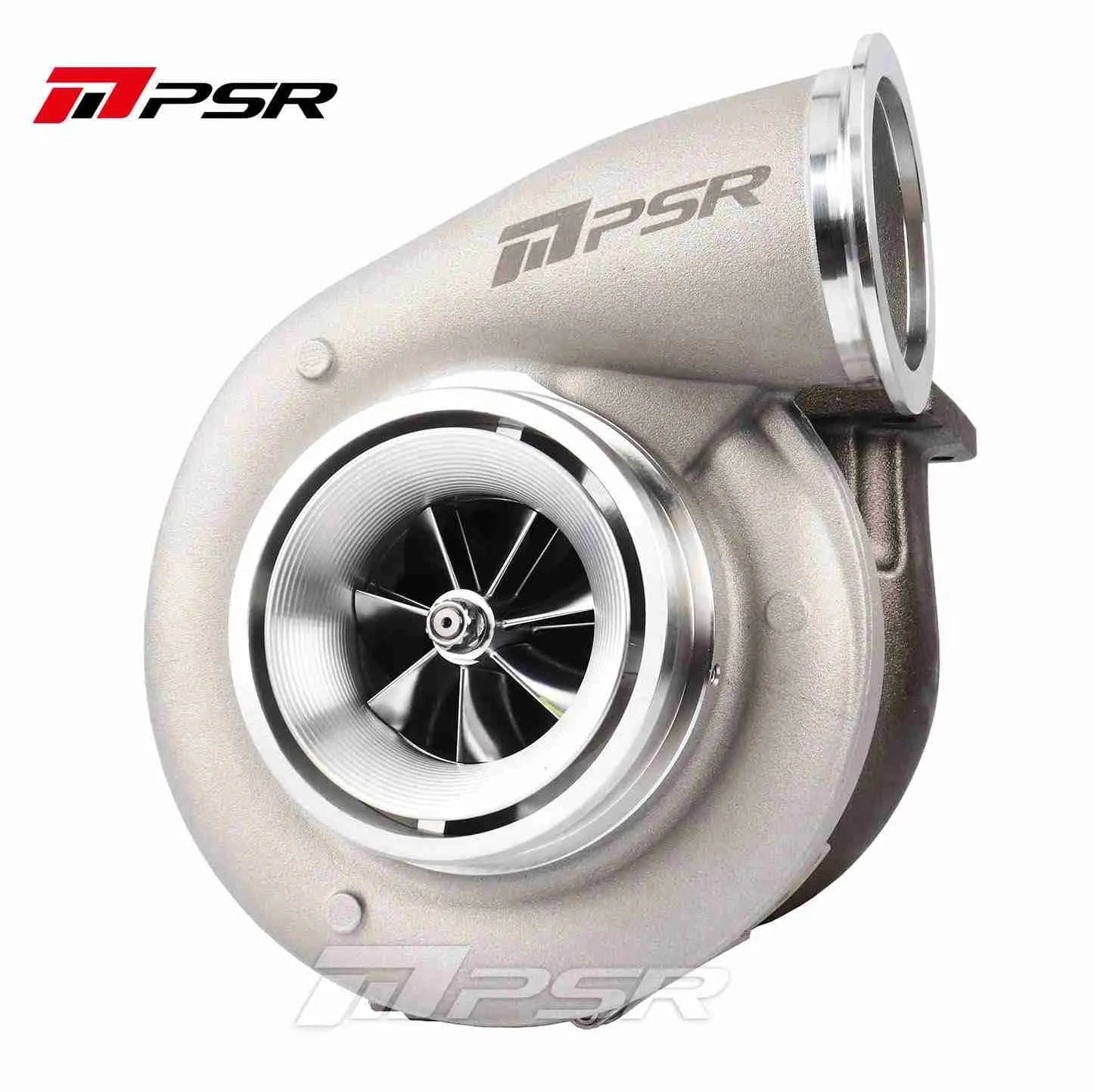

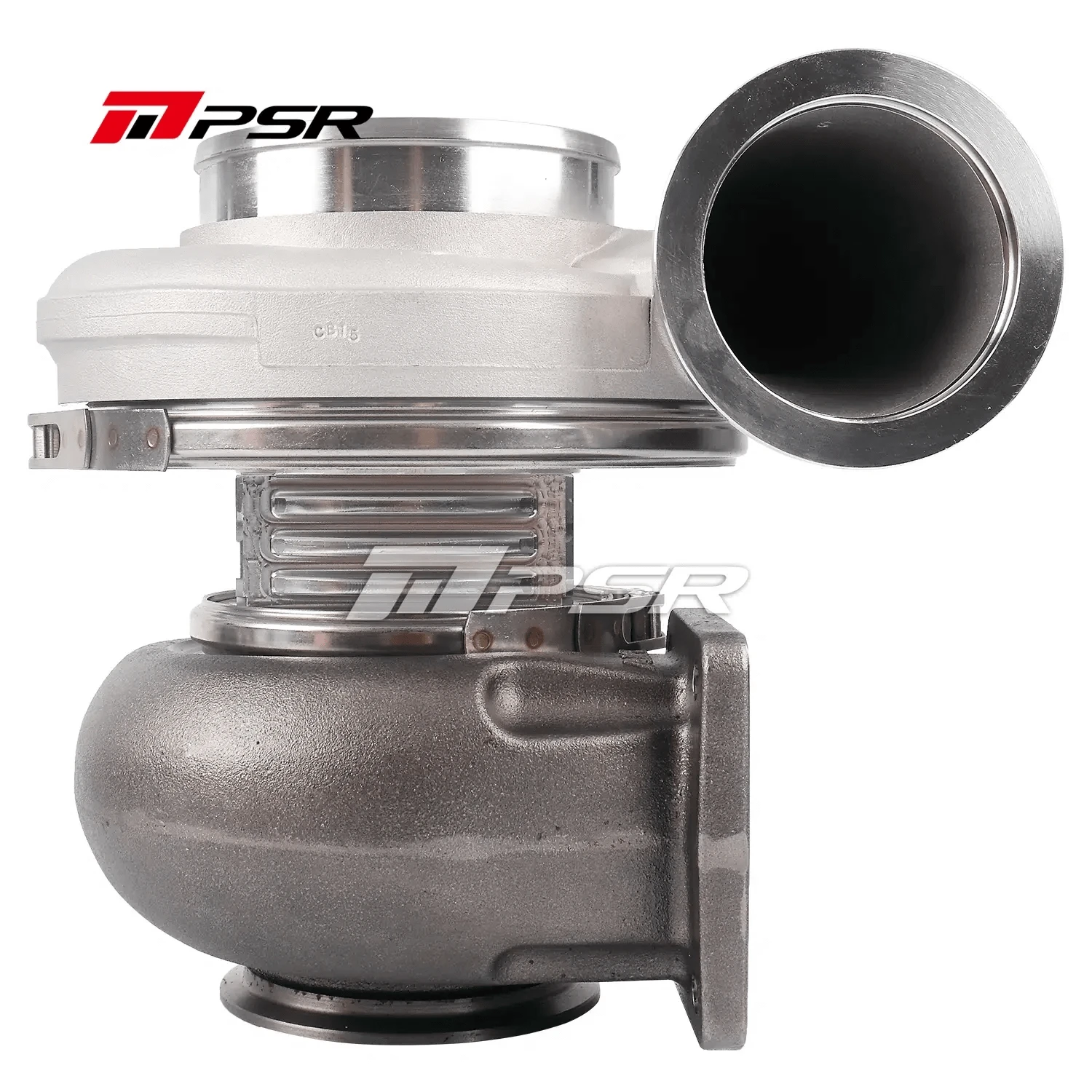

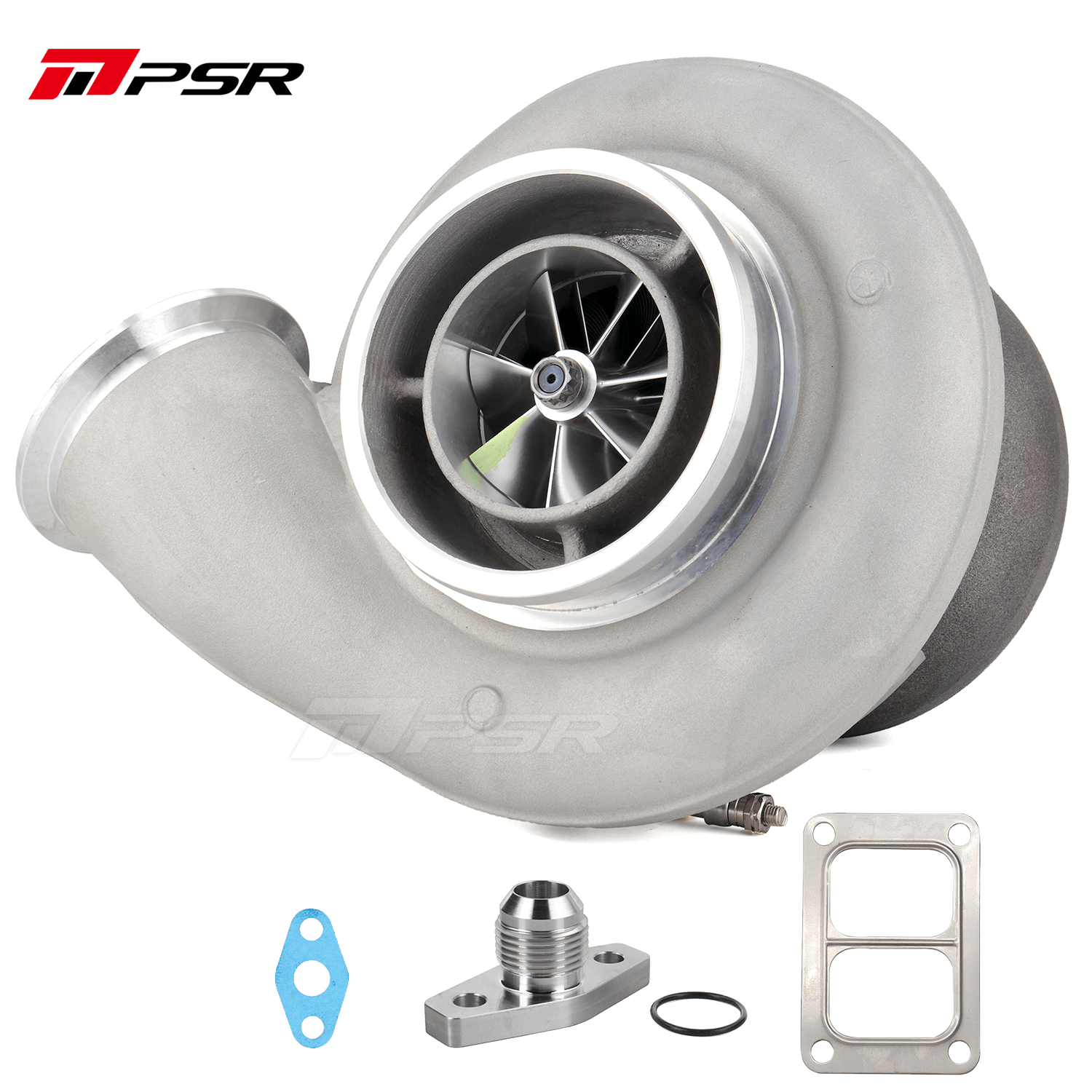

PSR 480DG DUAL BALL BEARING TURBO BILLET COMPRESSOR WHEEL

Pulsar TurbochargersSKU: Pulsar 690
Compressor Housing Options: Without Compressor Cover

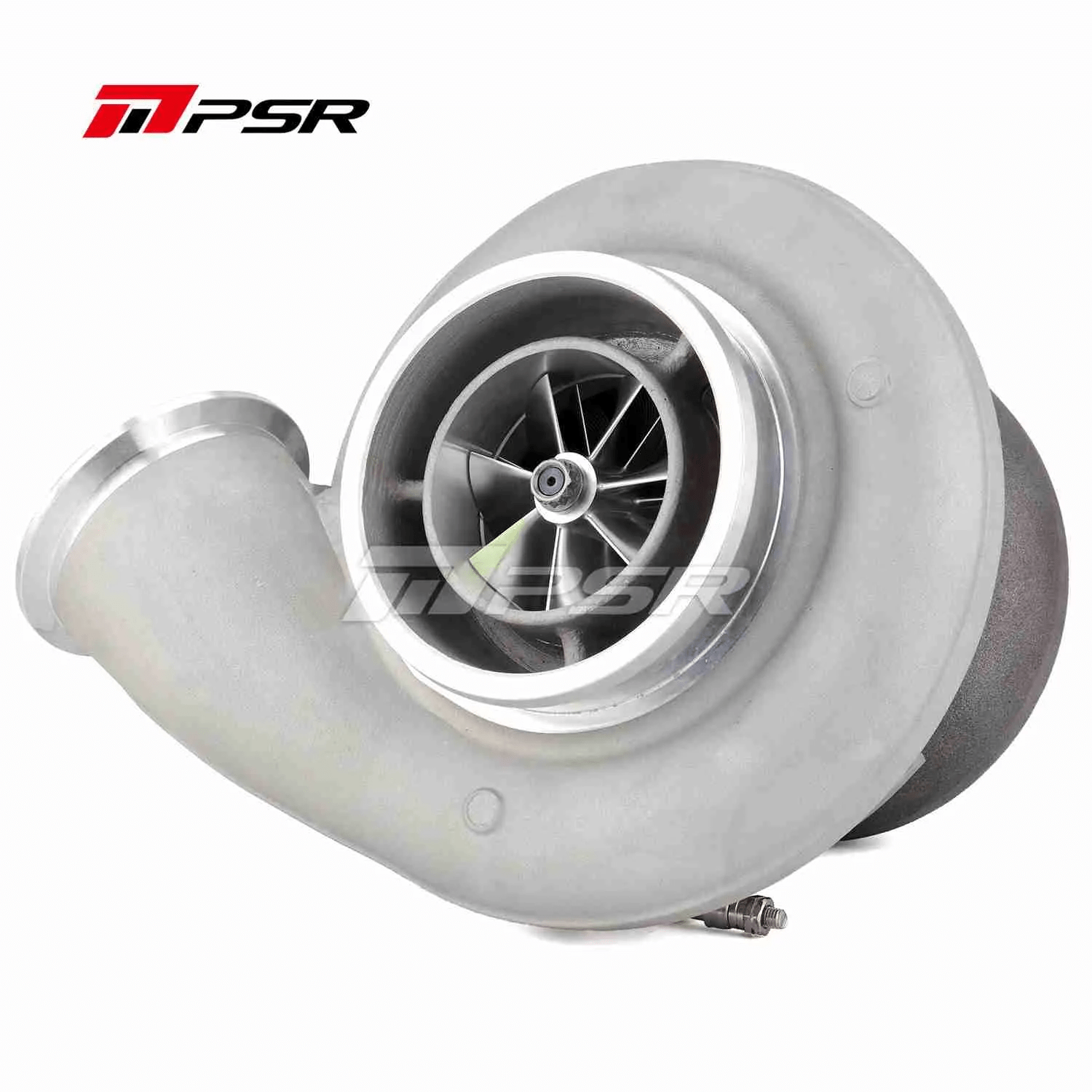

Turbine Housing Options: Without Turbine Housing
Price:
$1,730.15 NZD

Tax included Shipping calculated at checkout

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Description

Recommending Engine Displacement: 3.0-8.0L

HP Rating 750-1250

Features:?

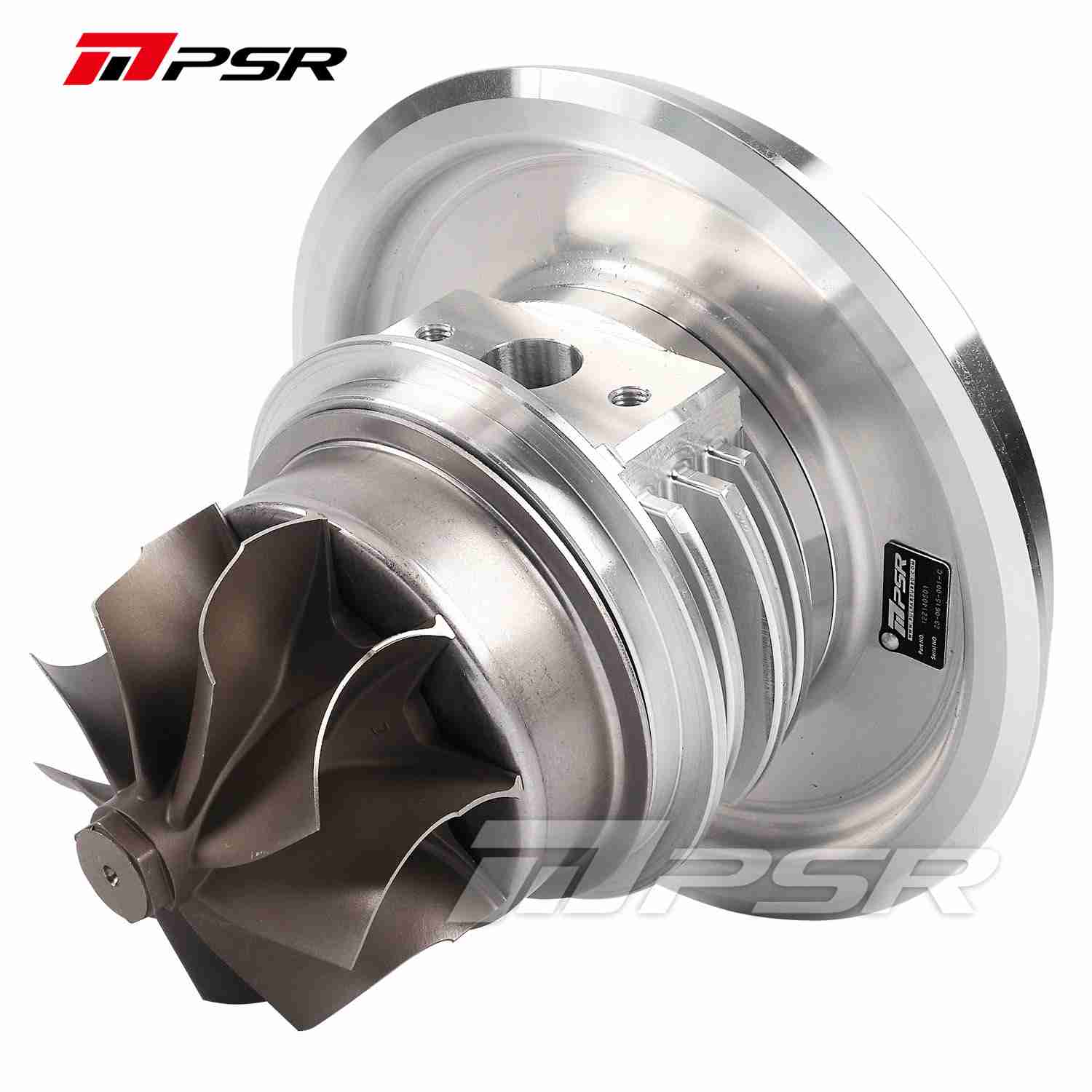

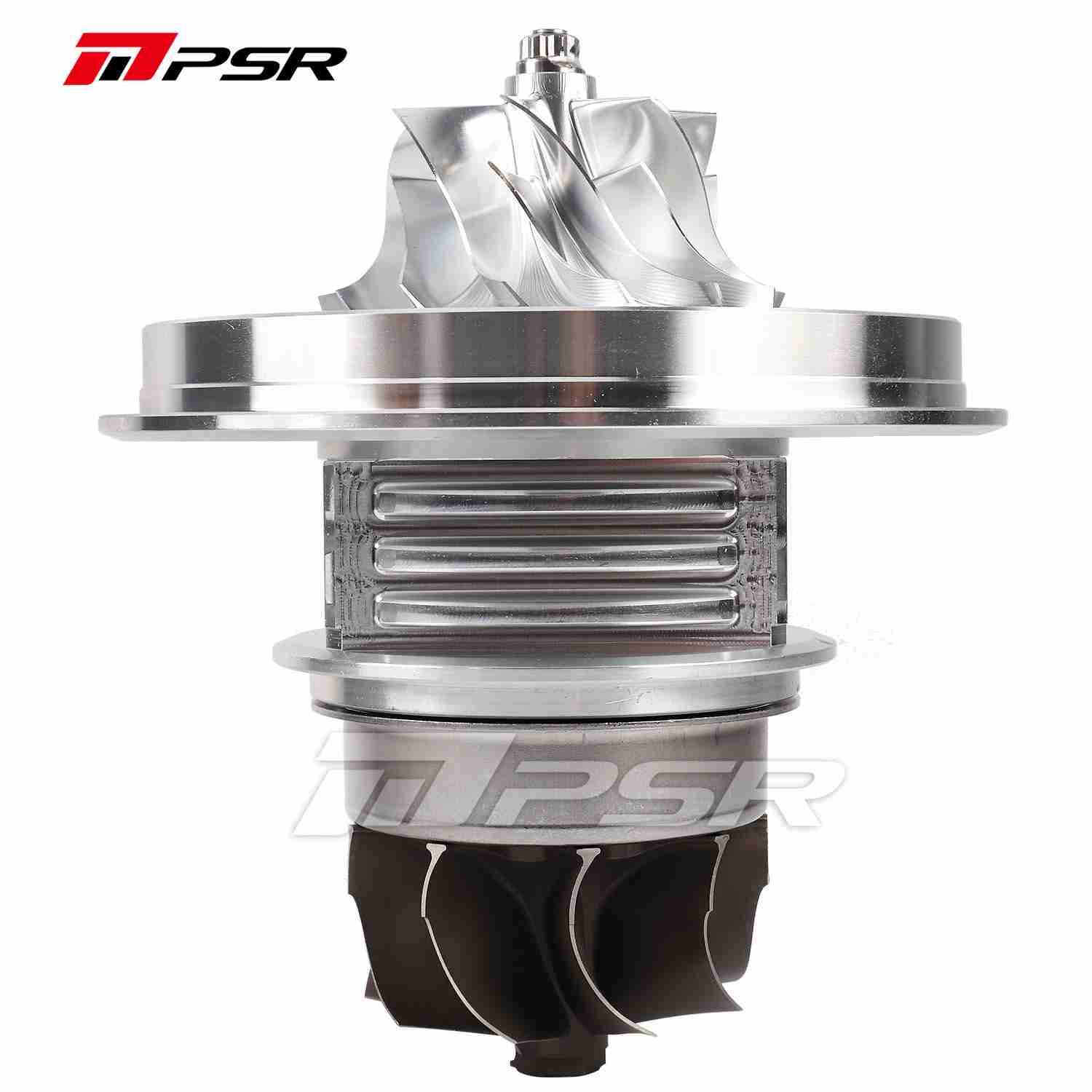

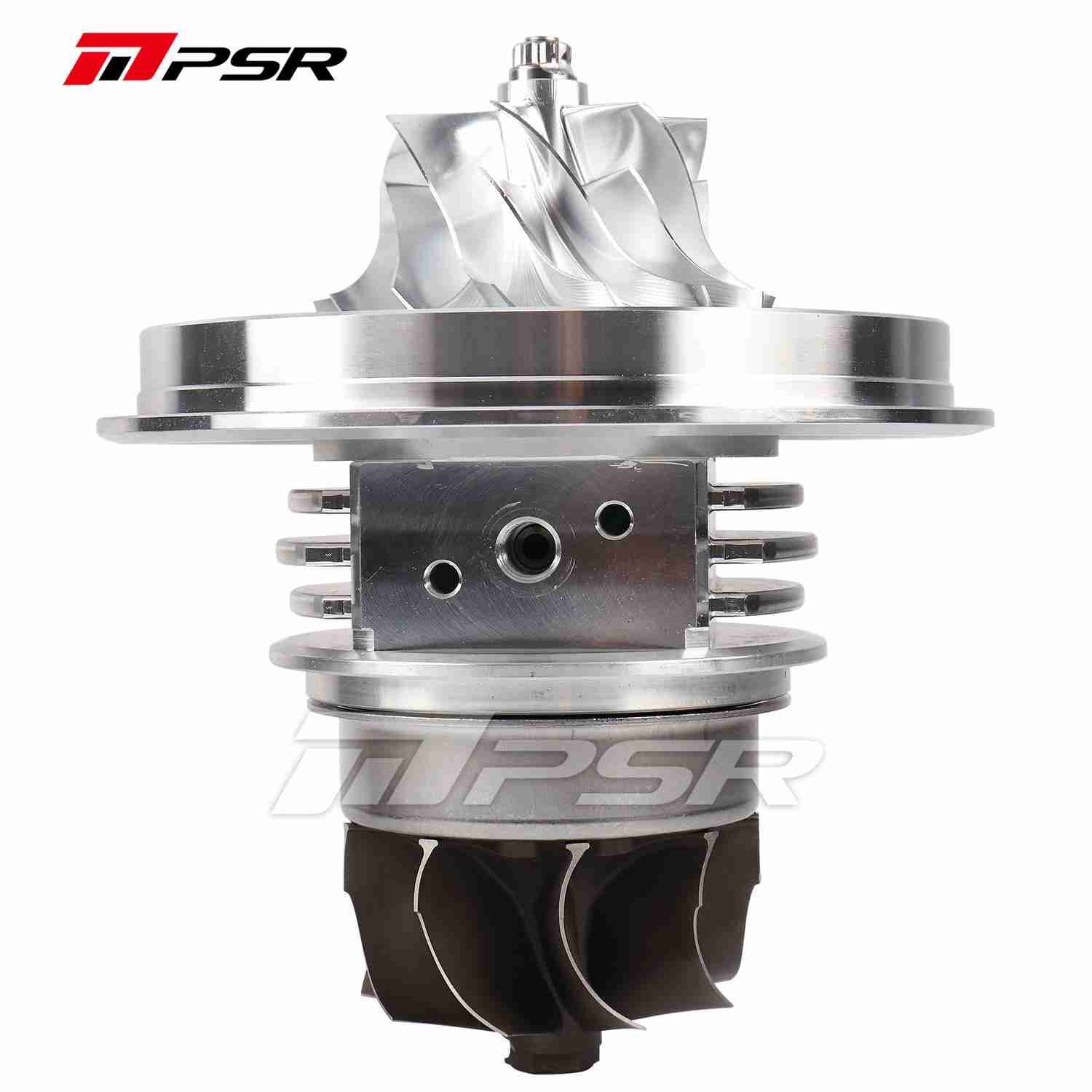

  • CNC Machined Aluminum Bearing Housing with The FIN COOLING DESIGN

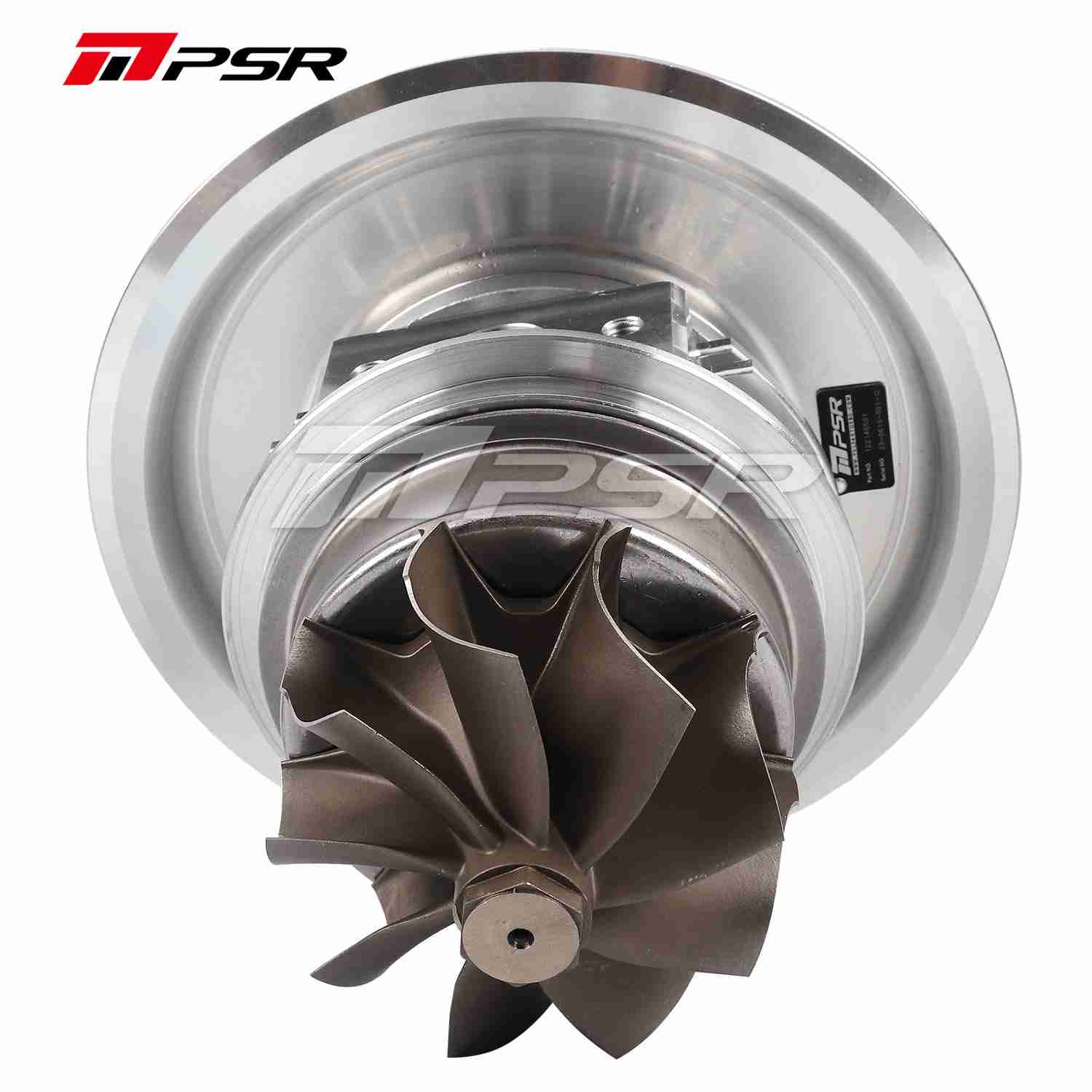

  • G series design 9 Blade Inconel 713 turbine wheel for improved gas flow ability and reduced turbo lag
  • Dual Ceramic Ball Bearing Systems

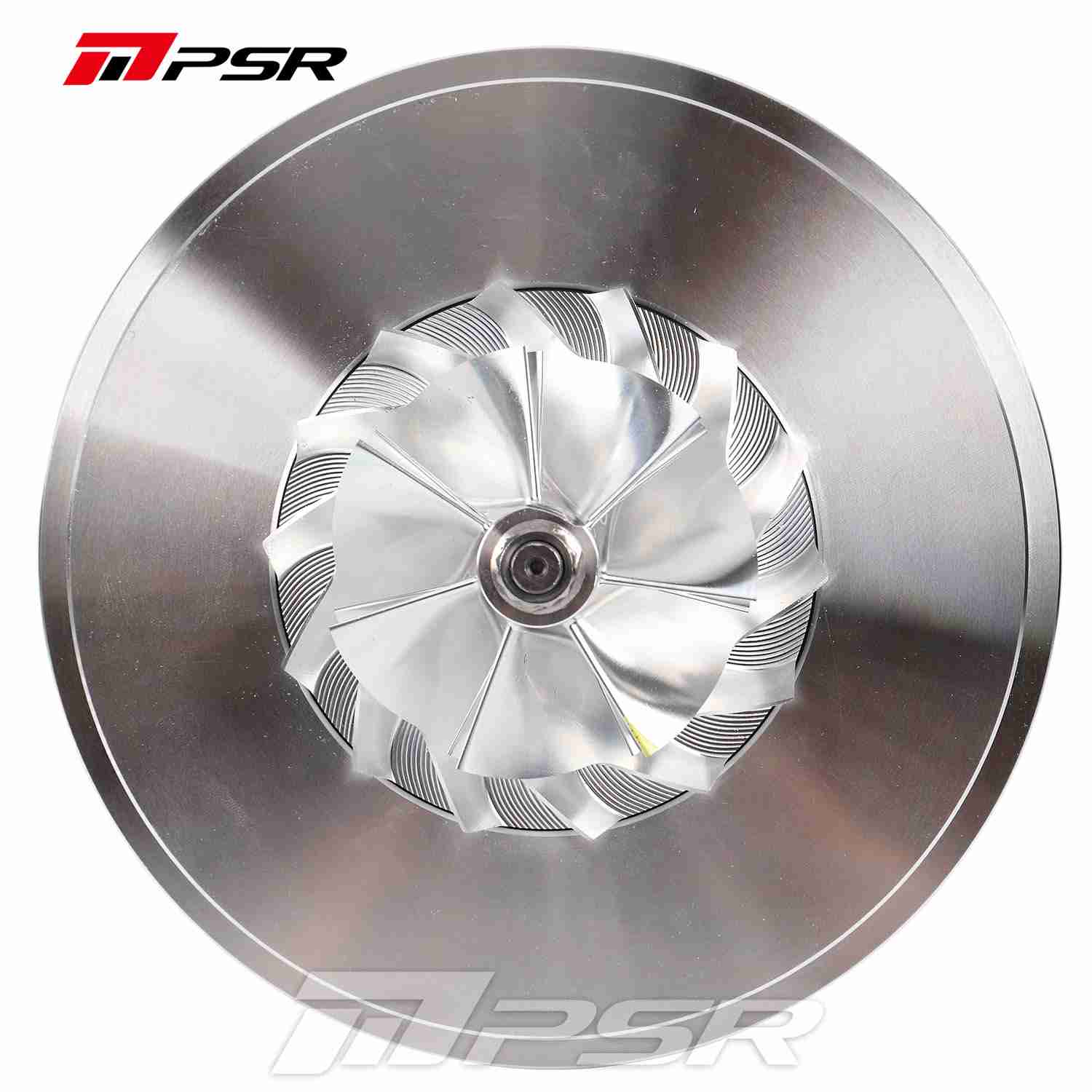

  • Billet Compressor Wheels with Extended Tip Technology

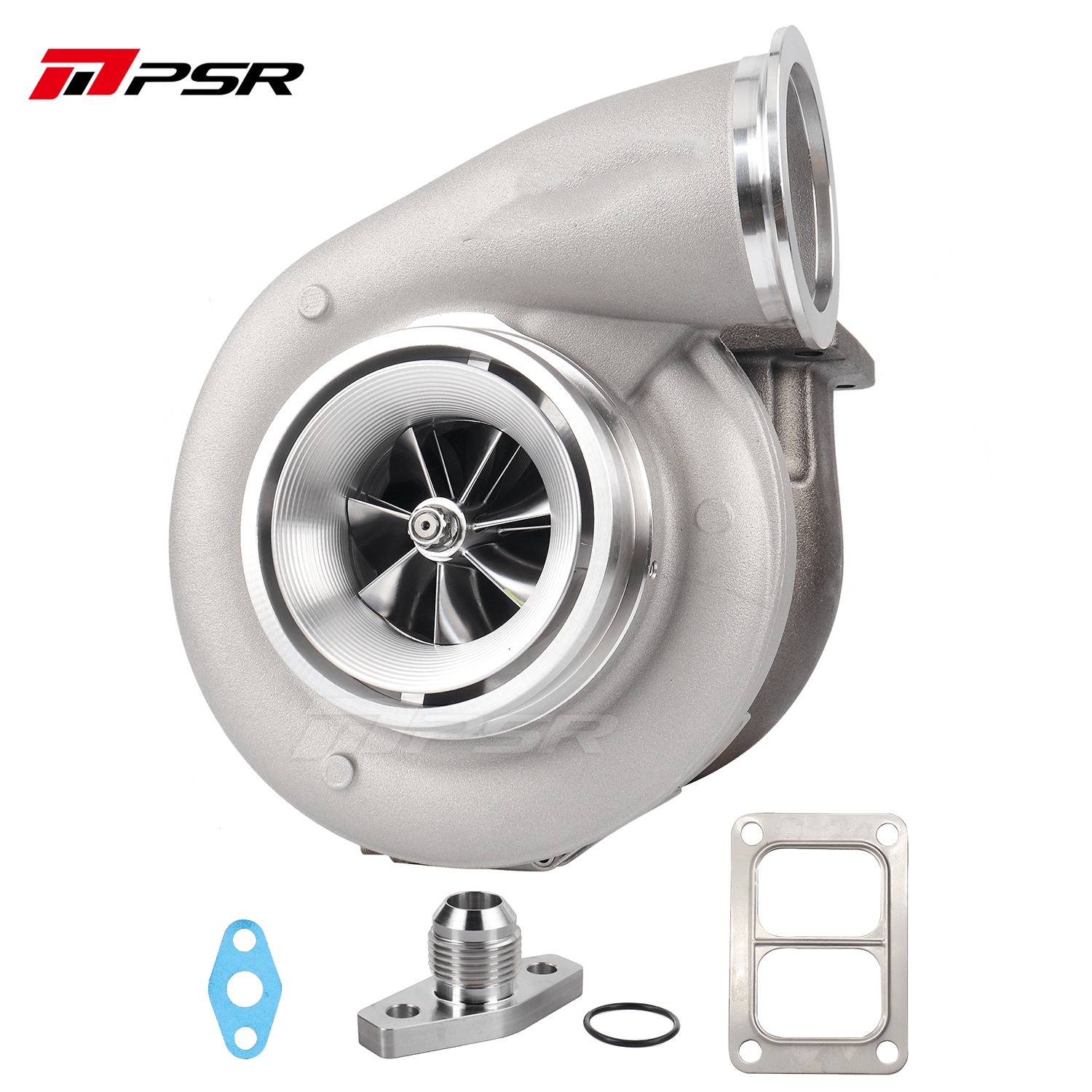

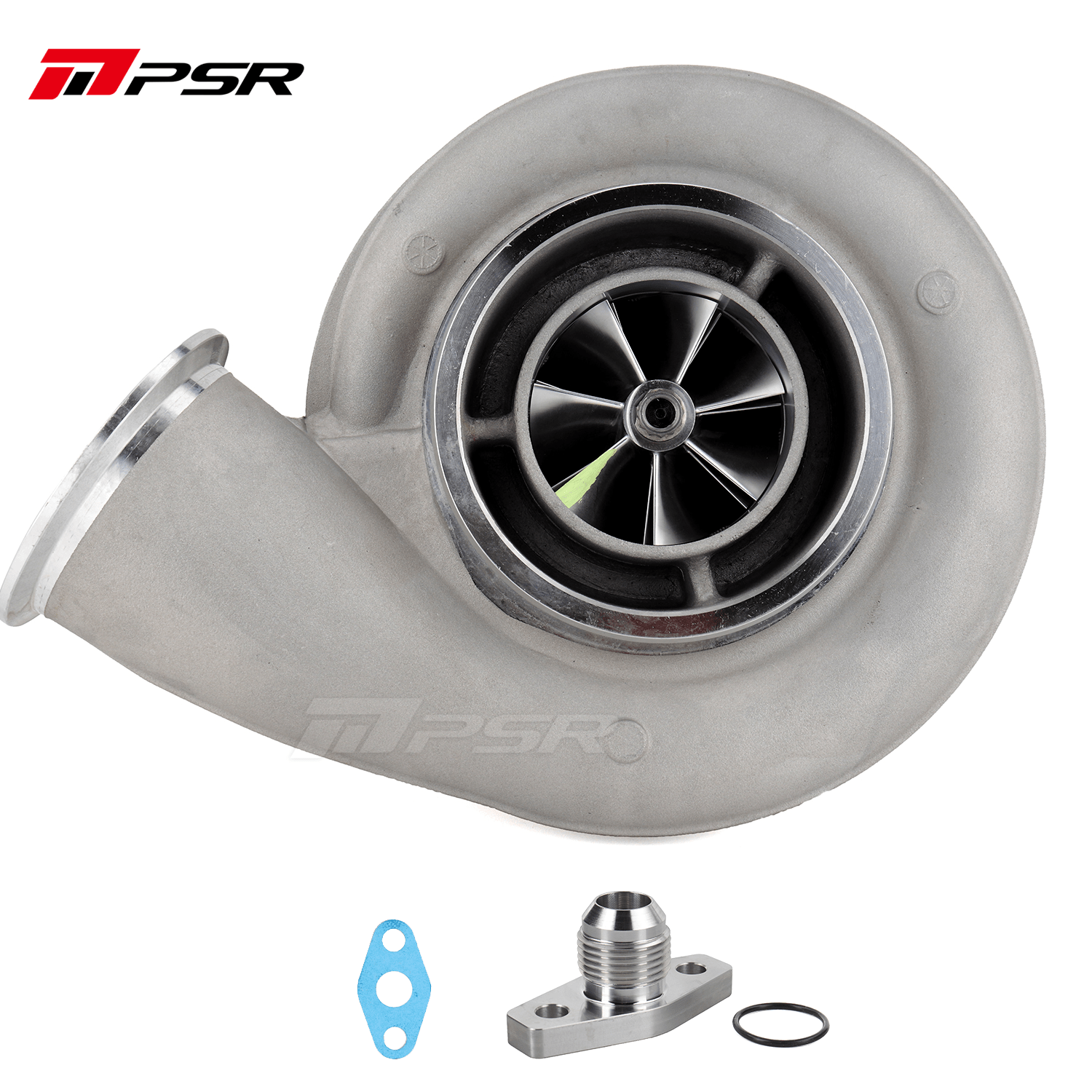

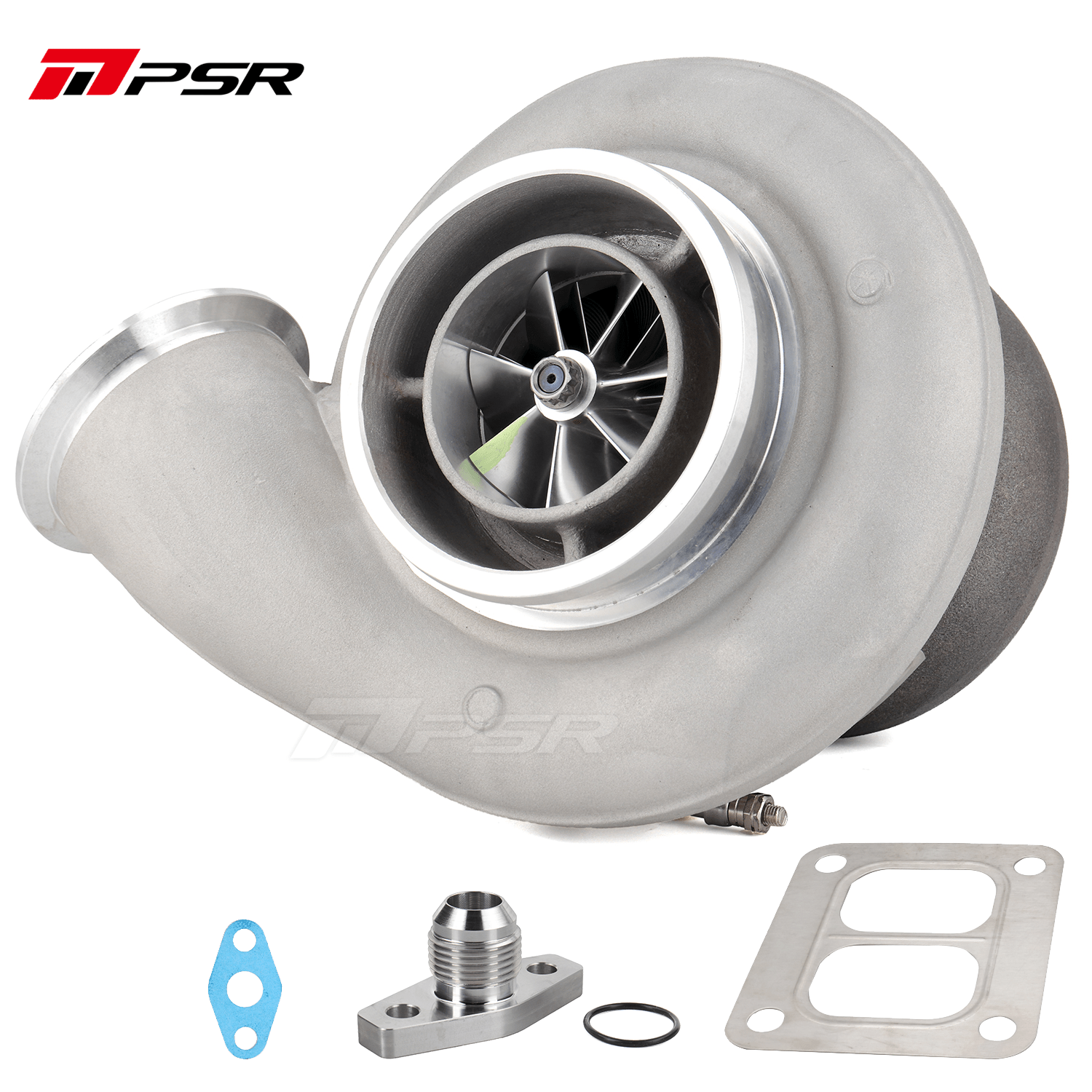

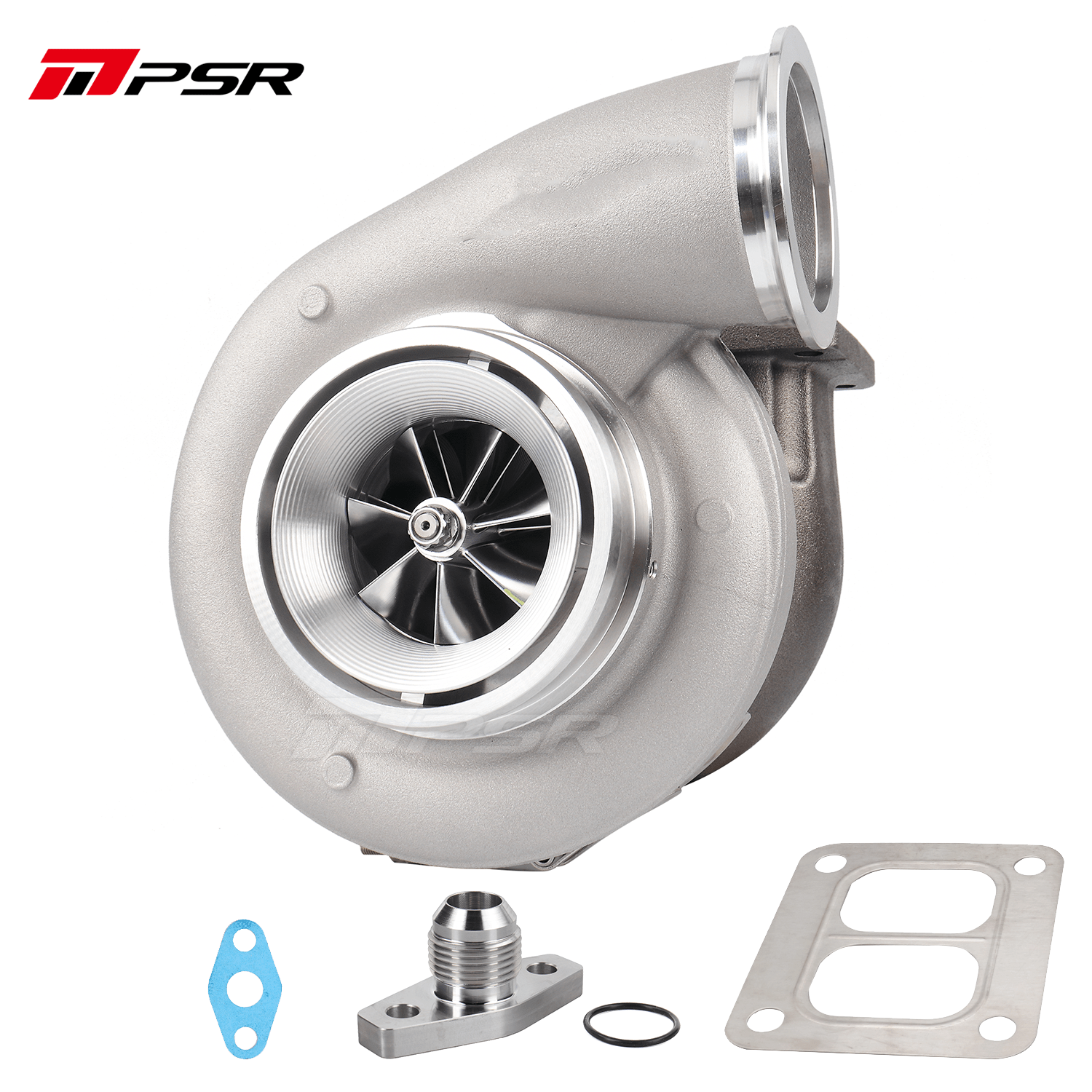

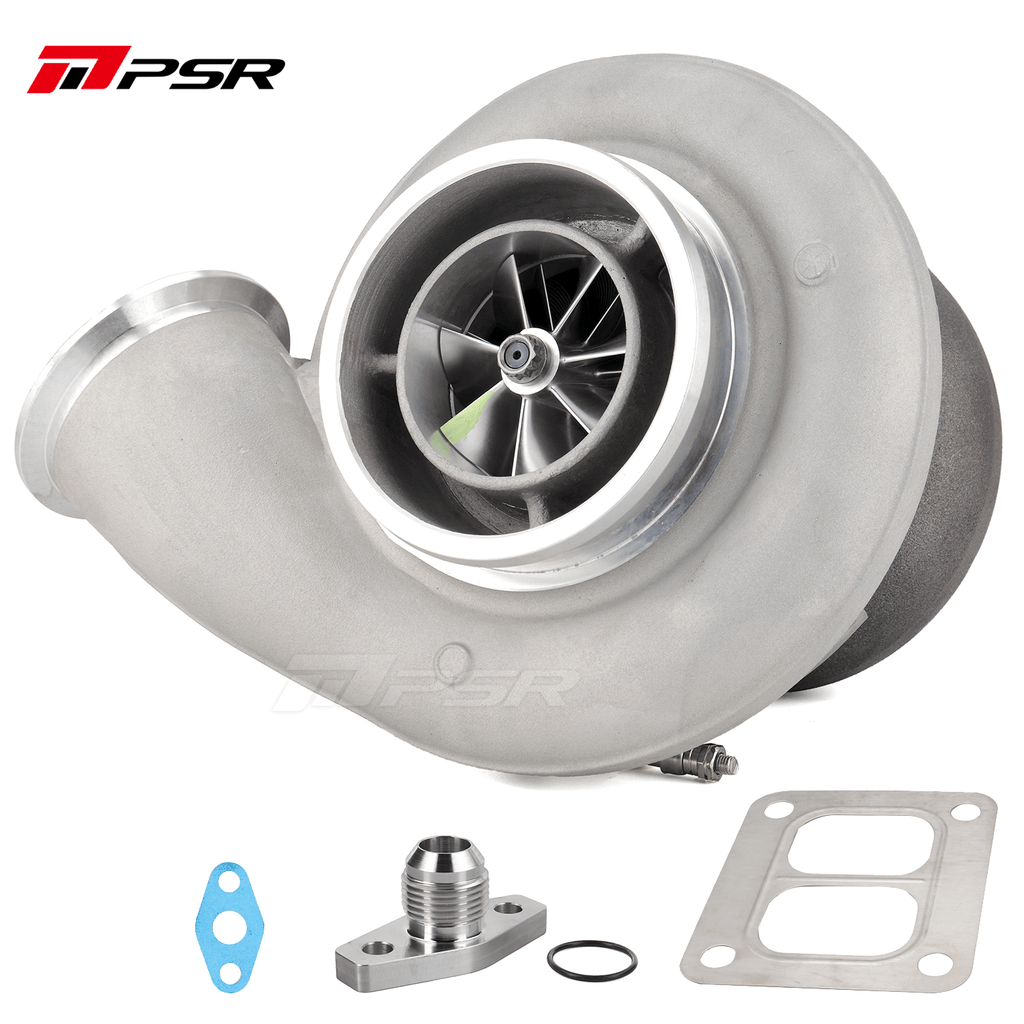

  • -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box

Details:

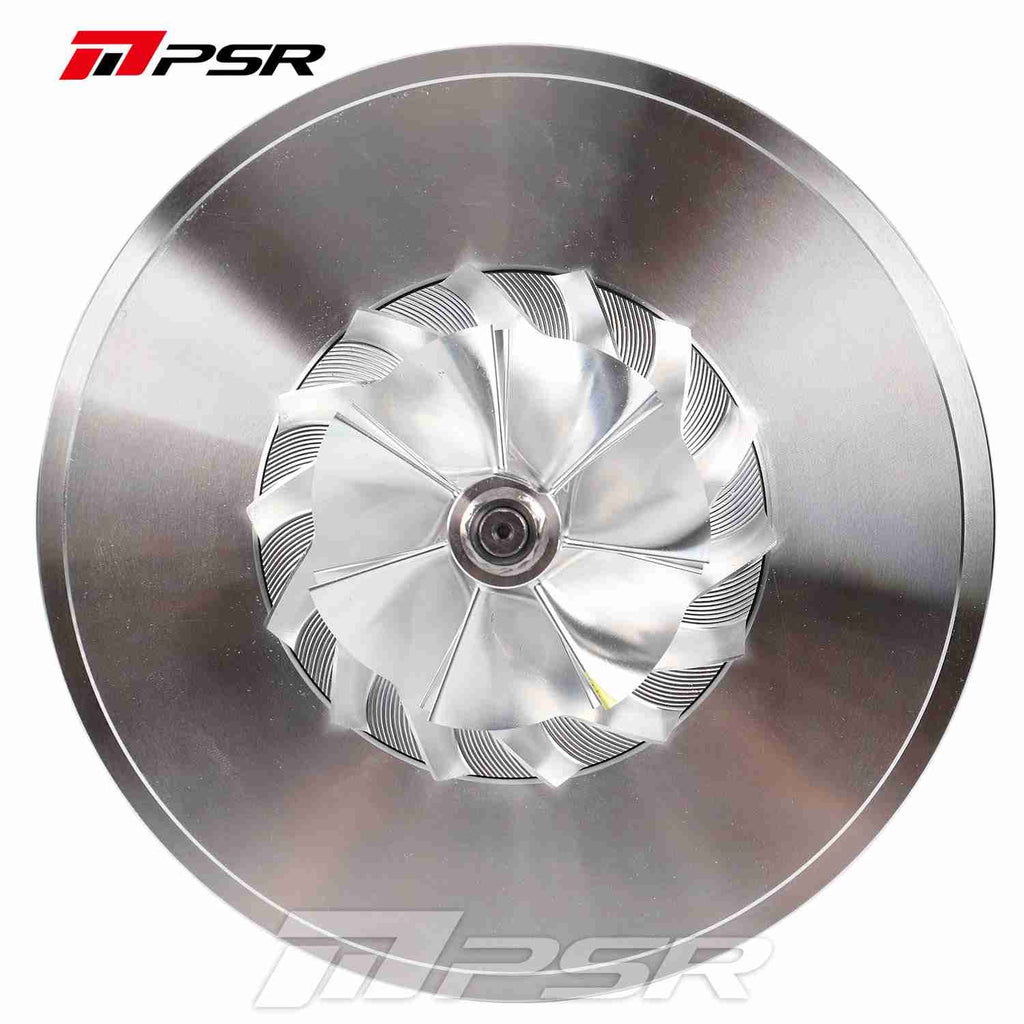

  • Compressor Wheel: 80*113mm 7+7 Blade
  • Compressor Inlet: 5†Slip-Fit
  • Compressor Outlet: V-band
  • Turbine Wheel: 96*88mm 9 Blade
  • Turbine Housing A/R: 1.15, 1.25, 1.32, 1.45, and 1.58 in Option

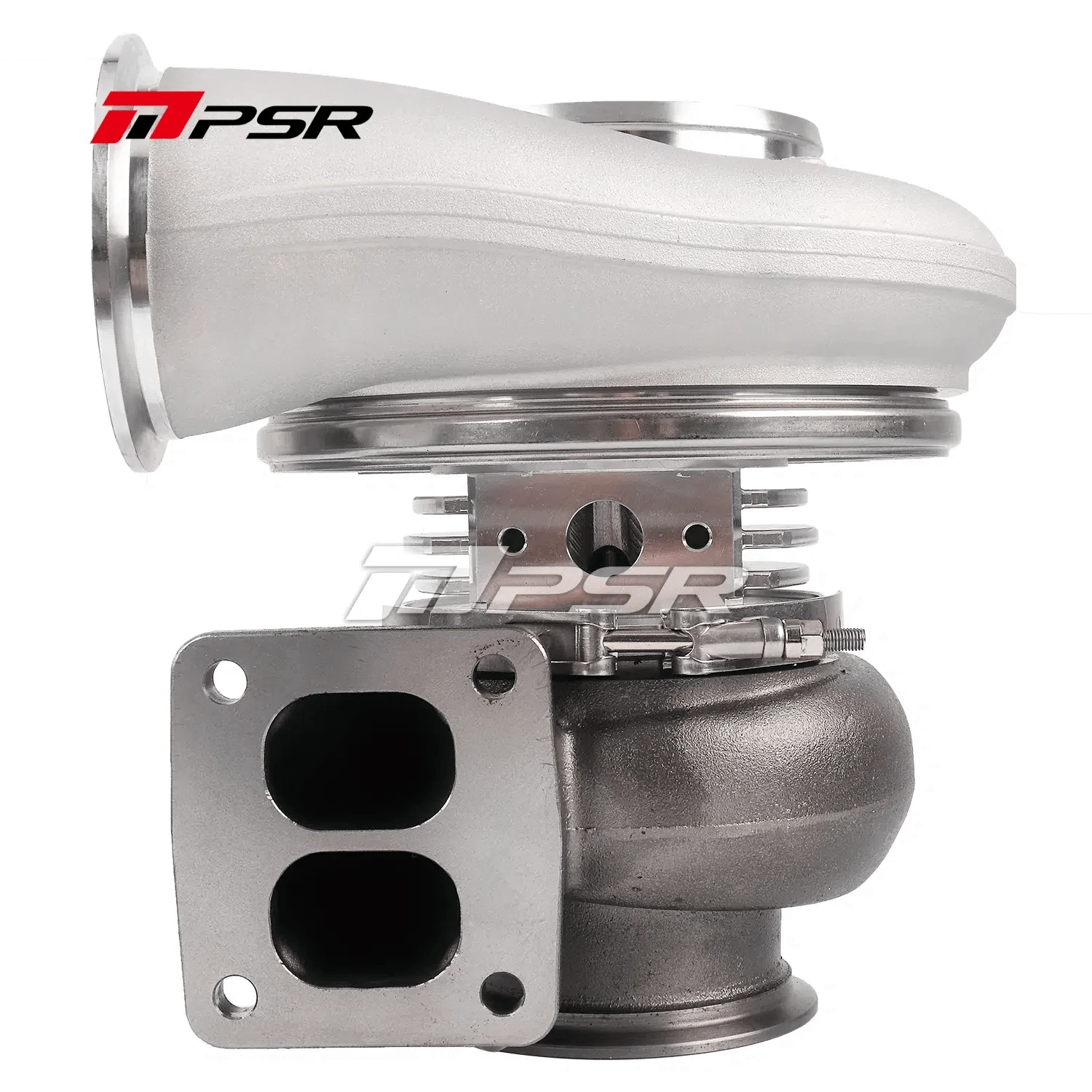

  • Turbine Housing Inlet & Outlet: T4 Divided Inlet, V-band Outlet; T6 Divided Inlet, 3/4 Marmon Outlet
  • Oil Feed Port 1/4NPT
  • Oil Drain Std T6 drain Flange

*? V-band Flange Kits are available:
