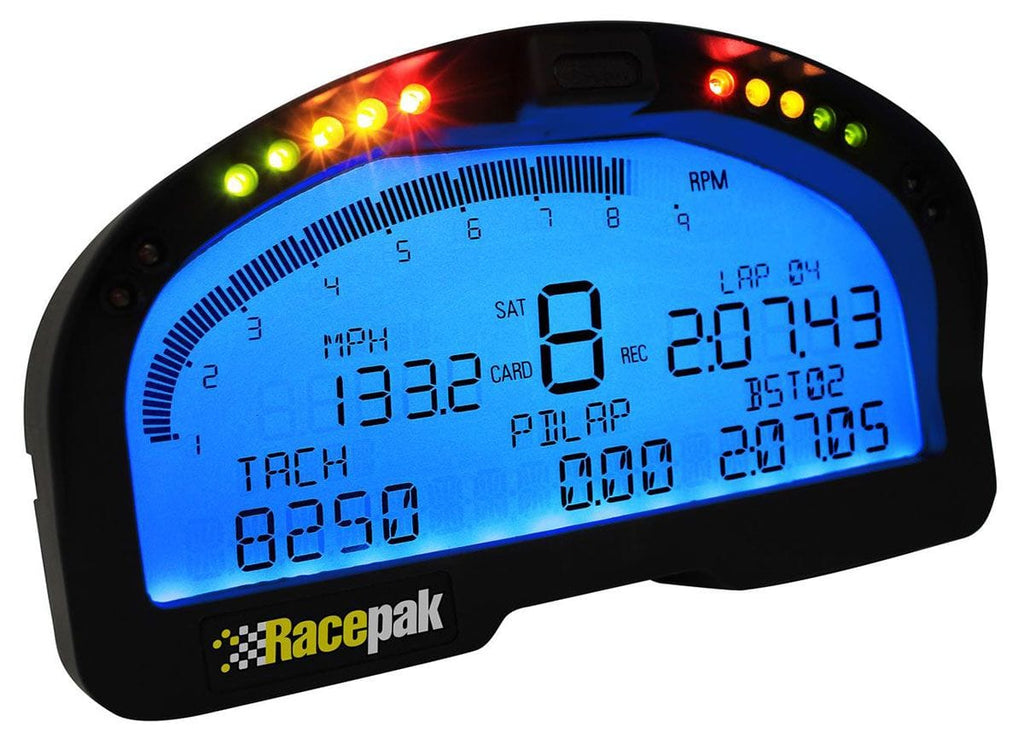

IQ3 Street Dash Display(Not Data Logger)Brand: RACEPAKPart Number: R250-DS-IQ3SDescription: The IQ3s is a complete dashcluster replacement, providingall standard road functions ina compact, simple to use unit.Standard data, such as speed, odometer, turn signals, hi/lowbeam and parking brake indicators are displayed, along with programmable shift and warning lights. It is an ideal complete instrumentationpackage for vehicles with modern engine swaps or aftermarket EFI systems.
WHAT'S IN THE BOX:
- IQ3s Dash
- Wiring harness (includes 2 programming buttons)
- 1 - Oil Pressure Sensor
- 2 - Fluid Temperature Sensors (Coolant & Transmission)
- USB programming cable
- Racepak DatalinkII software
Specifications
- Display standard road functions
- User definedshift light output
- Display up to 28 inputs via 4 page
- Shielded, low luster display for sunlight viewing
- Blue dimmable backlight
- Metric and English capable
- Gear Indicator
- CAN-based and OBD2 compatible (adapter cables available)
- Fouruser defined alarms
- Connect to any Racepak V-Net data logger
- User defined 5 character sensor input names
- Optional GPS module for speed
