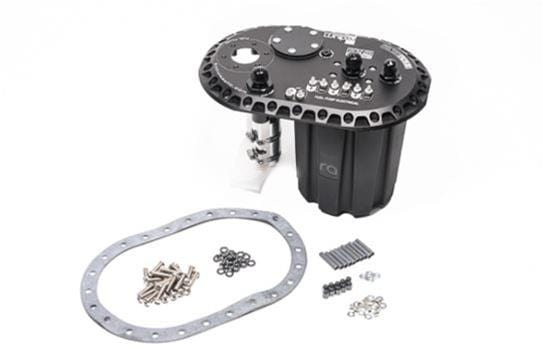

Radium Engineering Fuel Cell Surge Tanks 20-0992-00

Name: Radium Engineering Fuel Cell Surge Tanks 20-0992-00
Brand: Radium Engineering
SKU: Radium 20-0992-00
Price: 1610.71 NZD
Availability: InStock

Radium EngineeringSKU: Radium 20-0992-00 Manufacturer's SKU: 20-0992-00

Special Order

Estimated Shipping Time is 5-15 working days

📦 SPECIAL ORDER ITEM

This is a special order item. When you complete your order, we will order it from the supplier.

📦 Returns & Refunds Policy

Special Order Items Are not entilted to returns or refunds for change of mind, incorrect orders, or fitment issues.

Refunds or replacements are only available for faulty or damaged products. Claims must be made within 7 days of receiving your order, with proof of the fault.

Price:

$1,610.71 NZD

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Radium Engineering offers fuel cell surge tanks in a variety of configurationsÃ¢â‚¬â€with (or without) one, two, or three fuel pumps included. The fuel cell surge tank is a drop-in fuel pump system for Radium Engineering's popular fuel cells or any cell that uses the industry standard 6x10 24-bolt fill plate bolt pattern. The tank is designed to protect EFI vehicles that experience fuel starvation. It is NOT a glorified trap door box with baffles. It features a true dual-chamber fuel tank utilizing a single lift pump and up to three surge tank pumps all packaged inside the fuel cell. This provides all the benefits of a traditional external fuel surge tank without safety concerns and plumbing complexity.

Additional features include:

* Merged single 10 AN ORB female threaded outlet. All pumps use check valves that prevent back-flow for multi-pump applications
* One-way fill valve located on the bottom of the canister that allows fuel in, but not out, keeping the surge tank full
* Multiple fuel pump options, including gerotor, turbine, and brushless DC motor pumps
* Hermetically sealed high-current stainless steel electrical studs capable of handling all pumps
* Simplified servicing features, eliminating nylon sealing washers and fuel cell retaining brackets
* Full CNC aluminum construction with anodized surfacing for superior corrosion resistance
* Fuel compatibility: leaded and unleaded gasoline, methanol, ethanol, E85, etc.
* Dynamic safety vent valve with rollover protection and fuel fill shut-off

Brand: Radium Engineering
Manufacturer's Part Number: 20-0992-00
Part Type: Surge Tanks
Product Line: Radium Engineering Fuel Cell Surge Tanks
Stealth Ride Part Number: RDM-20-0992-00
Fuel Pump Included: No
Capacity: 2 liters
Inlet Quantity: 1
Outlet Attachment: Female O-ring
Fuel Pump Outlet Size: -10 AN O-ring
Outlet Quantity: 1
Sending Unit Included: No
Gasket Included: Yes
Fuel Pressure Regulator Included: No
Mounting Bracket Included: No
Mounting Hardware Included: Yes
Wiring Harness Included: No
Length (in.): 10.000 in.
Width (in.): 6.000 in.
Quantity: Sold individually.
