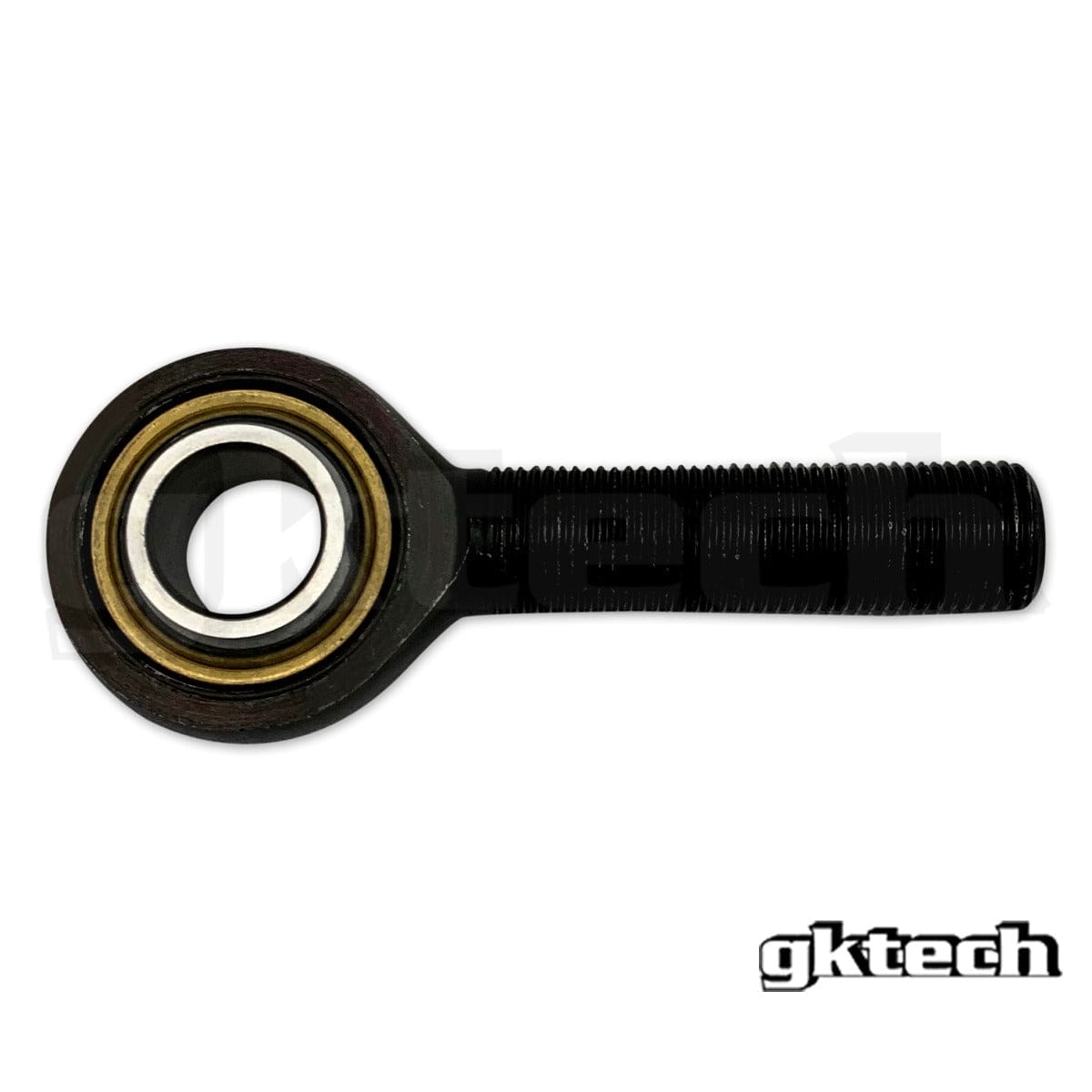

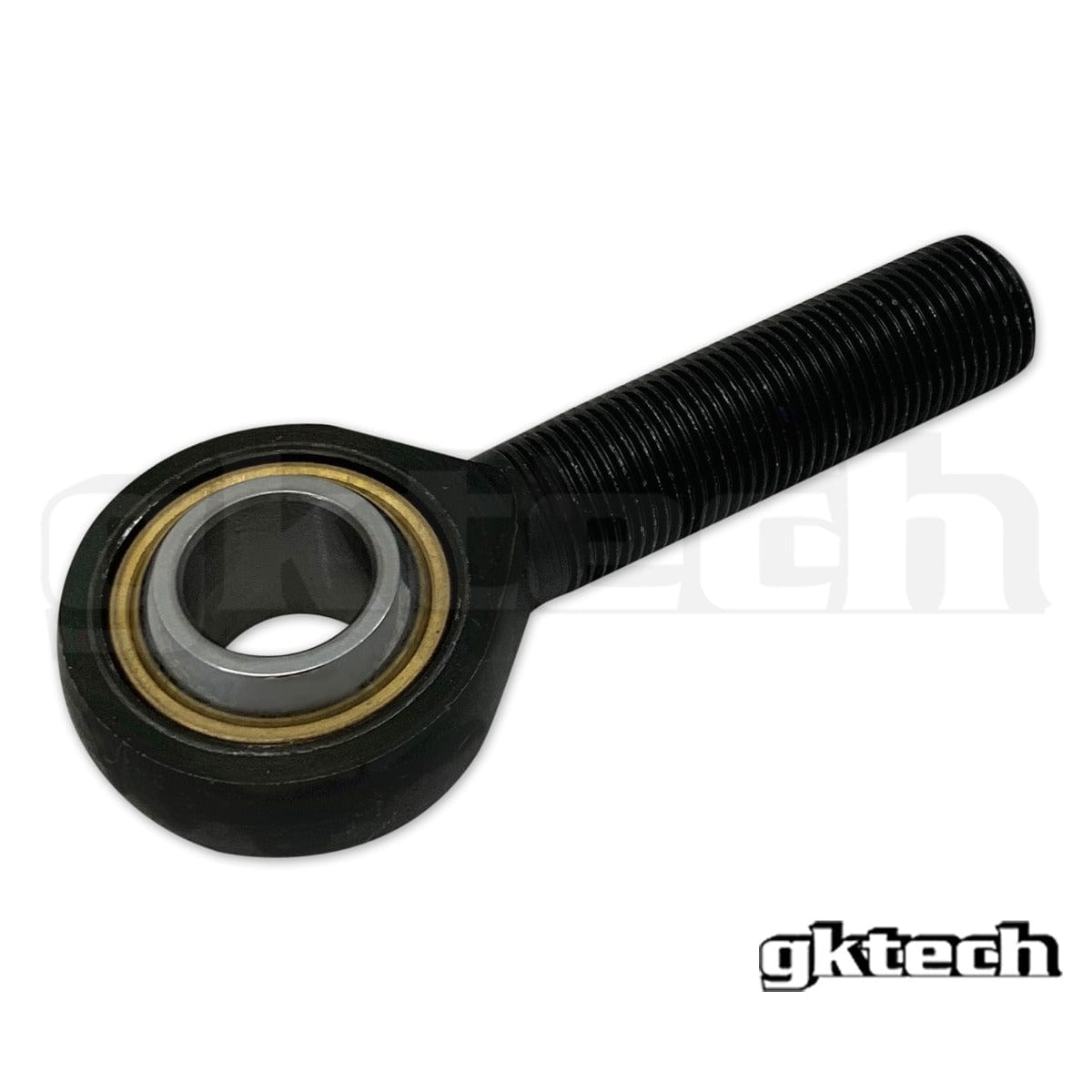

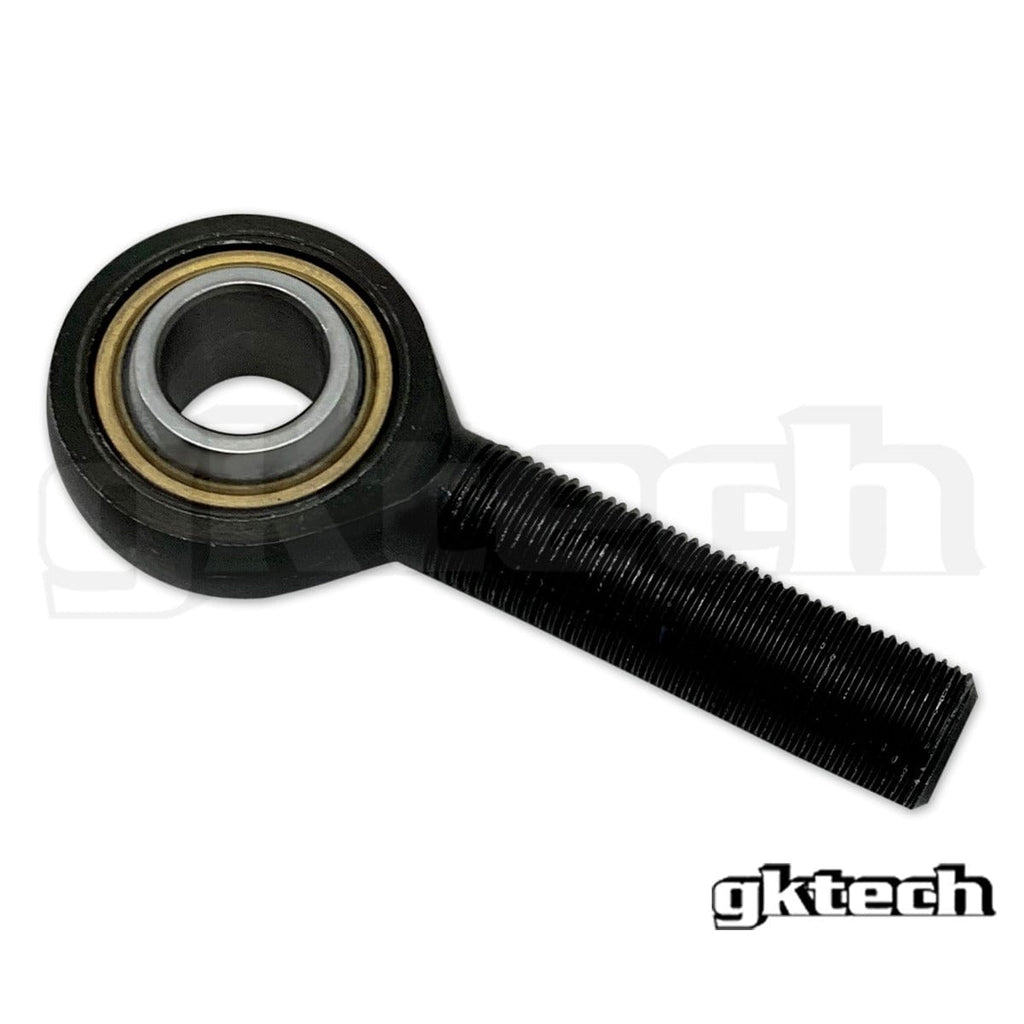

GKTech Replacement bearing (PCMR12TES)
Suits Toyota / Subaru 86 ZN6, BRZ ZC6, GR86 ZN8, BRZ ZD8
Brand: GKTech
Part Number: PCMR12TES
Description:
GKTech Replacement bearing, part number PCMR12TES. Suits Toyota 86 ZN6, Subaru BRZ ZC6, Toyota GR86 ZN8, Subaru BRZ ZD8. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
Replacement PCMR12TES bearing
Used in the following GKTECH products:
GT86 Toe arms - GT86-TOEX
F8X M2/M3/M4, G8X M3/M4 Adjustable Toe arms (pair) (SKU = FG8X-RTLX)
JZX Rear Toe Arms (SKU = JZXX-TOEX)
IS200/IS300 Rear Toe Arms (SKU = XE10-TOEX)
PCMR12TES
| IMPERIAL |
METRIC |
| ROD END BALL BORE SIZE |
ROD END BALL BORE SIZE |
| 0.7500 in |
19.0500 mm |
| ROD END BALL WIDTH |
ROD END BALL WIDTH |
| 0.8750 in |
22.2250 mm |
| THREAD LENGTH |
THREAD LENGTH |
| 1.7500 in |
64.4500 mm |
| THREAD SIZE |
THREAD SIZE |
| 3/4 - 16 UNF RH |
3/4 - 16 UNF RH |
| ROD END HEAD DIAMETER |
ROD END HEAD DIAMETER |
| 1.8700 in |
47.4980 mm |
| ROD END MISALIGNMENT ANGLE |
ROD END MISALIGNMENT ANGLE |
| 24 degrees |
24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) |
ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs |
13,739 kg |
| ROD END MATERIAL |
ROD END MATERIAL |
| Chromoly |
Chromoly |
| LUBRICATION |
LUBRICATION |
| PTFE lined |
PTFE lined |
Suits
- Toyota 86 ZN6 (2012–2021), FA20
- Subaru BRZ ZC6 (2012–2021), FA20
- Toyota GR86 ZN8 (2021–on), FA24
- Subaru BRZ ZD8 (2021–on), FA24
